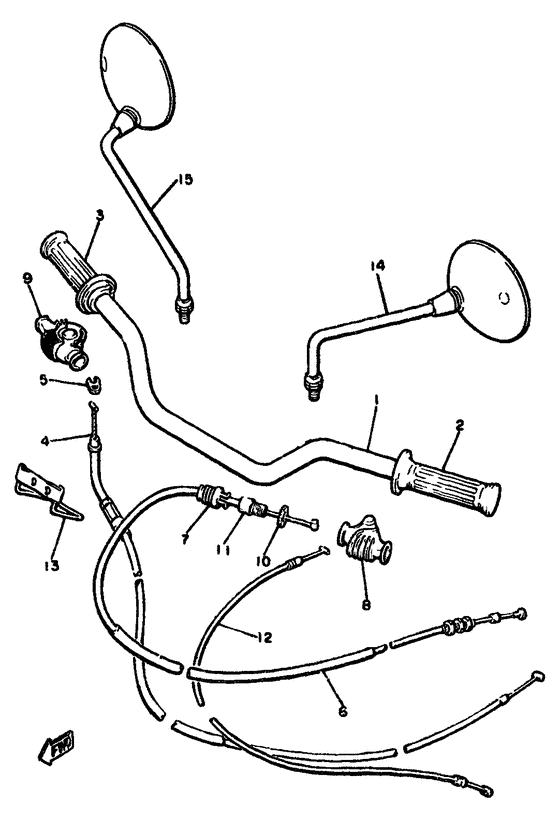

Handlebar. cable Diagram Yamaha XJ650
- Year
- 1980
- Model code
- 4K0
- Sales region
- Europe (General) (999)
- Engine Capacity
- 650
- Model
- XJ650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T5-26111-00-00
Handlebar
|
1T5-26111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
1JN-26111-01-00 Handle Bar |
1JN-26111-01-00 |
from US $104.70 |
||
|
2
|
2
2H7-26241-00-00 Grip Lh |
2H7-26241-00-00 |
from US $11.33 |
||
| replacement | |||||
|
2
|
2
2H7-26241-01-00 |
2H7-26241-01-00 |
from US $11.33 |
||
|
3
|
3
2H7-26240-00-00 Grip Assy, Rh |
2H7-26240-00-00 |
from US $17.60 |
||
| replacement | |||||
|
3
|
3
2H7-26240-01-00 |
2H7-26240-01-00 |
US $20.47 |
||
|
4
|
4
4K0-26311-00-00 Cable, Throttle 1 |
4K0-26311-00-00 |
US $44.30 |
||
|
5
|
5
584-26393-01-00 Holder |
584-26393-01-00 |
US $3.40 |
||
| replacement | |||||
|
5
|
5
584-26393-02-00 Holder, Wire Guide |
584-26393-02-00 |
from US $3.40 |
||
|
6
|
6
4K0-26335-00-00 Cable, clutch |
4K0-26335-00-00 |
from US $48.83 |
||
| replacement | |||||
|
6
|
6
55U-26335-01-00 Cable, clutch |
55U-26335-01-00 |
from US $50.29 |
||
|
7
|
7
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
8
|
8
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
9
|
9
1T5-26372-00-00 Cover, Handle Lever 1 |
1T5-26372-00-00 |
from US $14.29 |
||
|
10
|
10
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
10
|
10
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
11
|
11
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
11
|
11
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
12
|
12
4K0-26331-00-00
Cable, Starter 1
|
4K0-26331-00-00 |
— | ||
| replacement | |||||
|
12
|
12
5H1-26331-00-00
Cable, Starter 1
|
5H1-26331-00-00 |
— | ||
|
13
|
13
4K0-26399-01-00
Guide, Cable
|
4K0-26399-01-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
1J7-26290-A0-00 Back Mirror Assy (Left)Back mirror ass`y,left |
1J7-26290-A0-00 |
US $63.97 |
||
| replacements | |||||
|
14
|
14
1J7-26290-H0-00 Rear View Mirror Assy (Left) |
1J7-26290-H0-00 |
US $37.29 |
||
|
14
|
14
1J7-26290-F1-00 Back Mirror Assy(Left) |
1J7-26290-F1-00 |
US $37.29 |
||
|
15
|
15
1J7-26290-E0-00 Rear View Mirror Assy (Right)Rear view mirror assy (right) |
1J7-26290-E0-00 |
US $63.97 |
||
| replacements | |||||
|
15
|
15
1J7-26290-J0-00 Rear View Mirror Assy (Right) |
1J7-26290-J0-00 |
US $37.29 |
||
|
15
|
15
1J7-26290-G1-00 Back Mirror Assy (Right) |
1J7-26290-G1-00 |
US $37.29 |
||
