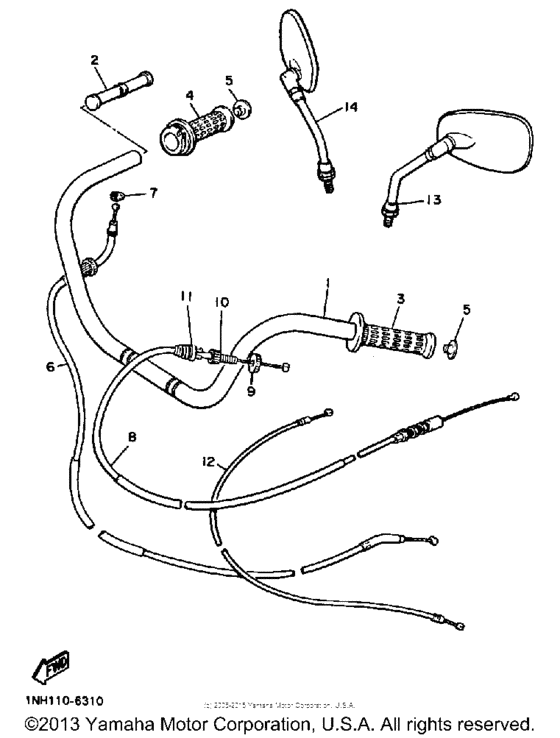

Handlebar cable Diagram Yamaha XJ700 Maxim
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 700
- Model
- XJ700
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1AA-26111-00-00
Handlebar
|
1AA-26111-00-00 |
— | ||
|
2
|
2
3F9-W2612-00-00
Weight
|
3F9-W2612-00-00 |
— | ||
|
3
|
3
42X-26241-00-00 Grip LhLH |
42X-26241-00-00 |
from US $50.70 |
||
|
4
|
4
42X-26240-00-00 Grip Assembly |
42X-26240-00-00 |
US $75.85 |
||
|
5
|
5
26H-2628J-00-00 Cap, Grip |
26H-2628J-00-00 |
from US $10.31 |
||
|
6
|
6
1FG-26311-00-00 Cable, Throttle 1 |
1FG-26311-00-00 |
from US $44.32 |
||
|
7
|
7
5H0-26393-00-00 Holder |
5H0-26393-00-00 |
from US $3.47 |
||
|
8
|
8
1AA-26335-00-00 Cable, clutch |
1AA-26335-00-00 |
from US $44.76 |
||
|
9
|
9
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
9
|
9
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
10
|
10
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
10
|
10
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
11
|
11
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
12
|
12
1FG-26331-00-00
Cable, Starter 1
|
1FG-26331-00-00 |
— | ||
|
13
|
13
1AA-26280-02-00
Rear View Mirror Assy (Left)
|
1AA-26280-02-00 |
— | ||
| replacement | |||||
|
13
|
13
1AA-26280-10-00 Rear View Mirror Assy (Left) |
1AA-26280-10-00 |
from US $67.73 |
||
|
14
|
14
1AA-26290-02-00
Rear View Mirror Assy (Right)
|
1AA-26290-02-00 |
— | ||
| replacement | |||||
|
14
|
14
1AA-26290-10-00 Rear View Mirror Assy (Right) |
1AA-26290-10-00 |
from US $70.46 |
||
