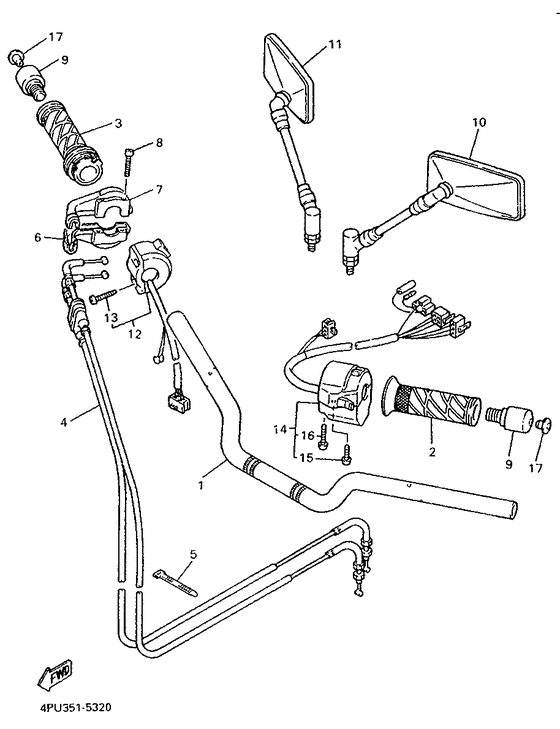

Steering handle & cable Diagram Yamaha XJR1200
- Year
- 1995
- Colour
- Deep Red Cocktail 2 (DRC2; 0376)
- Model code
- 4PU2
- Sales region
- Spain (999)
- Engine Capacity
- 1200
- Model
- XJR1200
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4KG-26111-00-00
Handlebar
|
4KG-26111-00-00 |
— | ||
| replacement | |||||
|
01
|
01
4KG-26111-09-00
Handlebars
|
4KG-26111-09-00 |
— | ||
|
02
|
02
4FM-26241-00-00 Grip |
4FM-26241-00-00 |
from US $31.23 |
||
| replacement | |||||
|
02
|
02
4FM-26241-01-00 Grip (Left) |
4FM-26241-01-00 |
from US $32.78 |
||
|
03
|
03
4FM-26240-00-00 Grip Assy |
4FM-26240-00-00 |
from US $48.34 |
||
| replacement | |||||
|
03
|
03
4FM-26240-01-00 Grip Assy |
4FM-26240-01-00 |
from US $48.34 |
||
|
04
|
04
4KG-26302-00-00 Throttle Cable Assy |
4KG-26302-00-00 |
US $105 |
||
|
05
|
05
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
05
|
05
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
06
|
06
4KG-26281-00-00 Cap Grip |
4KG-26281-00-00 |
from US $27.61 |
||
|
07
|
07
3XW-26282-01-00 Cap, Grip Under |
3XW-26282-01-00 |
from US $13.48 |
||
|
08
|
08
91317-05035-00 Bolt |
91317-05035-00 |
from US $1.56 |
||
|
09
|
09
3HX-26246-00-00 End, Grip |
3HX-26246-00-00 |
from US $32.46 |
||
|
10
|
10
4H7-26290-A0-00
Rear View Mirror Assy (Right)
|
4H7-26290-A0-00 |
— | ||
| replacement | |||||
|
10
|
10
4H7-26290-F0-00 Rear View Mirror Assy (Left) |
4H7-26290-F0-00 |
US $59.82 |
||
|
11
|
11
4H7-26290-E0-00
Rear View Mirror Assy (Right)
|
4H7-26290-E0-00 |
— | ||
| replacement | |||||
|
11
|
11
4H7-26290-G0-00 Rear View Mirror Assy (Right) |
4H7-26290-G0-00 |
US $59.82 |
||
|
12
|
12
4HM-83975-10-00 Switch, Handle 2 |
4HM-83975-10-00 |
US $145.07 |
||
| replacement | |||||
|
12
|
12
4HM-83975-11-00 Switch, Handle 2 |
4HM-83975-11-00 |
from US $82.84 |
||
|
13
|
13
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
13
|
13
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
14
|
14
4PU-83969-00-00
Switch, Handle 5
|
4PU-83969-00-00 |
— | ||
|
15
|
15
985-07050-30-00
Screw, Pan Head
|
985-07050-30-00 |
— | ||
| replacement | |||||
|
15
|
15
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
16
|
16
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
17
|
17
4X7-23469-10-00 Cap, Bolt |
4X7-23469-10-00 |
from US $7.81 |
||
