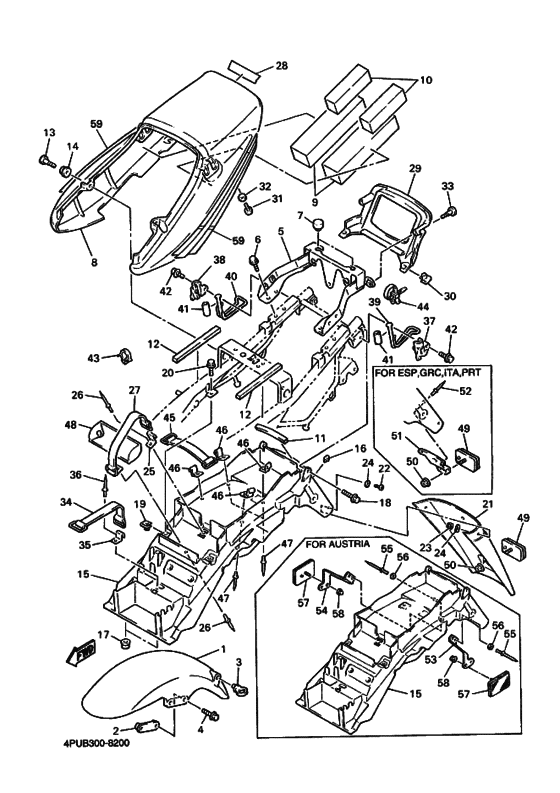

Fender Diagram Yamaha XJR1200
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4PUB
- Sales region
- Europe (050)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- XJR1200SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KG-21511-00-P5 Fender, FrontDPBMC |
4KG-21511-00-P5 |
US $107.71 |
||
| replacement | |||||
|
1
|
1
4KG-21511-01-P5 Fender, FrontDPBMC |
4KG-21511-01-P5 |
US $107.71 |
||
|
2
|
2
4KG-21512-00-00 Bracket, Fender |
4KG-21512-00-00 |
US $32.60 |
||
|
3
|
3
1A8-21518-00-00 Holder, Cable |
1A8-21518-00-00 |
from US $4.53 |
||
|
4
|
4
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.66 |
||
|
5
|
5
4PU-2117E-00-00
Bracket, Taillight
|
4PU-2117E-00-00 |
— | ||
|
6
|
6
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
7
|
7
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.36 |
||
|
8
|
8
4KG-21651-10-P3
Cover, Rear Fender
DPBMC |
4KG-21651-10-P3 |
— | ||
|
9
|
9
4KG-21779-00-00
Damper, Locating 2
|
4KG-21779-00-00 |
— | ||
|
10
|
10
4KG-21778-00-00 Damper, Locating 1 |
4KG-21778-00-00 |
US $7.08 |
||
|
11
|
11
4KG-2177N-00-00
Damper, Locating 4
|
4KG-2177N-00-00 |
— | ||
|
12
|
12
4HM-2139X-00-00 Damper |
4HM-2139X-00-00 |
US $2.91 |
||
|
13
|
13
90150-06036-00 Screw, Round Head |
90150-06036-00 |
from US $2.08 |
||
|
14
|
14
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
|
15
|
15
4PU-21611-00-00
Fender, Rear
UR |
4PU-21611-00-00 |
— | ||
|
16
|
16
4G0-21639-00-00 Damper 2 |
4G0-21639-00-00 |
from US $2.41 |
||
| replacement | |||||
|
16
|
16
903-38070-18-00 Plug |
903-38070-18-00 |
from US $4.82 |
||
|
17
|
17
90480-13369-00 Grommet |
90480-13369-00 |
from US $2.50 |
||
| replacements | |||||
|
17
|
17
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.36 |
||
|
17
|
17
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
|
18
|
18
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.66 |
||
|
19
|
19
901-83060-53-00
Nut, Spring
|
901-83060-53-00 |
— | ||
| replacement | |||||
|
19
|
19
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.72 |
||
|
20
|
20
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
20
|
20
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
21
|
21
3GM-21621-00-00
Flap
|
3GM-21621-00-00 |
— | ||
|
22
|
22
90149-04278-00 Screw |
90149-04278-00 |
from US $1.70 |
||
|
23
|
23
95607-04100-00 Nut, U |
95607-04100-00 |
from US $4.25 |
||
| replacement | |||||
|
23
|
23
956-17041-00-00 Nut, U |
956-17041-00-00 |
from US $4.25 |
||
|
24
|
24
90201-04018-00 Washer (4Fm) |
90201-04018-00 |
from US $1.80 |
||
| replacement | |||||
|
24
|
24
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
25
|
25
4HM-2162A-00-00 Hook |
4HM-2162A-00-00 |
from US $5.24 |
||
|
26
|
26
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
27
|
27
4HM-82131-00-00 Band, Battery |
4HM-82131-00-00 |
from US $10.75 |
||
|
28
|
28
992-31001-00-00
Emblem, Yamaha
|
992-31001-00-00 |
— | ||
| replacement | |||||
|
28
|
28
992-41001-00-00 Emblem, Yamaha |
992-41001-00-00 |
from US $5.85 |
||
|
29
|
29
4PU-2163F-00-00
Cover, Rear Fender 3
|
4PU-2163F-00-00 |
— | ||
|
30
|
30
90183-05061-00 Nut, Spring |
90183-05061-00 |
from US $3.33 |
||
|
31
|
31
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
32
|
32
90202-06113-00 Washer, Plate |
90202-06113-00 |
from US $1.42 |
||
|
33
|
33
90154-05059-00 Screw, Binding |
90154-05059-00 |
from US $1.70 |
||
|
34
|
34
4J2-82131-01-00 Band, Battery |
4J2-82131-01-00 |
from US $13.74 |
||
|
35
|
35
4HM-2162A-00-00 Hook |
4HM-2162A-00-00 |
from US $5.24 |
||
|
36
|
36
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
37
|
37
4KG-21331-00-00 Hook, Side Cover 1 |
4KG-21331-00-00 |
US $9.92 |
||
| replacement | |||||
|
37
|
37
4KG-21331-10-00 Hook, Side Cover 1 |
4KG-21331-10-00 |
US $9.92 |
||
|
38
|
38
4KG-21332-00-00 Hook, Side Cover 2 |
4KG-21332-00-00 |
US $9.21 |
||
| replacement | |||||
|
38
|
38
4KG-21332-10-00 Hook, Side Cover 2 |
4KG-21332-10-00 |
US $9.21 |
||
|
39
|
39
5AE-21654-00-00
Wire
|
5AE-21654-00-00 |
— | ||
|
40
|
40
5EA-21664-00-00 Wire, 2 |
5EA-21664-00-00 |
US $25.36 |
||
|
41
|
41
4KG-21639-00-00 Damper 2 |
4KG-21639-00-00 |
US $12.47 |
||
|
42
|
42
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
42
|
42
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
43
|
43
90464-15157-00 Clamp |
90464-15157-00 |
from US $1.81 |
||
|
44
|
44
90464-12036-00 Clamp |
90464-12036-00 |
from US $1.39 |
||
| replacement | |||||
|
44
|
44
90464-10112-00 Clamp |
90464-10112-00 |
from US $1.39 |
||
|
45
|
45
120-82131-00-00
Band, Battery
|
120-82131-00-00 |
— | ||
| replacement | |||||
|
45
|
45
7H3-82131-00-00 Band, Battery |
7H3-82131-00-00 |
from US $5.06 |
||
|
46
|
46
36F-28379-00-00 Hook |
36F-28379-00-00 |
from US $4.39 |
||
|
47
|
47
90267-40076-00 Rivet, Blind |
90267-40076-00 |
from US $1.84 |
||
|
48
|
48
3SX-28100-00-00 Tool Kit (48Y-28100-00-00) |
3SX-28100-00-00 |
US $148.07 |
||
| replacement | |||||
|
48
|
48
1LN-W2810-01-00
Tool Kit (48Y-28100-00-00)
|
1LN-W2810-01-00 |
— | ||
|
49
|
49
4KM-85130-00-00 Rear Reflector Assy |
4KM-85130-00-00 |
from US $13.18 |
||
|
50
|
50
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
51
|
51
4KG-85132-00-00 Bracket, Reflector 1FOR ESP.FRC,ITA,PRT |
4KG-85132-00-00 |
US $13.74 |
||
|
52
|
52
90267-40076-00 Rivet, BlindFOR ESP,GRC,ITA,PRT |
90267-40076-00 |
from US $1.84 |
||
|
59
|
59
4PU-21660-00-00
Graphic
|
4PU-21660-00-00 |
— | ||
