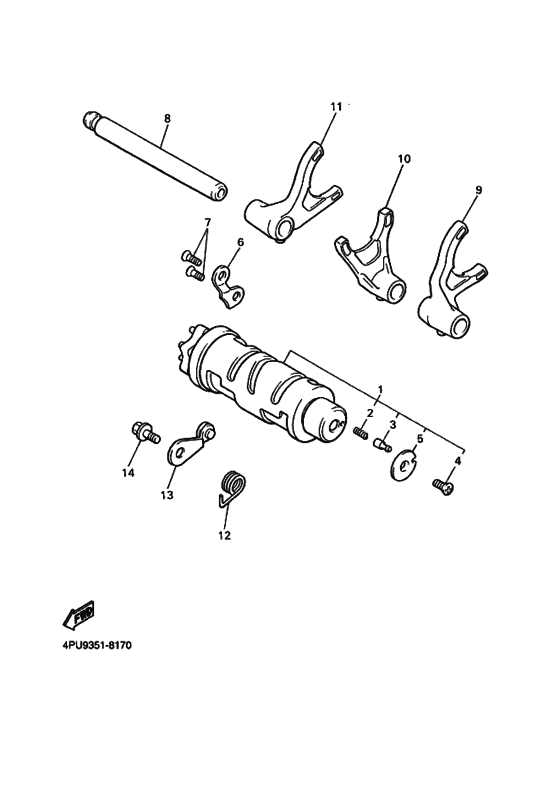

Shift Cam & Fork Diagram Yamaha XJR1200
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4PUB
- Sales region
- Europe (050)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- XJR1200SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3XW-18540-01-00
Shift Cam Assy
|
3XW-18540-01-00 |
— | ||
| replacement | |||||
|
1
|
1
3XW-18540-02-00
Shift Cam Assy
|
3XW-18540-02-00 |
— | ||
|
2
|
2
90501-06022-00 Spring, Compression |
90501-06022-00 |
from US $1.70 |
||
|
3
|
3
4UN-18542-00-00 Point, Neutral |
4UN-18542-00-00 |
from US $1.94 |
||
|
4
|
4
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $2.21 |
||
|
5
|
5
4UN-18566-00-00 Plate, Side 2 |
4UN-18566-00-00 |
from US $2.41 |
||
|
6
|
6
36Y-18562-00-00 Plate, Stopper 2 |
36Y-18562-00-00 |
US $15.82 |
||
|
7
|
7
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
|
8
|
8
4BR-18531-00-00 Bar, Shift Fork Guide 1 |
4BR-18531-00-00 |
from US $22.30 |
||
|
9
|
9
3XW-18511-00-00 Fork, Shift 1 |
3XW-18511-00-00 |
from US $63.69 |
||
|
10
|
10
4KG-18512-00-00 Fork, Shift 2 |
4KG-18512-00-00 |
from US $71.15 |
||
|
11
|
11
3XW-18513-00-00 Fork, Shift 3 |
3XW-18513-00-00 |
from US $73.92 |
||
|
12
|
12
90508-23707-00
Spring, Torsion
|
90508-23707-00 |
— | ||
|
13
|
13
36Y-18140-00-00 Stopper Lever Assy |
36Y-18140-00-00 |
from US $16.55 |
||
|
14
|
14
90109-063F7-00 Bolt |
90109-063F7-00 |
from US $2.45 |
||
| replacement | |||||
|
14
|
14
90109-06190-00 Bolt |
90109-06190-00 |
from US $2.45 |
||
