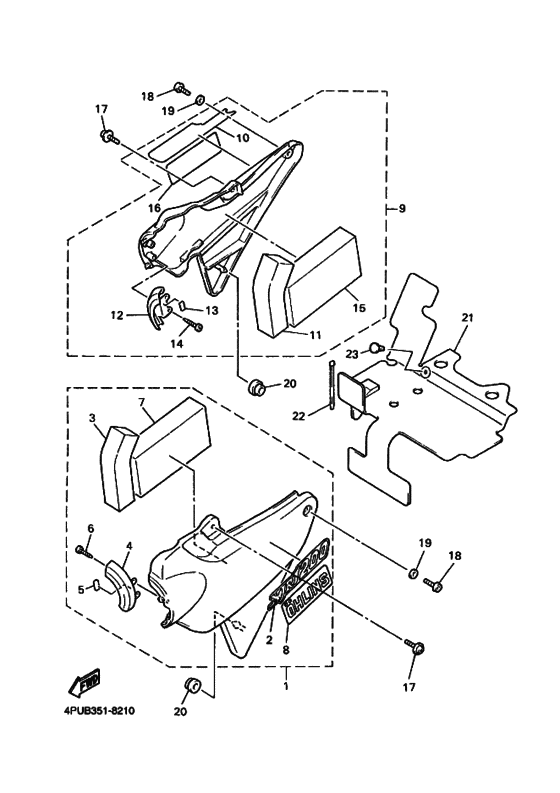

Side cover Diagram Yamaha XJR1200
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4PUB
- Sales region
- Europe (050)
- Engine Capacity
- 1200
- Color Variant
- A
- Model
- XJR1200SP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4KG-Y2171-40-0X
Cover, Side 1
BL2 |
4KG-Y2171-40-0X |
— | ||
|
2
|
2
4KG-21781-00-00
Emblem 1
|
4KG-21781-00-00 |
— | ||
|
3
|
3
4KG-21717-00-00
Damper
|
4KG-21717-00-00 |
— | ||
|
4
|
4
4KG-2172A-00-00
Panel 1
|
4KG-2172A-00-00 |
— | ||
|
5
|
5
51Y-21639-00-00 Damper 2 |
51Y-21639-00-00 |
from US $1.84 |
||
|
6
|
6
97707-50510-00 Screw, Tapping |
97707-50510-00 |
from US $1.15 |
||
| replacement | |||||
|
6
|
6
977-07506-10-00 Screw, Tapping |
977-07506-10-00 |
from US $1.15 |
||
|
7
|
7
4KG-21746-00-00 Damper |
4KG-21746-00-00 |
US $14.45 |
||
|
8
|
8
4HD-2218A-00-00 Emblem, Rear Arm |
4HD-2218A-00-00 |
US $8.22 |
||
|
9
|
9
4KG-Y2172-40-0X
Cover, Side 2
BL2 |
4KG-Y2172-40-0X |
— | ||
|
10
|
10
4KG-21782-00-00
Emblem 2
|
4KG-21782-00-00 |
— | ||
|
11
|
11
4KG-21717-00-00
Damper
|
4KG-21717-00-00 |
— | ||
|
12
|
12
4KG-2172F-00-00
Panel 2
|
4KG-2172F-00-00 |
— | ||
|
13
|
13
51Y-21639-00-00 Damper 2 |
51Y-21639-00-00 |
from US $1.84 |
||
|
14
|
14
97707-50510-00 Screw, Tapping |
97707-50510-00 |
from US $1.15 |
||
| replacement | |||||
|
14
|
14
977-07506-10-00 Screw, Tapping |
977-07506-10-00 |
from US $1.15 |
||
|
15
|
15
4KG-21746-00-00 Damper |
4KG-21746-00-00 |
US $14.45 |
||
|
16
|
16
4HD-2218A-00-00 Emblem, Rear Arm |
4HD-2218A-00-00 |
US $8.22 |
||
|
17
|
17
90159-06059-00 Screw, With Washer |
90159-06059-00 |
from US $3.68 |
||
| replacement | |||||
|
17
|
17
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.66 |
||
|
18
|
18
901-49062-98-00 Screw |
901-49062-98-00 |
from US $1.81 |
||
|
19
|
19
90202-06113-00 Washer, Plate |
90202-06113-00 |
from US $1.42 |
||
|
20
|
20
904-80015-58-00 Grommet |
904-80015-58-00 |
from US $1.66 |
||
|
21
|
21
4KG-21732-00-00
Seal 1
|
4KG-21732-00-00 |
— | ||
| replacement | |||||
|
21
|
21
5EA-21732-10-00
Seal 1
|
5EA-21732-10-00 |
— | ||
|
22
|
22
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
22
|
22
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
23
|
23
90338-06233-00 Plug (3Vd) |
90338-06233-00 |
from US $1.42 |
||
