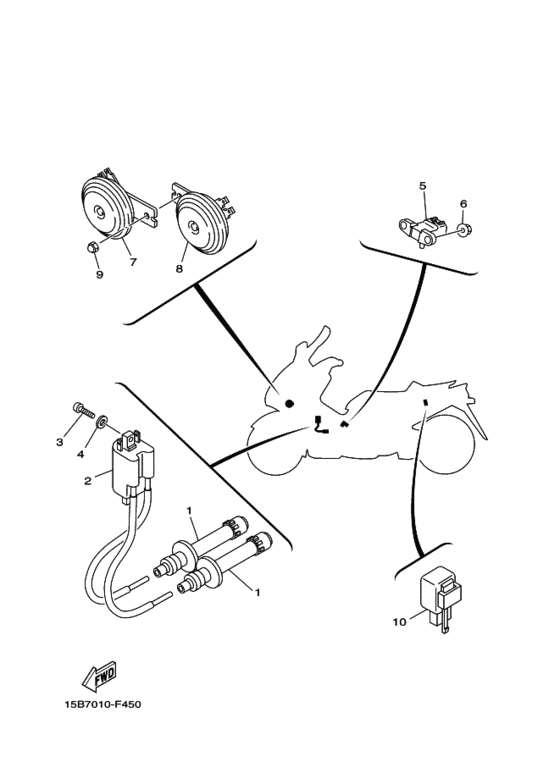

Electrical 2 Diagram Yamaha XP500 T-MAX Special Edition
- Year
- 2007
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 15B8
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- A
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VU-82370-00-00 Plug Cap Assy |
5VU-82370-00-00 |
from US $48.49 |
||
|
2
|
2
5GJ-82310-00-00
Ignition Coil Assy
|
5GJ-82310-00-00 |
— | ||
|
3
|
3
92502-06020-00 Screw, Pan Head |
92502-06020-00 |
US $1.07 |
||
| replacement | |||||
|
3
|
3
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
4
|
4
92902-06600-00 Washer, Plateワツシヤ，プレート; |
92902-06600-00 |
US $1.07 |
||
| replacement | |||||
|
4
|
4
929-90066-00-00 Washer, Plain (646)ワツシヤ，プレート; |
929-90066-00-00 |
from US $1.18 |
||
|
5
|
5
5PS-82380-00-00 Sensor, Pressureセンサー，プレツシヤー; |
5PS-82380-00-00 |
from US $163.03 |
||
|
6
|
6
90179-06033-00 Nut |
90179-06033-00 |
from US $1.70 |
||
|
7
|
7
5GJ-83371-20-00 Hornホーン; （＊１） |
5GJ-83371-20-00 |
US $54.85 |
||
|
8
|
8
5GJ-83371-30-00 Hornホーン; |
5GJ-83371-30-00 |
US $54.85 |
||
|
9
|
9
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.66 |
||
|
10
|
10
3GM-83350-01-00
Flasher Relay Assy
フラツシヤリレーアセンブリ; |
3GM-83350-01-00 |
— | ||
| replacements | |||||
|
10
|
10
3GM-83350-02-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
3GM-83350-02-00 |
from US $51.67 |
||
|
10
|
10
3GM-83350-03-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
3GM-83350-03-00 |
US $93.53 |
||
