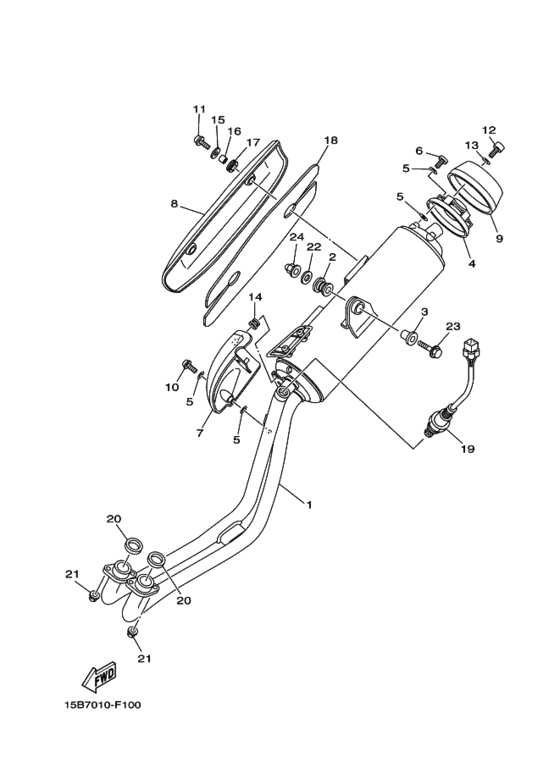

Exhaust Diagram Yamaha XP500 T-MAX Special Edition
- Year
- 2007
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 15B8
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- A
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5VU-14710-10-00 Muffler Assy 1マフラーアセンブリ １; |
5VU-14710-10-00 |
US $761.74 |
||
|
2
|
2
36Y-27424-01-00 Damper, Footrest 2ダンパ，フートレスト ２; |
36Y-27424-01-00 |
from US $6.24 |
||
|
3
|
3
90387-10046-00 Collarカラー; |
90387-10046-00 |
from US $5.67 |
||
|
4
|
4
5GJ-14629-00-00 Stay, Protectorステー，プロテクタ; |
5GJ-14629-00-00 |
from US $48.91 |
||
|
5
|
5
4BD-14766-00-00 Washer, Protector |
4BD-14766-00-00 |
from US $2.09 |
||
|
6
|
6
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.39 |
||
| replacement | |||||
|
6
|
6
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.18 |
||
|
7
|
7
5VU-1465R-00-00 Plate, Protector 1 |
5VU-1465R-00-00 |
US $147.83 |
||
|
8
|
8
5VU-1465T-00-00 Plate, Protectorプレート，プロテクタ; |
5VU-1465T-00-00 |
from US $168.56 |
||
|
9
|
9
5GJ-14799-01-00 Cap |
5GJ-14799-01-00 |
US $115.64 |
||
|
10
|
10
90111-06020-00 Bolt,hex. Socket Button |
90111-06020-00 |
from US $2.13 |
||
|
11
|
11
90111-06015-00 Bolt,hex. Socket Button |
90111-06015-00 |
from US $1.56 |
||
|
12
|
12
91380-06016-00 Boltボルト; |
91380-06016-00 |
from US $1.42 |
||
|
13
|
13
92990-06200-00 Washer, Plainワツシヤ，プレーン; |
92990-06200-00 |
from US $1.18 |
||
|
14
|
14
90480-10332-00 Grommet |
90480-10332-00 |
from US $2.08 |
||
| replacement | |||||
|
14
|
14
904-80100-17-00 Grommet |
904-80100-17-00 |
from US $2.08 |
||
|
15
|
15
90201-062G3-00 Washer, Plateワツシヤ，プレート; |
90201-062G3-00 |
US $1.70 |
||
| replacement | |||||
|
15
|
15
90201-06049-00 Washer, Plateワツシヤ，プレート; |
90201-06049-00 |
from US $1.70 |
||
|
16
|
16
90387-06023-00 Collar 8121444900カラー; |
90387-06023-00 |
from US $1.28 |
||
|
17
|
17
90480-12581-00 Grommet |
90480-12581-00 |
from US $7.79 |
||
|
18
|
18
5VU-1465U-00-00 Plate, Protector 3プレート，プロテクタ ３; |
5VU-1465U-00-00 |
from US $53.47 |
||
|
19
|
19
5VU-8592A-10-00 Sensor, Oxygen |
5VU-8592A-10-00 |
US $152.03 |
||
|
20
|
20
4BR-14613-00-00 Gasket, Exhaust Pipeガスケツト，エキゾーストパイプ; |
4BR-14613-00-00 |
from US $7.63 |
||
|
21
|
21
95602-08200-00 Nut, U Flangeナツト，セルフロツキング; |
95602-08200-00 |
from US $1.84 |
||
| replacement | |||||
|
21
|
21
901-85081-69-00 Nut, Self-Lockingナツト，セルフロツキング; |
901-85081-69-00 |
from US $2.35 |
||
|
22
|
22
90201-10043-00 Washer, Plateワツシヤ，プレート; |
90201-10043-00 |
from US $1.66 |
||
|
23
|
23
95812-10040-00 Bolt, Flange |
95812-10040-00 |
from US $1.45 |
||
|
24
|
24
90176-10075-00 Nut, Crownナツト，クラウン; |
90176-10075-00 |
from US $5.41 |
||
