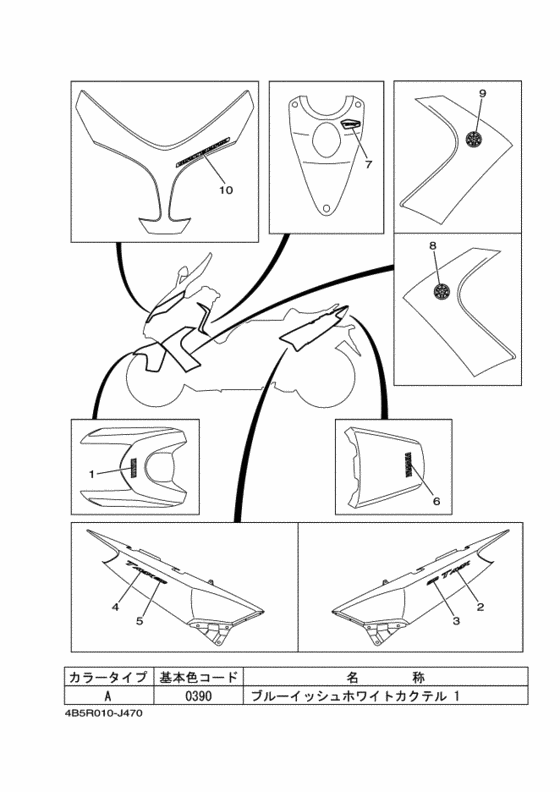

Graphic & Emblem Diagram Yamaha XP500 T-MAX
- Year
- 2010
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 4B5R
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- A
- Model
- XP500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3WF-2153E-60-00
Emblem, Yamaha
|
3WF-2153E-60-00 |
— | ||
| replacement | |||||
|
1
|
1
3WF-2153E-61-00 EMBLEM, YAMAHA |
3WF-2153E-61-00 |
from US $3.72 |
||
|
2
|
2
5GJ-2173B-20-00 Emblem 3D (Tmax) |
5GJ-2173B-20-00 |
from US $51.53 |
||
|
3
|
3
4B5-2173D-00-00 Emblem 3D |
4B5-2173D-00-00 |
US $28.62 |
||
|
4
|
4
5GJ-2173B-20-00 Emblem 3D (Tmax) |
5GJ-2173B-20-00 |
from US $51.53 |
||
|
5
|
5
4B5-2173D-00-00 Emblem 3D |
4B5-2173D-00-00 |
US $28.62 |
||
|
6
|
6
992-46000-80-00 Emblem (YAMAHA) |
992-46000-80-00 |
from US $9.15 |
||
|
7
|
7
4B5-2839B-00-00 Emblem 3D |
4B5-2839B-00-00 |
US $26.87 |
||
|
8
|
8
5PW-2413B-00-00 Emblem |
5PW-2413B-00-00 |
from US $27.34 |
||
|
9
|
9
5PW-2413B-00-00 Emblem |
5PW-2413B-00-00 |
from US $27.34 |
||
|
10
|
10
4B5-28315-00-00 Emblem |
4B5-28315-00-00 |
US $7.51 |
||
