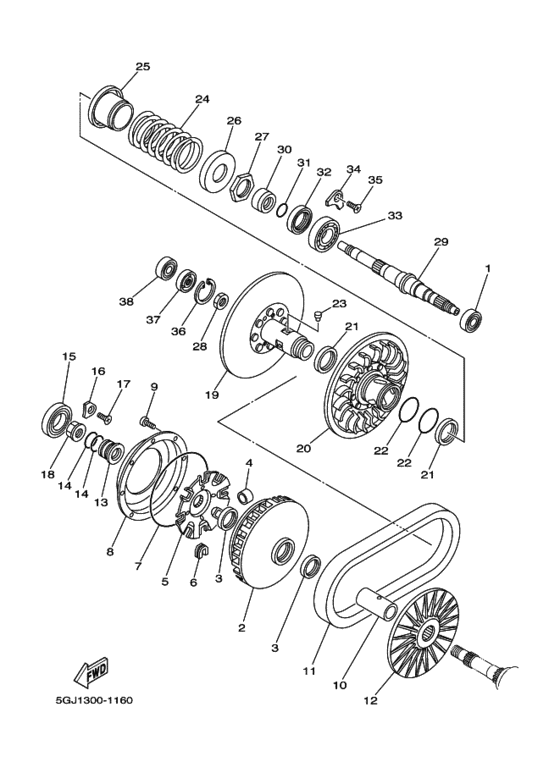

Clutch 2 Diagram Yamaha XP500 T-MAX
- Year
- 2001
- Colour
- Calm Yellow (CMY; 00AL)
- Model code
- 5GJ4
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- A
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
933-06301-02-00 Bearingベアリング ; Ｂ６３０１ |
933-06301-02-00 |
from US $12.75 |
||
|
2
|
2
5GJ-17620-10-00 Primary Sliding Sheave Compプライマリスライデイングシーブコンプリート; |
5GJ-17620-10-00 |
US $185.13 |
||
|
3
|
3
931-01350-01-00 Oil Sealオイルシール; |
931-01350-01-00 |
from US $9.98 |
||
|
4
|
4
5GJ-17632-10-00 Weight |
5GJ-17632-10-00 |
US $13.32 |
||
|
5
|
5
5GJ-17623-00-00 Cam |
5GJ-17623-00-00 |
US $46.15 |
||
|
6
|
6
5GJ-17653-00-00 Slider |
5GJ-17653-00-00 |
US $4.25 |
||
|
7
|
7
93211-44348-00 O-Ring |
93211-44348-00 |
from US $13.45 |
||
|
8
|
8
5GJ-17639-00-00
Stopper
|
5GJ-17639-00-00 |
— | ||
|
9
|
9
90111-05012-00 Bolt, Hex. Socket Buttonボルト; |
90111-05012-00 |
from US $1.84 |
||
| replacement | |||||
|
9
|
9
92017-05012-00 Bolt, Buttonボルト; |
92017-05012-00 |
from US $1.56 |
||
|
10
|
10
5GJ-17645-00-00 Collarカラー; |
5GJ-17645-00-00 |
US $76.44 |
||
|
11
|
11
5GJ-17641-00-00 V-Belt |
5GJ-17641-00-00 |
US $155.77 |
||
|
12
|
12
5GJ-17611-00-00 Sheave, Primary Fixedシーブ，プライマリフイツクス; |
5GJ-17611-00-00 |
US $113.43 |
||
|
13
|
13
5GJ-17649-00-00 Spacerスペーサ; |
5GJ-17649-00-00 |
from US $65.49 |
||
|
14
|
14
93210-30611-00 O-RingＯ−リング; |
93210-30611-00 |
from US $6.06 |
||
|
15
|
15
93306-00708-00 Bearing |
93306-00708-00 |
from US $45.24 |
||
|
16
|
16
4XM-15383-00-00 Plate, Bearing Coverプレート，ベアリングカバー; |
4XM-15383-00-00 |
from US $9.07 |
||
|
17
|
17
90151-06001-00 Screw, Countersunk |
90151-06001-00 |
from US $2.13 |
||
| replacement | |||||
|
17
|
17
901-51060-14-00 Screw, Countersunk (4H7) |
901-51060-14-00 |
from US $2.35 |
||
|
18
|
18
90179-20002-00 Nut |
90179-20002-00 |
US $18.42 |
||
| replacement | |||||
|
18
|
18
90179-20013-00 Nut |
90179-20013-00 |
from US $18.42 |
||
|
19
|
19
5GJ-17660-00-00 Secondary Fixed Sheave Compセカンダリフイクストシーブコンプリート; |
5GJ-17660-00-00 |
US $446.03 |
||
|
20
|
20
5GJ-17670-00-00 Secondary Sliding Sheaveセカンダリスライデイングシーブコンプリート; |
5GJ-17670-00-00 |
US $204.48 |
||
| replacement | |||||
|
20
|
20
5GJ-17670-01-00 Secondary Sliding Sheaveセカンダリスライデイングシーブコンプリート; |
5GJ-17670-01-00 |
from US $204.48 |
||
|
21
|
21
93104-41119-00 Oil Sealオイルシール; |
93104-41119-00 |
from US $11.52 |
||
|
22
|
22
932-10445-45-00 O-RingＯ−リング; |
932-10445-45-00 |
from US $7.07 |
||
|
23
|
23
4CW-17664-00-00 Pin, Guide |
4CW-17664-00-00 |
from US $2.02 |
||
|
24
|
24
90501-626L9-00 Spring, Compression |
90501-626L9-00 |
from US $34.29 |
||
|
25
|
25
5GJ-17690-00-00 Spring Seat Comp |
5GJ-17690-00-00 |
from US $30.18 |
||
|
26
|
26
4WV-17644-00-00 Seat,springシート，スプリング; |
4WV-17644-00-00 |
from US $8.93 |
||
|
27
|
27
90170-36279-00 Nut |
90170-36279-00 |
from US $5.81 |
||
|
28
|
28
90170-18221-00 Nut |
90170-18221-00 |
from US $9.07 |
||
|
29
|
29
5GJ-17681-00-00
Shaft, Secondary
５ＧＪ８：〜ＳＪ０２Ｊ−００２１８３ |
5GJ-17681-00-00 |
— | ||
| replacement | |||||
|
29
|
29
5GJ-17681-20-00
Shaft, Secondary
５ＧＪ８：〜ＳＪ０２Ｊ−００２１８３ |
5GJ-17681-20-00 |
— | ||
|
30
|
30
90387-26001-00 Collarカラー; |
90387-26001-00 |
from US $19.41 |
||
|
31
|
31
932-10260-01-00 O-Ring |
932-10260-01-00 |
from US $6.80 |
||
|
32
|
32
931-02420-04-00 Oil Sealオイルシール; |
931-02420-04-00 |
from US $25.39 |
||
|
33
|
33
93306-20647-00
Bearing
|
93306-20647-00 |
— | ||
|
34
|
34
5GJ-15383-00-00 Plate, Bearing Coverプレート，ベアリングカバー; |
5GJ-15383-00-00 |
from US $4.11 |
||
|
35
|
35
90110-06036-00 Bolt, Hexagon Socket Head |
90110-06036-00 |
from US $1.98 |
||
| replacement | |||||
|
35
|
35
90110-06037-00 Bolt, Hexagon Socket Head |
90110-06037-00 |
from US $1.98 |
||
|
36
|
36
990-09425-00-00 Circlipサークリツプ; |
990-09425-00-00 |
from US $1.66 |
||
|
37
|
37
93102-15004-00 Oil Sealオイルシール; |
93102-15004-00 |
from US $7.99 |
||
|
38
|
38
93306-30206-00 Bearingベアリング ; Ｂ６３０２ＺＺ |
93306-30206-00 |
from US $20.25 |
||
| replacement | |||||
|
38
|
38
93306-30212-00 Bearingベアリング ; Ｂ６３０２ＺＺ |
93306-30212-00 |
from US $16.84 |
||
