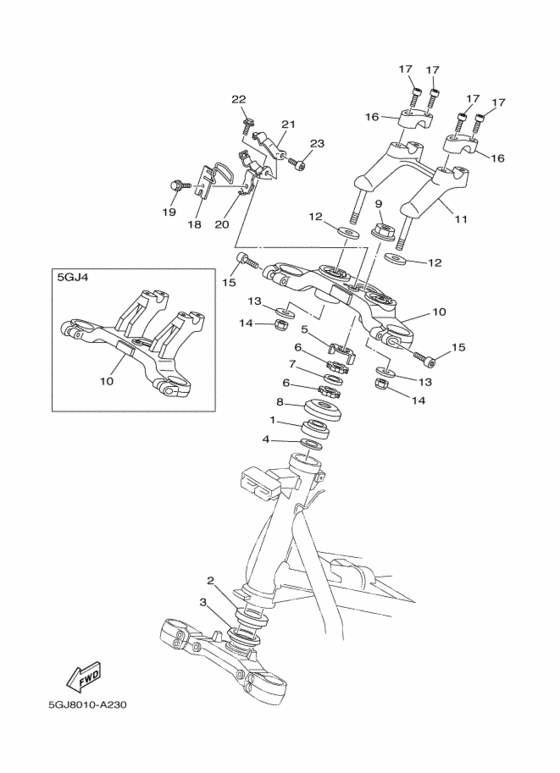

Steering Diagram Yamaha XP500 T-MAX
- Year
- 2001
- Colour
- Calm Yellow (CMY; 00AL)
- Model code
- 5GJ4
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- A
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93399-99931-00 Bearing |
93399-99931-00 |
from US $32.60 |
||
|
2
|
2
933-99999-32-00 Bearing |
933-99999-32-00 |
from US $36.49 |
||
|
3
|
3
3FV-23462-00-00 Seal, Steeringシール，ステアリング; |
3FV-23462-00-00 |
from US $18.86 |
||
|
4
|
4
90202-24190-00 Washer, Plateワツシヤ，プレート; |
90202-24190-00 |
from US $1.81 |
||
|
5
|
5
26H-23418-01-00 Washer, Special |
26H-23418-01-00 |
from US $7.77 |
||
|
6
|
6
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
6
|
6
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
6
|
6
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
7
|
7
90202-26142-00 Washer, Plateワツシヤ，プレート; |
90202-26142-00 |
from US $2.08 |
||
|
8
|
8
1W1-23416-00-00 Cover, Ball Race 2カバー，ボールレース ２; |
1W1-23416-00-00 |
from US $15.02 |
||
|
9
|
9
90179-22412-00 Nut |
90179-22412-00 |
from US $8.64 |
||
| replacement | |||||
|
9
|
9
901-79220-05-00 Nut |
901-79220-05-00 |
from US $22.22 |
||
|
10
|
10
5GJ-23435-00-00
Crown, Handle
|
5GJ-23435-00-00 |
— | ||
| replacement | |||||
|
10
|
10
5GJ-23430-01-00
Handle Crown Comp
|
5GJ-23430-01-00 |
— | ||
|
15
|
15
913-17080-30-00 Boltボルト; |
913-17080-30-00 |
from US $1.07 |
||
|
16
|
16
4H7-23441-10-00 Holder, Handle Upper |
4H7-23441-10-00 |
from US $16.20 |
||
|
17
|
17
913-17080-30-00 Boltボルト; |
913-17080-30-00 |
from US $1.07 |
||
|
18
|
18
5GJ-2331E-00-00
Guide, Cable
ガイド，ケーブル; |
5GJ-2331E-00-00 |
— | ||
|
19
|
19
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
19
|
19
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
20
|
20
5GJ-25886-00-00 Holder, Brake Hoseホルダ，ブレーキホース; |
5GJ-25886-00-00 |
US $12.75 |
||
|
21
|
21
5GJ-25887-00-00 Holder, Brake Hoseホルダ，ブレーキホース; |
5GJ-25887-00-00 |
US $3.82 |
||
|
22
|
22
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
22
|
22
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
23
|
23
92017-06012-00 Bolt, Button Head |
92017-06012-00 |
from US $1.52 |
||
