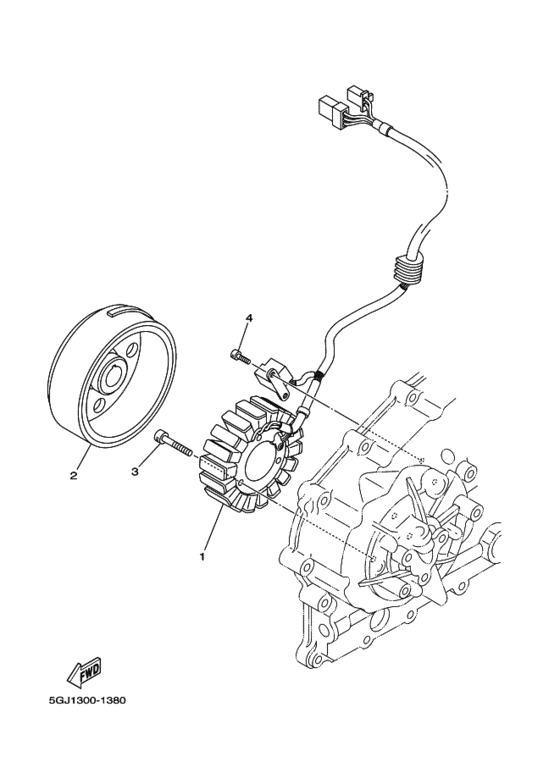

Generator Diagram Yamaha XP500 T-MAX
- Year
- 2001
- Colour
- Silver 1 (S1; 0755)
- Model code
- 5GJ4
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- B
- Model
- XP500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GJ-81410-00-00
Stator Assy
ステータアセンブリ; |
5GJ-81410-00-00 |
— | ||
| replacement | |||||
|
1
|
1
5GJ-81410-01-00 Stator Assyステータアセンブリ; |
5GJ-81410-01-00 |
US $407.72 |
||
|
2
|
2
5GJ-81450-00-00
Rotor Assy
ロータアセンブリ; |
5GJ-81450-00-00 |
— | ||
|
3
|
3
901-10060-17-00
Bolt
|
901-10060-17-00 |
— | ||
| replacements | |||||
|
3
|
3
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
3
|
3
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
|
3
|
3
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
4
|
4
901-10050-07-00
Bolt
|
901-10050-07-00 |
— | ||
| replacement | |||||
|
4
|
4
91317-05012-00 Bolt |
91317-05012-00 |
from US $1.18 |
||
