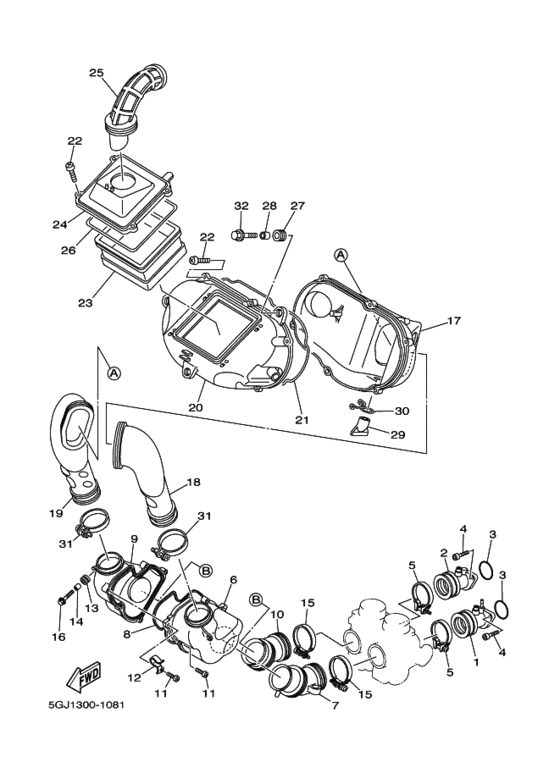

Intake Diagram Yamaha XP500 T-MAX
- Year
- 2001
- Colour
- Silver 1 (S1; 0755)
- Model code
- 5GJ4
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- B
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GJ-13586-00-00
Joint, Carburetor 1
|
5GJ-13586-00-00 |
— | ||
| replacement | |||||
|
1
|
1
5GJ-13586-02-00 Joint, Carburetor 1 |
5GJ-13586-02-00 |
US $47.18 |
||
|
2
|
2
5GJ-13596-00-00
Joint, Carburetor 2
|
5GJ-13596-00-00 |
— | ||
| replacement | |||||
|
2
|
2
5GJ-13596-01-00 Joint, Carburetor 2 |
5GJ-13596-01-00 |
US $47.18 |
||
|
3
|
3
93210-32738-00 O-Ring |
93210-32738-00 |
from US $1.39 |
||
|
4
|
4
91317-06020-00 Boltボルト; |
91317-06020-00 |
from US $1.18 |
||
|
5
|
5
5GJ-13575-00-00 Band |
5GJ-13575-00-00 |
US $5.53 |
||
| replacement | |||||
|
5
|
5
90450-46001-00 Hose Clamp Assy |
90450-46001-00 |
from US $5.24 |
||
|
6
|
6
5GJ-14431-00-00
Silencer, Intake 1
サイレンサ，インテーク １; |
5GJ-14431-00-00 |
— | ||
|
7
|
7
5GJ-14453-00-00
Joint, Air Cleaner 1
ジヨイント，エアクリーナ １; |
5GJ-14453-00-00 |
— | ||
|
8
|
8
1JK-14462-00-00 Sealシール; |
1JK-14462-00-00 |
from US $8.93 |
||
| replacement | |||||
|
8
|
8
51Y-14462-00-00 Sealシール; |
51Y-14462-00-00 |
from US $11.93 |
||
|
9
|
9
5GJ-14432-00-00 Silencer, Inner |
5GJ-14432-00-00 |
US $13.02 |
||
|
10
|
10
5GJ-14463-00-00
Joint, Air Cleaner 2
ジヨイント，エアクリーナ ２; |
5GJ-14463-00-00 |
— | ||
|
11
|
11
97707-50520-00 Screw, Tapping |
97707-50520-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
97707-50620-00 Screw, Tapping |
97707-50620-00 |
from US $1.22 |
||
|
12
|
12
90465-08371-00 Clampクランプ; |
90465-08371-00 |
from US $4.11 |
||
|
13
|
13
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.39 |
||
|
14
|
14
90387-067V1-00 Collar(3Kj)カラー; |
90387-067V1-00 |
from US $1.81 |
||
| replacement | |||||
|
14
|
14
90387-068J5-00 Collarカラー; |
90387-068J5-00 |
from US $1.81 |
||
|
15
|
15
90460-56071-00 Hose Clamp Assyクランプ，ホース; |
90460-56071-00 |
from US $10.33 |
||
| replacement | |||||
|
15
|
15
90450-56001-00 Hose Clamp Assyクランプ，ホース; |
90450-56001-00 |
from US $14.73 |
||
|
16
|
16
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.25 |
||
| replacement | |||||
|
16
|
16
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
17
|
17
5GJ-14411-00-00
Case, Air Cleaner 1
ケース，エアクリーナ １; |
5GJ-14411-00-00 |
— | ||
|
18
|
18
5GJ-1440F-00-00 Joint, Air Filter 1 |
5GJ-1440F-00-00 |
US $37.60 |
||
|
19
|
19
5GJ-1440G-00-00
Joint, Air Filter 2
|
5GJ-1440G-00-00 |
— | ||
|
20
|
20
5GJ-1441A-00-00
Cover, Cleaner Case 1
カバー，クリーナケース １; |
5GJ-1441A-00-00 |
— | ||
|
21
|
21
4KN-14452-00-00 Sealシール; |
4KN-14452-00-00 |
US $8.93 |
||
| replacement | |||||
|
21
|
21
51Y-14462-00-00 Sealシール; |
51Y-14462-00-00 |
from US $11.93 |
||
|
22
|
22
97707-50520-00 Screw, Tapping |
97707-50520-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
97707-50620-00 Screw, Tapping |
97707-50620-00 |
from US $1.22 |
||
|
23
|
23
4BH-14451-00-00 Element, Air Cleanerエレメント，エアクリーナ; |
4BH-14451-00-00 |
from US $47.27 |
||
| replacement | |||||
|
23
|
23
4BH-14451-01-00 Element, Air Cleanerエレメント，エアクリーナ; |
4BH-14451-01-00 |
from US $51.77 |
||
|
24
|
24
5GJ-14412-00-00 Cap, Cleaner Case 1キヤツプ，クリーナケース １; |
5GJ-14412-00-00 |
US $10.17 |
||
|
25
|
25
5GJ-14437-00-00 Duct |
5GJ-14437-00-00 |
US $15.41 |
||
|
26
|
26
3KJ-14452-30-00 Sealシール; |
3KJ-14452-30-00 |
from US $8.93 |
||
| replacement | |||||
|
26
|
26
51Y-14462-00-00 Sealシール; |
51Y-14462-00-00 |
from US $11.93 |
||
|
27
|
27
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.39 |
||
|
28
|
28
90387-067V1-00 Collar(3Kj)カラー; |
90387-067V1-00 |
from US $1.81 |
||
| replacement | |||||
|
28
|
28
90387-068J5-00 Collarカラー; |
90387-068J5-00 |
from US $1.81 |
||
|
29
|
29
59V-14457-00-00 Sealシール; |
59V-14457-00-00 |
from US $3.33 |
||
|
30
|
30
904-67220-80-00 Clip |
904-67220-80-00 |
from US $1.56 |
||
|
31
|
31
90460-56071-00 Hose Clamp Assyクランプ，ホース; |
90460-56071-00 |
from US $10.33 |
||
| replacement | |||||
|
31
|
31
90450-56001-00 Hose Clamp Assyクランプ，ホース; |
90450-56001-00 |
from US $14.73 |
||
|
32
|
32
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.25 |
||
| replacement | |||||
|
32
|
32
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
