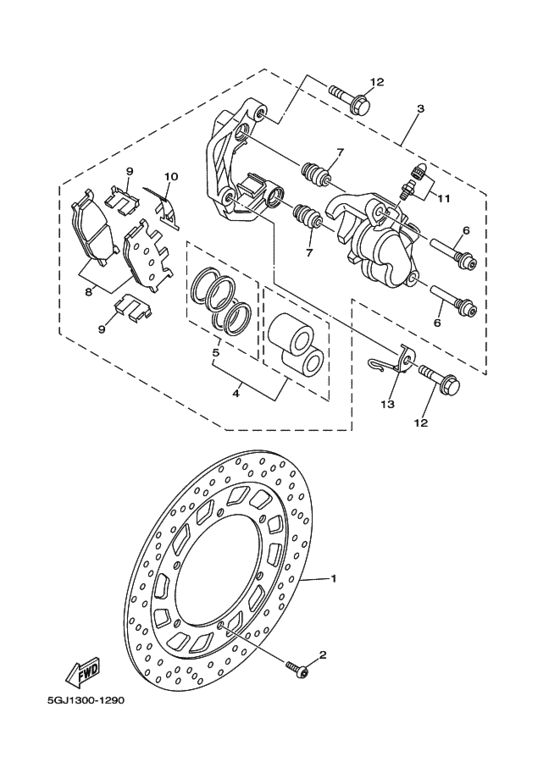

Front brake caliper Diagram Yamaha XP500 T-MAX
- Year
- 2002
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5GJ8
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- A
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GJ-2582T-00-00 Disc, Brake (Left)レフト |
5GJ-2582T-00-00 |
US $435.12 |
||
|
2
|
2
90109-064G6-00 Bolt |
90109-064G6-00 |
from US $1.66 |
||
| replacement | |||||
|
2
|
2
901-09062-54-00 Bolt |
901-09062-54-00 |
from US $1.66 |
||
|
3
|
3
5GJ-2580T-00-00 Caliper Assy (Left)レフト |
5GJ-2580T-00-00 |
US $328.92 |
||
|
4
|
4
3YX-W0057-00-00 Piston Assy, Caliper．ピストンアセンブリ，キヤリパ; |
3YX-W0057-00-00 |
from US $46.70 |
||
|
5
|
5
3JB-W0047-00-00
Caliper Seal Kit
．．キヤリパシールキツト; |
3JB-W0047-00-00 |
— | ||
| replacement | |||||
|
5
|
5
3JB-25803-00-00 Caliper Seal Kit．．キヤリパシールキツト; |
3JB-25803-00-00 |
from US $28.02 |
||
|
6
|
6
4TT-25914-00-00
Pin, Slide
．ピン，スライド; |
4TT-25914-00-00 |
— | ||
| replacement | |||||
|
6
|
6
5JW-25914-10-00 Pin, Slide．ピン，スライド; |
5JW-25914-10-00 |
from US $5.68 |
||
|
7
|
7
4TT-25937-00-00 Boot 2．ブーツ ２; |
4TT-25937-00-00 |
from US $9.44 |
||
|
8
|
8
4WM-W0045-00-00 Brake Pad Kit．ブレーキパツドキツト; |
4WM-W0045-00-00 |
from US $59.54 |
||
|
9
|
9
4BP-25919-00-00 Support, Pad．サポート，パツド; |
4BP-25919-00-00 |
from US $17.48 |
||
|
10
|
10
3YX-25929-00-00 Spring, Anti Rattle．スプリング，アンチノイズ; |
3YX-25929-00-00 |
from US $22.20 |
||
|
11
|
11
51L-W0048-00-00
Bleed Screw Kit
．ブリードスクリユキツト; |
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
11
|
11
15B-W0048-00-00 Bleed Screw Kit．ブリードスクリユキツト; |
15B-W0048-00-00 |
from US $9.29 |
||
|
12
|
12
90105-105A7-00 Bolt, Flangeボルト，フランジ; |
90105-105A7-00 |
from US $5.85 |
||
|
13
|
13
4YR-23317-00-00 Holder, Cableホルダ，ケーブル; |
4YR-23317-00-00 |
from US $14.17 |
||
