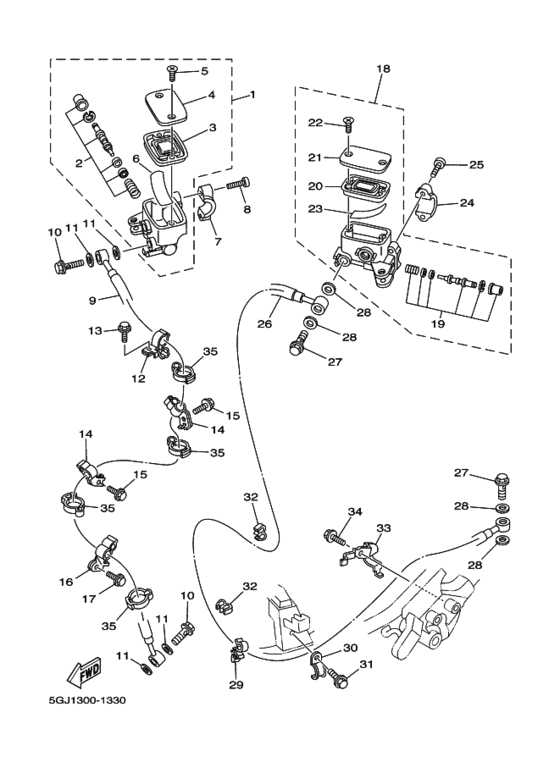

Front master cylinder Diagram Yamaha XP500 T-MAX
- Year
- 2002
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5GJ8
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- A
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GJ-25870-00-00 Master Cylinder Sub Assyマスタシリンダサブアセンブリ; |
5GJ-25870-00-00 |
US $210 |
||
| replacement | |||||
|
1
|
1
5RU-25870-20-00 Master Cylinder Sub Assyマスタシリンダサブアセンブリ; |
5RU-25870-20-00 |
from US $210 |
||
|
2
|
2
5GJ-W0041-00-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
5GJ-W0041-00-00 |
from US $47.81 |
||
| replacement | |||||
|
2
|
2
5VU-W0041-00-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
5VU-W0041-00-00 |
from US $51.81 |
||
|
3
|
3
3YX-25854-00-00 Diaphragm, Reservoir．ダイヤフラム，リザーバ; |
3YX-25854-00-00 |
from US $17.20 |
||
|
4
|
4
4TX-25852-00-00 Cap, Reservoir．キヤツプ，リザーバ; |
4TX-25852-00-00 |
from US $23.36 |
||
| replacement | |||||
|
4
|
4
4TX-25852-01-00 Cap, Reservoir．キヤツプ，リザーバ; |
4TX-25852-01-00 |
from US $31.97 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
．スクリユ，フラツトヘツド; |
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
3YX-25896-00-00 Plate, Reservoir．プレート，リザーバ; |
3YX-25896-00-00 |
from US $1.70 |
||
|
7
|
7
3RW-25867-00-00 Bracket, Master Cylinder |
3RW-25867-00-00 |
from US $13.46 |
||
| replacement | |||||
|
7
|
7
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
8
|
8
913-17060-25-00 Boltボルト; |
913-17060-25-00 |
from US $1.39 |
||
|
9
|
9
5GJ-25872-00-00
Hose, Brake 1
ホース，ブレーキ １; |
5GJ-25872-00-00 |
— | ||
|
10
|
10
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.77 |
||
|
11
|
11
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
|
12
|
12
5GJ-25875-10-00 Holder, Brake Hose 1ホルダ，ブレーキホース １; |
5GJ-25875-10-00 |
US $6.17 |
||
|
13
|
13
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.18 |
||
| replacement | |||||
|
13
|
13
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
14
|
14
5GJ-25875-00-00 Holder, Brake Hose 1ホルダ，ブレーキホース １; |
5GJ-25875-00-00 |
US $8.50 |
||
|
15
|
15
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
15
|
15
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
16
|
16
5GJ-25876-00-00 Holder, Brake Hose 2ホルダ，ブレーキホース ２; |
5GJ-25876-00-00 |
US $8.66 |
||
|
17
|
17
95807-06020-00 Bolt, Flange |
95807-06020-00 |
from US $1.25 |
||
| replacement | |||||
|
17
|
17
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
18
|
18
5GJ-25870-10-00 Master Cylinder Sub Assyマスタシリンダサブアセンブリ; |
5GJ-25870-10-00 |
US $157.77 |
||
|
19
|
19
5GJ-W0041-10-00
Cylinder Kit, Master
．シリンダキツト，マスタ; |
5GJ-W0041-10-00 |
— | ||
| replacement | |||||
|
19
|
19
1B7-W0041-00-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
1B7-W0041-00-00 |
from US $51.81 |
||
|
20
|
20
3YX-25854-00-00 Diaphragm, Reservoir．ダイヤフラム，リザーバ; |
3YX-25854-00-00 |
from US $17.20 |
||
|
21
|
21
4TX-25852-00-00 Cap, Reservoir．キヤツプ，リザーバ; |
4TX-25852-00-00 |
from US $23.36 |
||
| replacement | |||||
|
21
|
21
4TX-25852-01-00 Cap, Reservoir．キヤツプ，リザーバ; |
4TX-25852-01-00 |
from US $31.97 |
||
|
22
|
22
987-06040-12-00
Screw, Flat Head
．スクリユ，フラツトヘツド; |
987-06040-12-00 |
— | ||
| replacement | |||||
|
22
|
22
98707-04012-00 Screw, Flat Head．スクリユ，フラツトヘツド; |
98707-04012-00 |
from US $1.52 |
||
|
23
|
23
3YX-25896-00-00 Plate, Reservoir．プレート，リザーバ; |
3YX-25896-00-00 |
from US $1.70 |
||
|
24
|
24
3RW-25867-00-00 Bracket, Master Cylinder |
3RW-25867-00-00 |
from US $13.46 |
||
| replacement | |||||
|
24
|
24
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
25
|
25
913-17060-25-00 Boltボルト; |
913-17060-25-00 |
from US $1.39 |
||
|
26
|
26
5GJ-2584A-00-00 Brake Hose Assy |
5GJ-2584A-00-00 |
US $180.71 |
||
|
27
|
27
90401-10172-00 Bolt, Union |
90401-10172-00 |
from US $2.77 |
||
|
28
|
28
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
28
|
28
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
|
29
|
29
90464-09129-00 Clamp |
90464-09129-00 |
from US $1.98 |
||
|
30
|
30
5GJ-25886-10-00 Holder, Brake Hoseホルダ，ブレーキホース; |
5GJ-25886-10-00 |
from US $4.82 |
||
|
31
|
31
958-07060-10-00
Bolt, Flange
|
958-07060-10-00 |
— | ||
| replacement | |||||
|
31
|
31
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
32
|
32
90464-60067-00 Clamp |
90464-60067-00 |
from US $1.70 |
||
|
33
|
33
5GJ-22465-00-00 Holder |
5GJ-22465-00-00 |
US $8.98 |
||
|
34
|
34
95807-08012-00 Bolt, Flange |
95807-08012-00 |
from US $1.18 |
||
| replacement | |||||
|
34
|
34
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
35
|
35
90465-14310-00 Clamp |
90465-14310-00 |
from US $1.98 |
||
