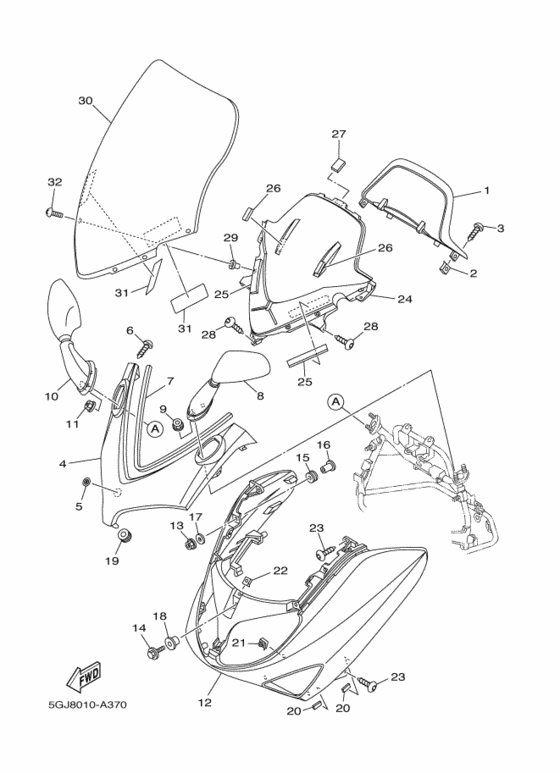

Windshield Diagram Yamaha XP500 T-MAX
- Year
- 2002
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 5GJ8
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- B
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GJ-2836K-01-00 Panel, Inner 1 |
5GJ-2836K-01-00 |
US $64.80 |
||
|
2
|
2
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
3
|
3
90167-05079-00 Screw, Tapping |
90167-05079-00 |
from US $1.66 |
||
|
4
|
4
5GJ-28345-00-P0 Mole 1モール １; ブラツクメタリツク ２ |
5GJ-28345-00-P0 |
US $285.99 |
||
| replacement | |||||
|
4
|
4
5GJ-28345-00-P1 Mole 1モール １; ブラツクメタリツク ２ |
5GJ-28345-00-P1 |
US $285.99 |
||
|
5
|
5
5GM-2836B-01-00 Tuning Fork Markチユーニングフオークマーク; |
5GM-2836B-01-00 |
from US $36.99 |
||
|
6
|
6
90167-05079-00 Screw, Tapping |
90167-05079-00 |
from US $1.66 |
||
|
7
|
7
5GJ-28347-00-00 Mole 3モール ３; |
5GJ-28347-00-00 |
US $17.71 |
||
|
8
|
8
5GJ-26280-10-00 Rear View Mirror Assy (Left)バツクミラーアセンブリ ; レフト |
5GJ-26280-10-00 |
US $106.38 |
||
|
9
|
9
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
10
|
10
5GJ-26290-10-00 Rear View Mirror Assy (Right)バツクミラーアセンブリ ; ライト |
5GJ-26290-10-00 |
US $106.38 |
||
|
11
|
11
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
12
|
12
5GJ-28350-00-P5 Cowling AssyＵＲ ブルーイツシユホワイトカクテル １ |
5GJ-28350-00-P5 |
US $410.11 |
||
|
13
|
13
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
14
|
14
95807-06025-00 Bolt, Flange |
95807-06025-00 |
from US $1.18 |
||
| replacements | |||||
|
14
|
14
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
14
|
14
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
15
|
15
90480-15058-00 Grommet |
90480-15058-00 |
from US $1.35 |
||
|
16
|
16
90387-071E0-00 Collarカラー; |
90387-071E0-00 |
from US $5.38 |
||
|
17
|
17
902-01060-08-00
Washer, Plate
ワツシヤ，プレート; |
902-01060-08-00 |
— | ||
| replacement | |||||
|
17
|
17
90201-06M02-00 Washer,plate (6K8)ワツシヤ，プレート; |
90201-06M02-00 |
from US $2.27 |
||
|
18
|
18
90387-07003-00 Collarカラー; |
90387-07003-00 |
US $7.93 |
||
|
19
|
19
904-80015-58-00 Grommet |
904-80015-58-00 |
from US $1.66 |
||
|
20
|
20
56J-21747-00-00 Damper |
56J-21747-00-00 |
from US $0.85 |
||
| replacement | |||||
|
20
|
20
3LD-24854-00-00 Damper |
3LD-24854-00-00 |
US $4.25 |
||
|
21
|
21
3VP-21535-00-00 Nut 1 |
3VP-21535-00-00 |
from US $3.10 |
||
| replacement | |||||
|
21
|
21
25G-21535-00-00 Nut 1 |
25G-21535-00-00 |
from US $7.65 |
||
|
22
|
22
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
23
|
23
97707-50012-00 Screw, Truss Head Tappingスクリユ，タツピング; |
97707-50012-00 |
from US $1.28 |
||
|
24
|
24
5GJ-2836L-00-00 Panel, Inner 2 |
5GJ-2836L-00-00 |
US $106.94 |
||
|
25
|
25
5GJ-28455-10-00 Damper, 4ダンパ ４; |
5GJ-28455-10-00 |
US $2.27 |
||
|
26
|
26
5GJ-28455-20-00 Damper, 4ダンパ ４; |
5GJ-28455-20-00 |
US $2.27 |
||
|
27
|
27
5GJ-24723-00-00 Damper, Seatダンパ，シート; |
5GJ-24723-00-00 |
from US $1.26 |
||
|
28
|
28
97707-50012-00 Screw, Truss Head Tappingスクリユ，タツピング; |
97707-50012-00 |
from US $1.28 |
||
|
29
|
29
901-79055-23-00 Nut |
901-79055-23-00 |
from US $3.60 |
||
|
30
|
30
5GJ-2837U-10-00 Screenスクリーン; |
5GJ-2837U-10-00 |
US $861.96 |
||
|
31
|
31
5GJ-28428-00-00 Seal 1 |
5GJ-28428-00-00 |
US $6.39 |
||
|
32
|
32
901-50050-24-00 Screw, Round Head |
901-50050-24-00 |
from US $1.66 |
||
