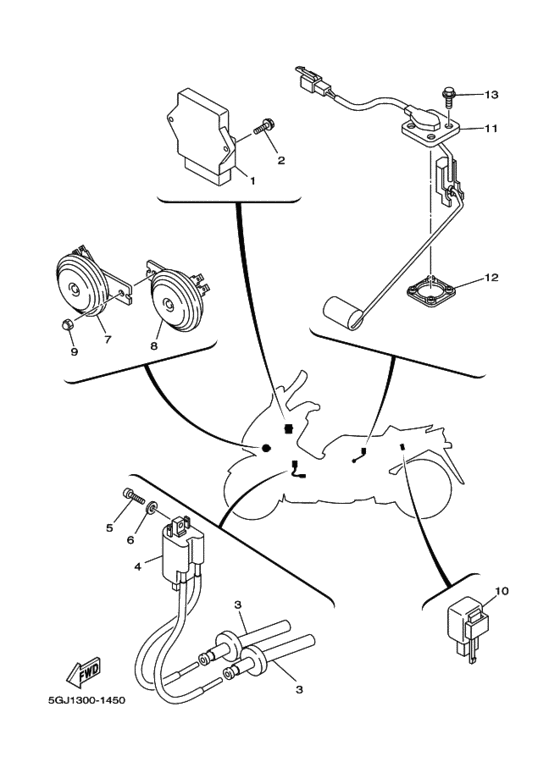

Electrical 2 Diagram Yamaha XP500 T-MAX
- Year
- 2003
- Colour
- Black 2 (BL2; 004B)
- Model code
- 5GJC
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- A
- Note
- ; ブラックエディション
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GJ-82305-11-00
Ignitor Unit Assy
|
5GJ-82305-11-00 |
— | ||
|
2
|
2
97707-60025-00 Screw, Tappingスクリユ，タツピング; |
97707-60025-00 |
from US $1.56 |
||
|
3
|
3
4XV-82370-01-00 Plug Cap Assy |
4XV-82370-01-00 |
from US $57.89 |
||
|
4
|
4
5GJ-82310-00-00
Ignition Coil Assy
|
5GJ-82310-00-00 |
— | ||
|
5
|
5
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
5
|
5
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.25 |
||
|
6
|
6
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
7
|
7
5JA-83371-00-00 Hornホーン; （＊１） |
5JA-83371-00-00 |
US $57.61 |
||
|
8
|
8
5GJ-83371-10-00 Hornホーン; |
5GJ-83371-10-00 |
US $45.47 |
||
|
9
|
9
90176-06055-00 Nut, Crown |
90176-06055-00 |
from US $1.66 |
||
|
10
|
10
3GM-83350-01-00
Flasher Relay Assy
フラツシヤリレーアセンブリ; |
3GM-83350-01-00 |
— | ||
| replacements | |||||
|
10
|
10
3GM-83350-02-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
3GM-83350-02-00 |
from US $51.67 |
||
|
10
|
10
3GM-83350-03-00 Flasher Relay Assyフラツシヤリレーアセンブリ; |
3GM-83350-03-00 |
US $93.53 |
||
|
11
|
11
5GJ-85752-00-00
Sender Unit Assy, Fuel Meter
センダユニツトアセンブリ，フユエルメータ; |
5GJ-85752-00-00 |
— | ||
|
12
|
12
5G3-85753-00-00 Gasket, Sender Unit |
5G3-85753-00-00 |
from US $5.58 |
||
|
13
|
13
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
