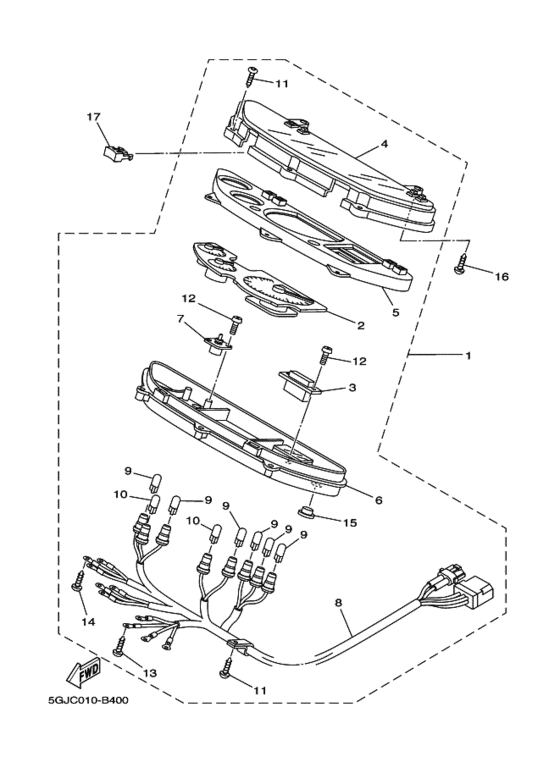

Meter Diagram Yamaha XP500 T-MAX
- Year
- 2003
- Colour
- Black 2 (BL2; 004B)
- Model code
- 5GJC
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- A
- Note
- ; ブラックエディション
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GJ-83500-40-00
Meter Assy
スピードメータアセンブリ; |
5GJ-83500-40-00 |
— | ||
|
2
|
2
5GJ-83510-40-00 Speedometer Assy．スピードメータアセンブリ; |
5GJ-83510-40-00 |
US $453.50 |
||
|
3
|
3
5RB-83740-00-00 Digital Clock Assy．デジタルクロツクアセンブリ; |
5RB-83740-00-00 |
US $293.93 |
||
|
4
|
4
5GJ-83511-00-00
Lens, Speedometer
．レンズ，スピードメータ; |
5GJ-83511-00-00 |
— | ||
| replacement | |||||
|
4
|
4
5GM-83511-00-00
Lens, Speedometer
．レンズ，スピードメータ; |
5GM-83511-00-00 |
— | ||
|
5
|
5
5GJ-83612-00-00
Cover, Meter Panel
．カバー，メータパネル; |
5GJ-83612-00-00 |
— | ||
|
6
|
6
5GJ-8353H-00-00 Case, Under．ケース，アンダー; |
5GJ-8353H-00-00 |
US $87.91 |
||
|
7
|
7
4HC-83964-00-00 Switch．スイツチ; |
4HC-83964-00-00 |
US $29.68 |
||
|
8
|
8
5GJ-83509-00-00
Socket Cord Assy
．ソケツトコードアセンブリ; |
5GJ-83509-00-00 |
— | ||
|
9
|
9
1YT-83517-00-00 Bulb (12V-1.7W T10)．．バルブ ; １２Ｖ−１７Ｗ Ｔ１０ |
1YT-83517-00-00 |
US $3.26 |
||
| replacement | |||||
|
9
|
9
3GM-83517-00-00 Bulb (12V-1.7W)．．バルブ ; １２Ｖ−１７Ｗ Ｔ１０ |
3GM-83517-00-00 |
from US $3.26 |
||
|
10
|
10
4R0-83517-00-00 Bulb (12V-3.4W T10)．．バルブ ; １２Ｖ−３４Ｗ Ｔ１０ |
4R0-83517-00-00 |
US $4.25 |
||
| replacements | |||||
|
10
|
10
4G1-84744-00-XX
Bulb (12V-3.4W T10)
．．バルブ ; １２Ｖ−３４Ｗ Ｔ１０ |
4G1-84744-00-XX |
— | ||
|
10
|
10
4G1-84744-00-00 Bulb (12V-3.4W T10)．．バルブ ; １２Ｖ−３４Ｗ Ｔ１０ |
4G1-84744-00-00 |
US $4.04 |
||
|
11
|
11
97707-40016-00 Screw, Tapping．スクリユ，タツピング; |
97707-40016-00 |
from US $1.42 |
||
|
12
|
12
97707-30512-00 Screw, Tapping．スクリユ，タツピング; |
97707-30512-00 |
from US $1.56 |
||
|
13
|
13
5GM-8362Y-00-00 Screw, Special．スクリユー、 スペシヤル; |
5GM-8362Y-00-00 |
US $1.84 |
||
|
14
|
14
5GM-83616-00-00 Screw, Tapping．スクリユー，タツピング; |
5GM-83616-00-00 |
US $2.94 |
||
|
15
|
15
3SX-8352K-00-00 Plug, Blind．プラグ，ブラインド; |
3SX-8352K-00-00 |
US $3.97 |
||
|
16
|
16
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
16
|
16
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
17
|
17
4HC-2837G-00-00 Lock 1 |
4HC-2837G-00-00 |
US $8.50 |
||
