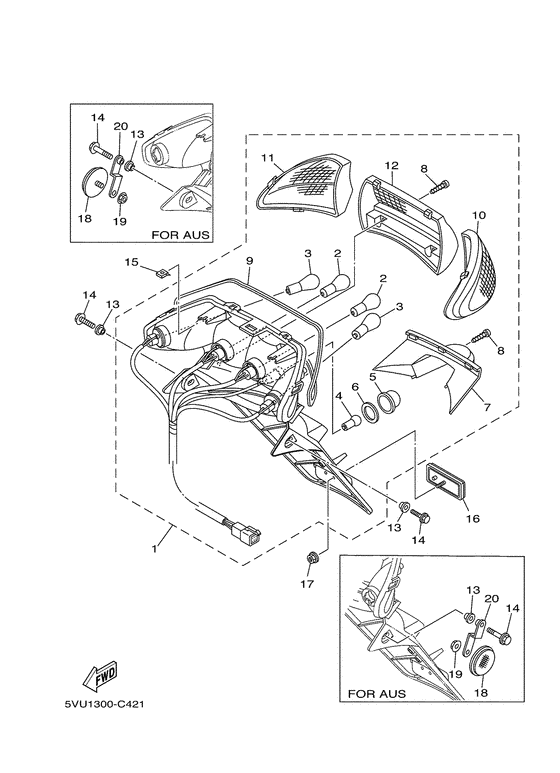

Taillight Diagram Yamaha XP500 T-MAX
- Year
- 2004
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 5VU2
- Sales region
- Australia (010)
- Engine Capacity
- 500
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5GJ-84710-10-00 Taillight Unit Assy |
5GJ-84710-10-00 |
US $237.64 |
||
| replacement | |||||
|
01
|
01
5GJ-84710-11-00 Taillight Unit Assy |
5GJ-84710-11-00 |
US $237.64 |
||
|
02
|
02
36Y-84714-40-00 Bulb |
36Y-84714-40-00 |
from US $4.96 |
||
| replacements | |||||
|
02
|
02
1A2-84714-50-00 Bulb (12V-21/5W) |
1A2-84714-50-00 |
from US $5.28 |
||
|
02
|
02
1A2-84714-41-00
Bulb
|
1A2-84714-41-00 |
— | ||
|
03
|
03
32H-83331-00-00 Bulb, Flasher (12V-21W) |
32H-83331-00-00 |
from US $7.51 |
||
| replacements | |||||
|
03
|
03
306-83311-40-00 Bulb, Flasher (12V-21W) |
306-83311-40-00 |
from US $7.51 |
||
|
03
|
03
NH7-H3311-00-01
Bulb, Flasher
|
NH7-H3311-00-01 |
— | ||
|
04
|
04
5GJ-84744-00-00 Bulb (12V-5W) |
5GJ-84744-00-00 |
from US $5.24 |
||
|
05
|
05
25G-84743-01-00 Lens, License Light |
25G-84743-01-00 |
from US $11.54 |
||
|
06
|
06
25G-84742-00-00 Seat, Base |
25G-84742-00-00 |
from US $9.21 |
||
|
07
|
07
5GJ-84516-00-00 Cover, Taillight |
5GJ-84516-00-00 |
US $22.10 |
||
|
08
|
08
97702-40614-00 Screw, Tapping |
97702-40614-00 |
from US $1.21 |
||
| replacement | |||||
|
08
|
08
97707-40614-00 Screw, Pan Tap.2 Slit |
97707-40614-00 |
from US $1.21 |
||
|
09
|
09
5GJ-84523-00-00 Gasket, Lens |
5GJ-84523-00-00 |
US $10.63 |
||
|
10
|
10
5GJ-83332-00-00 Lens, Flasher |
5GJ-83332-00-00 |
US $16.58 |
||
|
11
|
11
5GJ-83342-00-00 Lens, Flasher 2 |
5GJ-83342-00-00 |
US $16.58 |
||
|
12
|
12
5GJ-84721-00-00 Lens, Taillight |
5GJ-84721-00-00 |
US $25.08 |
||
|
13
|
13
90387-07717-00 Collar |
90387-07717-00 |
from US $2.36 |
||
|
14
|
14
90105-06601-00 Bolt, Flange |
90105-06601-00 |
from US $1.07 |
||
| replacements | |||||
|
14
|
14
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
14
|
14
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
15
|
15
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
16
|
16
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $11.12 |
||
|
17
|
17
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
18
|
18
4AG-85111-00-00 Reflector, 1 |
4AG-85111-00-00 |
from US $9.98 |
||
|
19
|
19
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
19
|
19
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.52 |
||
|
20
|
20
5VU-85112-00-00 Bracket, reflector 1 |
5VU-85112-00-00 |
US $18.36 |
||
