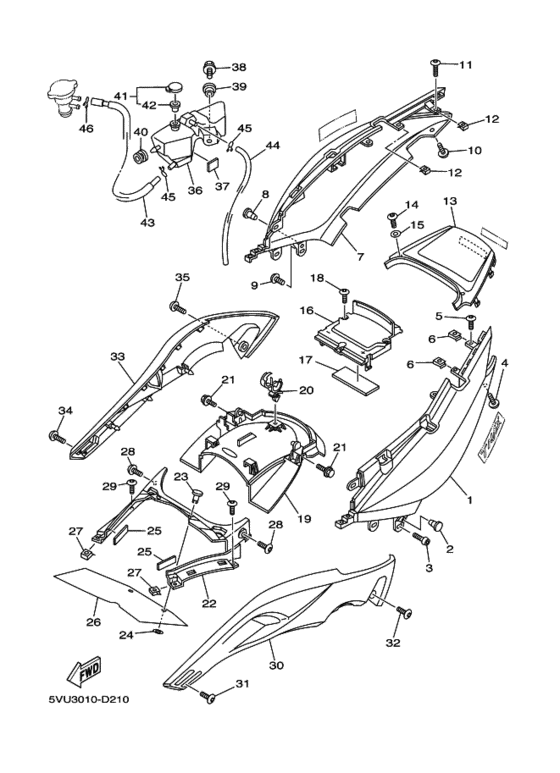

Side cover Diagram Yamaha XP500 T-MAX
- Year
- 2005
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 5VU3
- Sales region
- Japan (010)
- Engine Capacity
- 500
- Color Variant
- A
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5GJ-21711-00-PA Cover, Side 1カバー，サイド １; ＵＲ ＳＭＸ，ＷＯＧ |
5GJ-21711-00-PA |
from US $203.10 |
||
|
2
|
2
90338-06143-00 Plug (22F) |
90338-06143-00 |
from US $2.35 |
||
|
3
|
3
90110-06090-00 Bolt, Hexagon Socket Head |
90110-06090-00 |
from US $1.84 |
||
| replacement | |||||
|
3
|
3
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.66 |
||
|
4
|
4
90167-05076-00 Screw, Tappingスクリユ，タツピング; |
90167-05076-00 |
from US $1.66 |
||
|
5
|
5
97707-50012-00 Screw, Truss Head Tappingスクリユ，タツピング; |
97707-50012-00 |
from US $1.28 |
||
|
6
|
6
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
7
|
7
5GJ-21721-00-PA Cover, Side 2カバー，サイド ２; ＵＲ ＳＭＸ，ＷＯＧ |
5GJ-21721-00-PA |
US $203.10 |
||
|
8
|
8
90338-06143-00 Plug (22F) |
90338-06143-00 |
from US $2.35 |
||
|
9
|
9
90110-06090-00 Bolt, Hexagon Socket Head |
90110-06090-00 |
from US $1.84 |
||
| replacement | |||||
|
9
|
9
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.66 |
||
|
10
|
10
90167-05076-00 Screw, Tappingスクリユ，タツピング; |
90167-05076-00 |
from US $1.66 |
||
|
11
|
11
97707-50012-00 Screw, Truss Head Tappingスクリユ，タツピング; |
97707-50012-00 |
from US $1.28 |
||
|
12
|
12
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
13
|
13
5GJ-21741-00-PA Cover, Side 4カバー，サイド ４; ＵＲ ＳＭＸ，ＷＯＧ |
5GJ-21741-00-PA |
US $65.40 |
||
|
14
|
14
90167-05076-00 Screw, Tappingスクリユ，タツピング; |
90167-05076-00 |
from US $1.66 |
||
|
15
|
15
90209-05347-00 Washer |
90209-05347-00 |
from US $0.52 |
||
|
16
|
16
5GJ-21716-00-00 Lid, Side Cover |
5GJ-21716-00-00 |
US $19.56 |
||
|
17
|
17
5GJ-24724-01-00 Damper, Seatダンパ，シート; |
5GJ-24724-01-00 |
from US $2.90 |
||
|
18
|
18
98907-05020-00 Screw, Bindingスクリユ，バインド; |
98907-05020-00 |
from US $1.66 |
||
|
19
|
19
5GJ-21629-00-00 Guard, Mudガード、マツド; |
5GJ-21629-00-00 |
US $22.47 |
||
|
20
|
20
90464-07209-00 Clampクランプ; |
90464-07209-00 |
from US $1.35 |
||
|
21
|
21
90119-06060-00 Bolt, With Washer |
90119-06060-00 |
US $1.35 |
||
| replacement | |||||
|
21
|
21
90119-06226-00 Bolt, With Washer |
90119-06226-00 |
from US $1.52 |
||
|
22
|
22
5VU-21731-00-00
Cover, Side 3
カバー，サイド ３; |
5VU-21731-00-00 |
— | ||
|
23
|
23
902-69070-76-00 Rivet(4Jh)リベツト; |
902-69070-76-00 |
from US $1.81 |
||
|
24
|
24
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
25
|
25
5VU-21717-00-00 Damper |
5VU-21717-00-00 |
US $1.94 |
||
|
26
|
26
5VU-2171A-00-00 Cover, Topカバー，トツプ; |
5VU-2171A-00-00 |
US $30.07 |
||
|
27
|
27
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
28
|
28
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
28
|
28
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
29
|
29
97707-50012-00 Screw, Truss Head Tappingスクリユ，タツピング; |
97707-50012-00 |
from US $1.28 |
||
|
30
|
30
5GJ-2171X-00-P3 Cover, Side 6ＵＲ ＳＭＸ |
5GJ-2171X-00-P3 |
US $154.90 |
||
|
31
|
31
90167-05080-00 Screw, Tapping |
90167-05080-00 |
from US $1.66 |
||
|
32
|
32
90110-06090-00 Bolt, Hexagon Socket Head |
90110-06090-00 |
from US $1.84 |
||
| replacement | |||||
|
32
|
32
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.66 |
||
|
33
|
33
5GJ-2172W-01-P3 Coverカバー; ＵＲ ＳＭＸ |
5GJ-2172W-01-P3 |
US $154.90 |
||
|
34
|
34
90167-05080-00 Screw, Tapping |
90167-05080-00 |
from US $1.66 |
||
|
35
|
35
90110-06090-00 Bolt, Hexagon Socket Head |
90110-06090-00 |
from US $1.84 |
||
| replacement | |||||
|
35
|
35
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.66 |
||
|
36
|
36
5GJ-21871-00-00
Tank, Recovery
|
5GJ-21871-00-00 |
— | ||
|
37
|
37
5GJ-24723-00-00 Damper, Seatダンパ，シート; |
5GJ-24723-00-00 |
from US $1.26 |
||
|
38
|
38
958-07060-14-00
Bolt, Flange
|
958-07060-14-00 |
— | ||
| replacement | |||||
|
38
|
38
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.18 |
||
|
39
|
39
90387-066R8-00 Collarカラー; |
90387-066R8-00 |
from US $1.42 |
||
| replacement | |||||
|
39
|
39
90387-062M9-00 Collarカラー; |
90387-062M9-00 |
from US $1.70 |
||
|
40
|
40
90480-13426-00 Grommet |
90480-13426-00 |
from US $1.94 |
||
| replacement | |||||
|
40
|
40
90480-13567-00 Grommet |
90480-13567-00 |
from US $1.94 |
||
|
41
|
41
1AA-21815-00-00 Cap |
1AA-21815-00-00 |
from US $6.40 |
||
|
42
|
42
1AA-21874-00-00 Gasket．ガスケツト; |
1AA-21874-00-00 |
from US $1.94 |
||
|
43
|
43
5GJ-21816-10-00 Pipe 1 |
5GJ-21816-10-00 |
US $28.72 |
||
|
44
|
44
90445-09094-00 Hose (L420)ホース ; Ｌ２１０ |
90445-09094-00 |
from US $6.52 |
||
| replacements | |||||
|
44
|
44
904-45092-K1-00 Hose (L420)ホース ; Ｌ２１０ |
904-45092-K1-00 |
from US $5.40 |
||
|
44
|
44
904-45090-F6-00 Hose (L1500)ホース ; Ｌ２１０ |
904-45090-F6-00 |
from US $7.76 |
||
|
45
|
45
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
46
|
46
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
46
|
46
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
46
|
46
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
