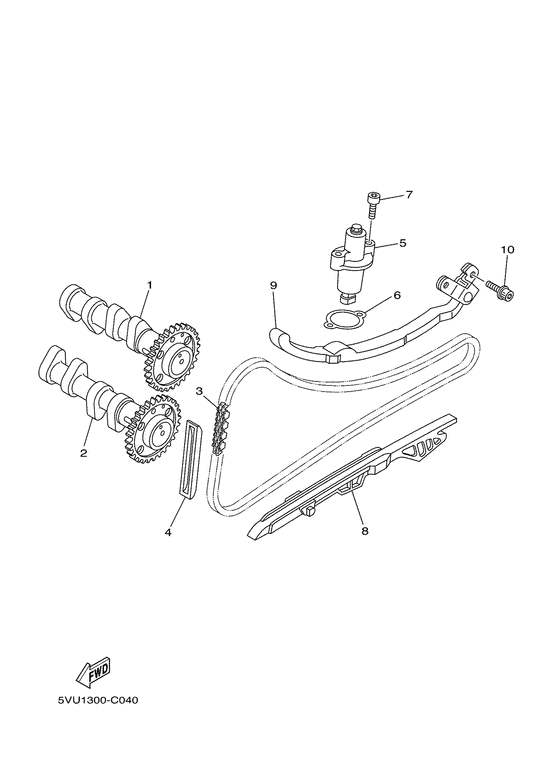

Camshaft & chain Diagram Yamaha XP500 T-MAX
- Year
- 2006
- Colour
- Mat Black 2 (MBL2; 0582)
- Model code
- 5VU8
- Sales region
- Belgium (090)
- Engine Capacity
- 500
- Model
- XP500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5VU-12170-10-00 Camshaft Assy 1 |
5VU-12170-10-00 |
from US $283.23 |
||
|
02
|
02
5VU-12180-10-00 Camshaft Assy 2 |
5VU-12180-10-00 |
from US $283.23 |
||
|
03
|
03
945-82181-32-00 Chain (Did Scr-409 Sv 132Le) |
945-82181-32-00 |
from US $33.56 |
||
|
04
|
04
5BE-12241-00-00
Guide, Stopper 2
|
5BE-12241-00-00 |
— | ||
| replacement | |||||
|
04
|
04
5BE-12241-01-00 GUIDE STOPPER 2 |
5BE-12241-01-00 |
from US $18.18 |
||
|
05
|
05
5GJ-12210-10-00
Tensioner Assy, Cam Chain
|
5GJ-12210-10-00 |
— | ||
| replacement | |||||
|
05
|
05
1B7-12210-00-00 Tensioner Assy, Cam Chain |
1B7-12210-00-00 |
from US $98.07 |
||
|
06
|
06
4FM-12213-00-00 Gasket, Tensioner Case |
4FM-12213-00-00 |
from US $1.81 |
||
|
07
|
07
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
08
|
08
5VU-12251-00-00 Damper, Chain 1 |
5VU-12251-00-00 |
from US $24.09 |
||
|
09
|
09
5GJ-12252-00-00 Damper, Chain 2 |
5GJ-12252-00-00 |
from US $69.35 |
||
|
10
|
10
90110-06108-00 Bolt, Hexagon Socket Head |
90110-06108-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
90110-06107-00 Bolt, Hexagon Socket Head |
90110-06107-00 |
from US $1.56 |
||
