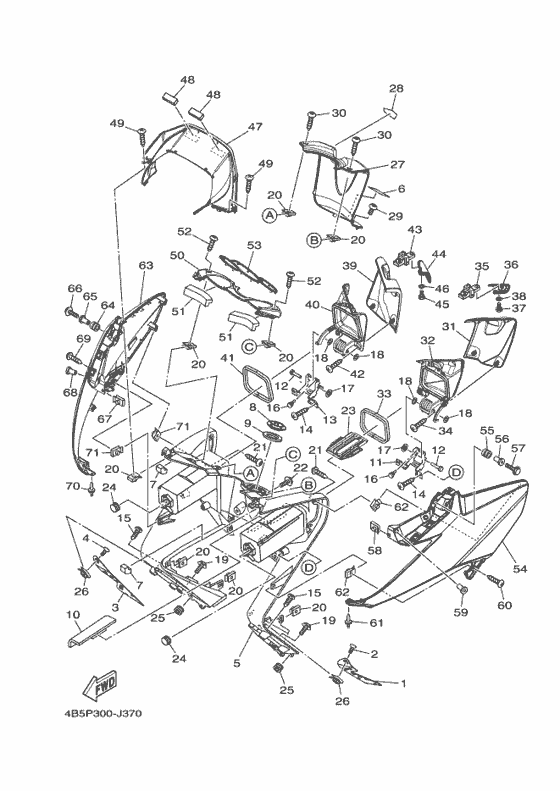

Leg shield Diagram Yamaha XP500 T-MAX
- Year
- 2010
- Colour
- Bluish White Cocktail 1
- Model code
- 4B5P
- Sales region
- Europe (050)
- Engine Capacity
- 500
- Color Variant
- A
- Model
- XP500 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4B5-27411-00-00 Footrest 1 |
4B5-27411-00-00 |
from US $60.79 |
||
|
2
|
2
901-51060-76-00 Screw, Countersunk |
901-51060-76-00 |
from US $1.70 |
||
|
3
|
3
4B5-27421-00-00 Footrest 2 |
4B5-27421-00-00 |
from US $60.79 |
||
|
4
|
4
901-51060-76-00 Screw, Countersunk |
901-51060-76-00 |
from US $1.70 |
||
|
5
|
5
4B5-28311-01-00 Leg Shield 1 |
4B5-28311-01-00 |
from US $175.46 |
||
|
6
|
6
26P-21568-00-00 Label, Warning |
26P-21568-00-00 |
US $3.40 |
||
|
7
|
7
4B5-2836U-01-00 Damper, Locating 2 |
4B5-2836U-01-00 |
from US $3.26 |
||
|
8
|
8
4B5-82552-00-00 Cap, Switch |
4B5-82552-00-00 |
from US $21.88 |
||
|
9
|
9
5VU-28307-00-00 Seal |
5VU-28307-00-00 |
from US $1.70 |
||
|
10
|
10
4B5-2834V-00-00 Protector 1 |
4B5-2834V-00-00 |
US $11.05 |
||
|
11
|
11
4B5-21796-01-00 Hinge |
4B5-21796-01-00 |
from US $13.46 |
||
|
12
|
12
90241-06002-00 Pin |
90241-06002-00 |
from US $1.70 |
||
|
13
|
13
4B5-21797-00-00 Hinge |
4B5-21797-00-00 |
from US $13.60 |
||
|
14
|
14
90160-04008-00 Screw, Round Tapping |
90160-04008-00 |
from US $1.70 |
||
|
15
|
15
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
15
|
15
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
16
|
16
90338-05009-00 Plug |
90338-05009-00 |
from US $1.98 |
||
|
17
|
17
90183-06008-00 Nut, Spring |
90183-06008-00 |
from US $1.98 |
||
|
18
|
18
90202-06004-00 Washer, Plate |
90202-06004-00 |
from US $1.66 |
||
|
19
|
19
90119-06209-00 Bolt, With Washer |
90119-06209-00 |
from US $1.56 |
||
|
20
|
20
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
21
|
21
90167-05076-00 Screw, Tapping |
90167-05076-00 |
from US $1.66 |
||
|
22
|
22
90119-06212-00 Bolt, With Washer |
90119-06212-00 |
from US $1.42 |
||
|
23
|
23
4B5-2839N-00-00 Holder |
4B5-2839N-00-00 |
US $8.50 |
||
|
24
|
24
90338-20113-00 Plug |
90338-20113-00 |
from US $1.70 |
||
|
25
|
25
90480-13567-00 Grommet |
90480-13567-00 |
from US $1.94 |
||
|
26
|
26
90183-060A8-00 Nut, Spring |
90183-060A8-00 |
from US $8.08 |
||
|
27
|
27
4B5-28312-A0-00 Leg Shield 2 |
4B5-28312-A0-00 |
US $178.22 |
||
|
28
|
28
4B5-2839B-00-00 Emblem 3D |
4B5-2839B-00-00 |
US $26.87 |
||
|
29
|
29
90111-06095-00 Bolt, Hex. Socket Button |
90111-06095-00 |
from US $2.08 |
||
|
30
|
30
90169-05003-00 Tapping Screw |
90169-05003-00 |
from US $1.56 |
||
|
31
|
31
4B5-28313-00-00 Lid |
4B5-28313-00-00 |
from US $10.34 |
||
|
32
|
32
4B5-2836M-00-00 Panel, Inner 3 |
4B5-2836M-00-00 |
US $9.21 |
||
|
33
|
33
4B5-28371-00-00 Damper |
4B5-28371-00-00 |
from US $2.55 |
||
|
34
|
34
90160-04008-00 Screw, Round Tapping |
90160-04008-00 |
from US $1.70 |
||
|
35
|
35
4B5-21780-00-00 Lock Assy |
4B5-21780-00-00 |
from US $21.39 |
||
|
36
|
36
4B5-2836X-10-00 Knob, 1 |
4B5-2836X-10-00 |
US $27.91 |
||
|
37
|
37
97022-05012-00 Bolt, Hexagon |
97022-05012-00 |
US $1.05 |
||
| replacement | |||||
|
37
|
37
97017-05012-00 Bolt |
97017-05012-00 |
from US $1.52 |
||
|
38
|
38
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
39
|
39
4B5-2839K-00-00 Lid 1 |
4B5-2839K-00-00 |
from US $10.34 |
||
|
40
|
40
4B5-2836N-00-00 Panel, Inner 4 |
4B5-2836N-00-00 |
from US $9.21 |
||
|
41
|
41
4B5-28371-00-00 Damper |
4B5-28371-00-00 |
from US $2.55 |
||
|
42
|
42
90160-04008-00 Screw, Round Tapping |
90160-04008-00 |
from US $1.70 |
||
|
43
|
43
4B5-21780-00-00 Lock Assy |
4B5-21780-00-00 |
from US $21.39 |
||
|
44
|
44
4B5-2836Y-10-00 Knob, 2 |
4B5-2836Y-10-00 |
US $27.91 |
||
|
45
|
45
97022-05012-00 Bolt, Hexagon |
97022-05012-00 |
US $1.05 |
||
| replacement | |||||
|
45
|
45
97017-05012-00 Bolt |
97017-05012-00 |
from US $1.52 |
||
|
46
|
46
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
47
|
47
4B5-2836K-00-00 Panel, Inner 1 |
4B5-2836K-00-00 |
from US $35.56 |
||
|
48
|
48
4B5-2814E-00-00 Hook |
4B5-2814E-00-00 |
from US $5.81 |
||
|
49
|
49
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
49
|
49
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
50
|
50
4B5-28346-10-00 Mole 2 |
4B5-28346-10-00 |
US $171.32 |
||
|
51
|
51
4B5-2834E-00-00 Damper 3 |
4B5-2834E-00-00 |
from US $5.24 |
||
|
52
|
52
90167-05076-00 Screw, Tapping |
90167-05076-00 |
from US $1.66 |
||
|
53
|
53
4B5-2839R-10-00 Panel, Accessory |
4B5-2839R-10-00 |
US $41.86 |
||
|
54
|
54
4B5-28351-01-P7 Body, CowlingFOR BWC1 |
4B5-28351-01-P7 |
US $168.56 |
||
|
55
|
55
904-80140-03-00 Grommet |
904-80140-03-00 |
from US $1.94 |
||
|
56
|
56
90387-0602X-00 Collar |
90387-0602X-00 |
from US $6.38 |
||
|
57
|
57
958-02060-20-00
Bolt, Flange
|
958-02060-20-00 |
— | ||
| replacement | |||||
|
57
|
57
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
58
|
58
90183-060A6-00 Nut, Spring |
90183-060A6-00 |
from US $1.98 |
||
|
59
|
59
901-79055-23-00 Nut |
901-79055-23-00 |
from US $4.03 |
||
|
60
|
60
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
60
|
60
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
61
|
61
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.81 |
||
|
62
|
62
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
63
|
63
4B5-28377-01-P7 Body, Cowling 2FOR BWC1 |
4B5-28377-01-P7 |
US $178.23 |
||
|
64
|
64
904-80140-03-00 Grommet |
904-80140-03-00 |
from US $1.94 |
||
|
65
|
65
90387-0602X-00 Collar |
90387-0602X-00 |
from US $6.38 |
||
|
66
|
66
958-02060-20-00
Bolt, Flange
|
958-02060-20-00 |
— | ||
| replacement | |||||
|
66
|
66
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
67
|
67
90183-060A6-00 Nut, Spring |
90183-060A6-00 |
from US $1.98 |
||
|
68
|
68
901-79055-23-00 Nut |
901-79055-23-00 |
from US $4.03 |
||
|
69
|
69
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
69
|
69
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
70
|
70
902-69060-08-00 Rivet (plastic-black) |
902-69060-08-00 |
from US $1.81 |
||
|
71
|
71
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
