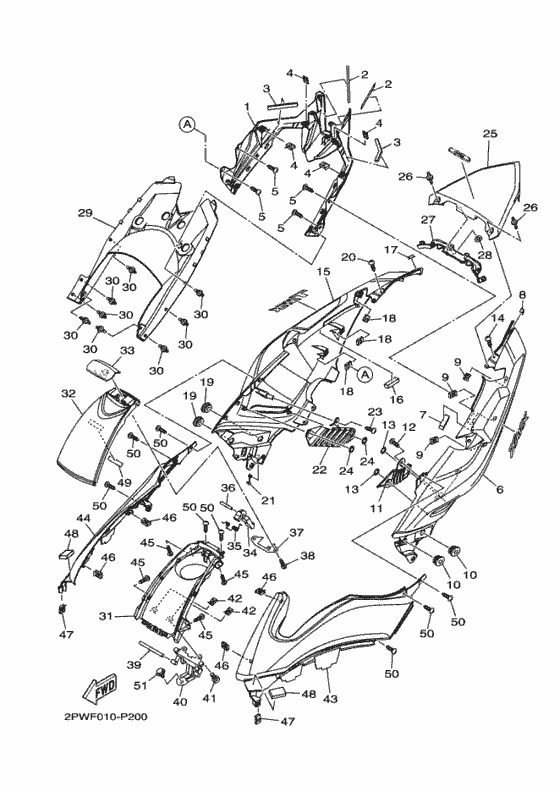

Side cover Diagram Yamaha XP500 T-MAX 530 ABS Iron Max
- Year
- 2016
- Colour
- Dark Gray Metallic S
- Model code
- 2PWX
- Sales region
- Japan (010)
- Engine Capacity
- 530
- Color Variant
- A
- Model
- XP500 (ABS)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2PW-2171E-00-00 Cover, Side 5 |
2PW-2171E-00-00 |
from US $125.31 |
||
|
2
|
2
2C0-21746-00-00 Damper |
2C0-21746-00-00 |
from US $1.70 |
||
|
3
|
3
4B5-2174X-00-00 Damper |
4B5-2174X-00-00 |
from US $1.56 |
||
|
4
|
4
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
5
|
5
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
5
|
5
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
6
|
6
59C-21711-00-P8 Cover, Side 1DNMS |
59C-21711-00-P8 |
US $142.30 |
||
|
7
|
7
905-20100-14-00 Damper, Plate |
905-20100-14-00 |
from US $1.42 |
||
|
8
|
8
905-20010-01-00 Damper, Plate |
905-20010-01-00 |
from US $1.56 |
||
|
9
|
9
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
10
|
10
90480-01559-00 Grommet |
90480-01559-00 |
from US $4.72 |
||
|
11
|
11
59C-2163E-00-00 Cover, Rear Fender 2 |
59C-2163E-00-00 |
from US $7.21 |
||
|
12
|
12
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
12
|
12
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
13
|
13
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.70 |
||
|
14
|
14
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
14
|
14
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
15
|
15
59C-21721-00-P8 Cover, Side 2DNMS |
59C-21721-00-P8 |
US $142.30 |
||
|
16
|
16
905-20100-14-00 Damper, Plate |
905-20100-14-00 |
from US $1.42 |
||
|
17
|
17
905-20010-01-00 Damper, Plate |
905-20010-01-00 |
from US $1.56 |
||
|
18
|
18
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
19
|
19
90480-01559-00 Grommet |
90480-01559-00 |
from US $4.72 |
||
|
20
|
20
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
20
|
20
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
21
|
21
904-64050-03-00 Clamp |
904-64050-03-00 |
from US $1.52 |
||
|
22
|
22
59C-2163F-00-00 Cover, Rear Fender 3 |
59C-2163F-00-00 |
from US $6.23 |
||
|
23
|
23
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
23
|
23
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
24
|
24
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.70 |
||
|
25
|
25
59C-2171A-00-P5 Cover, TopDNMS |
59C-2171A-00-P5 |
US $125.86 |
||
|
26
|
26
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.66 |
||
|
27
|
27
4B5-2175N-00-00 Cover, Flange |
4B5-2175N-00-00 |
from US $10.91 |
||
|
28
|
28
90183-05M02-00 Nut, Spring |
90183-05M02-00 |
from US $1.70 |
||
|
29
|
29
59C-21651-00-00 Cover, Rear Fender |
59C-21651-00-00 |
from US $16.43 |
||
|
30
|
30
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.66 |
||
|
31
|
31
4B5-2473F-00-00 Cover, Seat Comp |
4B5-2473F-00-00 |
from US $40.07 |
||
|
32
|
32
59C-2473T-00-00 Lid 1 |
59C-2473T-00-00 |
from US $8.93 |
||
|
33
|
33
4B5-2477F-10-00 Lever, Seat |
4B5-2477F-10-00 |
from US $29.58 |
||
|
34
|
34
5GJ-24754-01-00 Hook, Seat |
5GJ-24754-01-00 |
from US $5.41 |
||
|
35
|
35
4HC-24758-00-00 Spring |
4HC-24758-00-00 |
from US $4.64 |
||
|
36
|
36
93603-50195-00 Pin, Dowel |
93603-50195-00 |
from US $2.27 |
||
|
37
|
37
2PW-24217-00-00 Cover |
2PW-24217-00-00 |
from US $5.45 |
||
|
38
|
38
97702-40010-00 Screw, Tapping |
97702-40010-00 |
from US $1.42 |
||
|
39
|
39
5GJ-24774-00-00 Pin |
5GJ-24774-00-00 |
from US $3.54 |
||
|
40
|
40
4B5-24762-00-00 Reinforcement |
4B5-24762-00-00 |
from US $38.82 |
||
|
41
|
41
98902-05010-00 Screw, Bind |
98902-05010-00 |
US $1.21 |
||
| replacement | |||||
|
41
|
41
98980-05010-00 Screw, Bind |
98980-05010-00 |
from US $1.21 |
||
|
42
|
42
90183-050A7-00 Nut, Spring |
90183-050A7-00 |
from US $3.89 |
||
|
43
|
43
59C-24129-00-00 Cover, Side 1 |
59C-24129-00-00 |
from US $15.16 |
||
|
44
|
44
59C-24139-00-00 Cover, Side 2 |
59C-24139-00-00 |
from US $15.16 |
||
|
45
|
45
97702-40010-00 Screw, Tapping |
97702-40010-00 |
from US $1.42 |
||
|
46
|
46
90183-040A0-00 Nut, Spring |
90183-040A0-00 |
from US $0.52 |
||
|
47
|
47
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
48
|
48
905-20070-01-00 Damper, Plate |
905-20070-01-00 |
from US $0.88 |
||
|
49
|
49
3FB-2415E-C1-00 Label, Caution (JP) |
3FB-2415E-C1-00 |
US $15.30 |
||
|
50
|
50
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
50
|
50
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
51
|
51
95802-06010-00 Bolt, Flange |
95802-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
51
|
51
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
51
|
51
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
