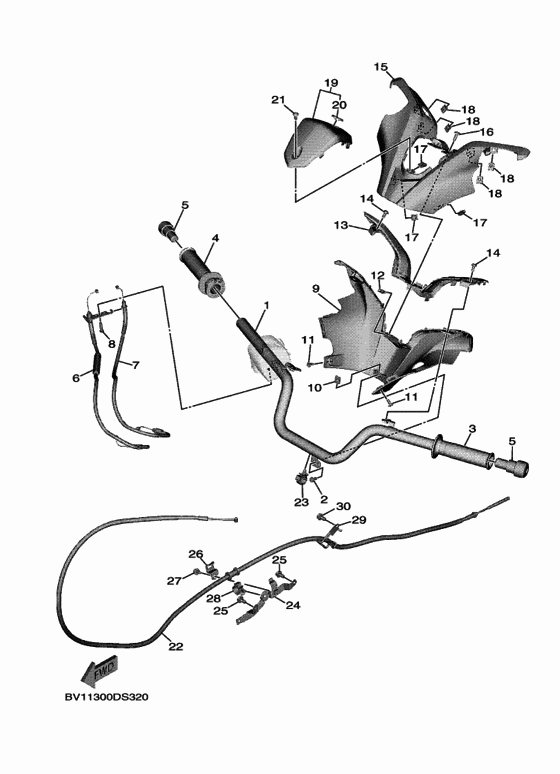

Steering handle & cable Diagram Yamaha XP530 T-MAX
- Year
- 2017
- Colour
- Black Metallic X
- Model code
- BV11
- Sales region
- Europe (060)
- Engine Capacity
- 530
- Color Variant
- A
- Model
- T-MAX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
BC3-26110-00-00 Handle Comp |
BC3-26110-00-00 |
US $80.55 |
||
|
2
|
2
90159-05032-00 Screw, With Washer |
90159-05032-00 |
from US $1.51 |
||
|
3
|
3
4YR-26241-02-00
Grip (Left)
|
4YR-26241-02-00 |
— | ||
| replacement | |||||
|
3
|
3
4YR-26241-03-00 Grip |
4YR-26241-03-00 |
from US $9.10 |
||
|
4
|
4
BC3-26240-00-00 Grip Assy |
BC3-26240-00-00 |
US $38.27 |
||
|
5
|
5
5RU-26246-00-00 End, Grip |
5RU-26246-00-00 |
from US $13.82 |
||
|
6
|
6
BC3-26311-00-00 Cable, Throttle 1 |
BC3-26311-00-00 |
US $34.99 |
||
|
7
|
7
BC3-26312-00-00 Cable, Throttle 2 |
BC3-26312-00-00 |
US $25.08 |
||
|
8
|
8
98502-05020-00 Screw, Pan Head |
98502-05020-00 |
US $1.84 |
||
| replacement | |||||
|
8
|
8
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
9
|
9
BC3-26145-00-00 Cover, Handle Upper 2 |
BC3-26145-00-00 |
US $15.30 |
||
|
10
|
10
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
10
|
10
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $2.08 |
||
|
11
|
11
90167-05079-00 Screw, Tapping |
90167-05079-00 |
from US $1.66 |
||
|
12
|
12
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
13
|
13
BC3-26216-00-P1
Cap, Handlebar Cover
SMX |
BC3-26216-00-P1 |
— | ||
|
14
|
14
90109-05012-00 Bolt |
90109-05012-00 |
from US $3.10 |
||
|
15
|
15
BC3-26143-00-00 Cover, Handle Upper 1 |
BC3-26143-00-00 |
US $15.30 |
||
|
16
|
16
90167-05076-00 Screw, Tapping |
90167-05076-00 |
from US $1.66 |
||
|
17
|
17
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
18
|
18
901-83050-76-00
Nut,spring
|
901-83050-76-00 |
— | ||
| replacement | |||||
|
18
|
18
901-83050-A6-00 Nut, Spring |
901-83050-A6-00 |
from US $2.08 |
||
|
19
|
19
BC3-26217-00-00 Cap, Cover Handle 2 |
BC3-26217-00-00 |
US $35.37 |
||
|
20
|
20
8GC-2836B-02-00 Tuning Fork Mark |
8GC-2836B-02-00 |
from US $23.58 |
||
|
21
|
21
90167-05079-00 Screw, Tapping |
90167-05079-00 |
from US $1.66 |
||
|
22
|
22
BC3-2835X-00-00 Wire |
BC3-2835X-00-00 |
US $44.49 |
||
|
23
|
23
90464-16006-00 Clamp |
90464-16006-00 |
from US $1.81 |
||
|
24
|
24
BC3-26279-00-00 Guide, Cable |
BC3-26279-00-00 |
US $10.34 |
||
|
25
|
25
95D32-06012-00 BLOT, FLANGE DEEP RE |
95D32-06012-00 |
from US $1.07 |
||
|
26
|
26
4B5-26131-00-00 Guide, Cable 1 |
4B5-26131-00-00 |
from US $5.10 |
||
|
27
|
27
95D32-06010-00 BLOT, FLANGE DEEP RE |
95D32-06010-00 |
from US $1.03 |
||
|
28
|
28
90464-16006-00 Clamp |
90464-16006-00 |
from US $1.81 |
||
|
29
|
29
BC3-27982-00-00 Bracket, Wire |
BC3-27982-00-00 |
US $11.48 |
||
|
30
|
30
95D32-06012-00 BLOT, FLANGE DEEP RE |
95D32-06012-00 |
from US $1.07 |
||
