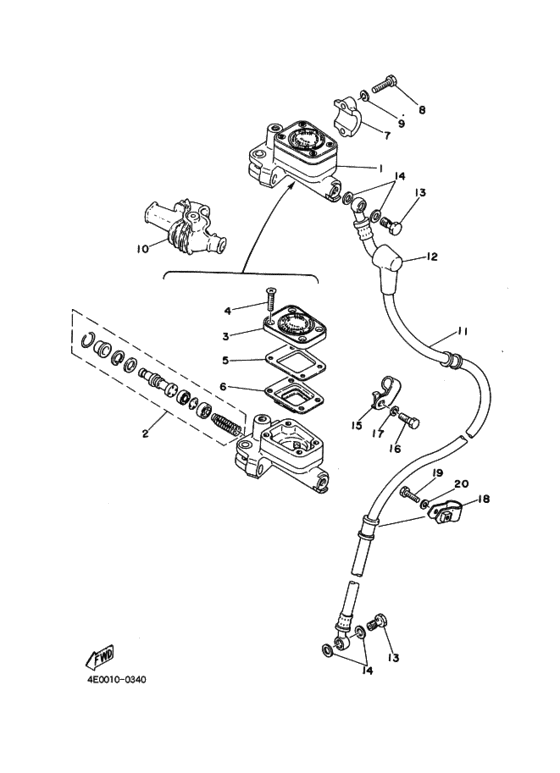

Front master cylinder Diagram Yamaha XS250
- Year
- 1980
- Colour
- Black Gold (BG; 00H9)
- Model code
- 4E00
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Note
- ; キャストホイール
- Model
- XS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3G1-25850-10-00
Master Cylinder Assy
|
3G1-25850-10-00 |
— | ||
|
2
|
2
535-W0041-60-00 Cylinder Kit, Master．シリンダキツト，マスタ; |
535-W0041-60-00 |
from US $168.70 |
||
|
3
|
3
1J3-25852-10-00
Cap, Reservoir
．キヤツプ，リザーバ; |
1J3-25852-10-00 |
— | ||
|
4
|
4
987-06050-30-00
Screw,flat Head
．スクリユ，フラツトヘツド; |
987-06050-30-00 |
— | ||
| replacement | |||||
|
4
|
4
987-07050-30-00
SCREW
．スクリユ，フラツトヘツド; |
987-07050-30-00 |
— | ||
|
5
|
5
1J3-25855-01-00
Gasket
．ブツシユ，ダイヤフラム; |
1J3-25855-01-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
．ブツシユ，ダイヤフラム; |
999-99999-99-00 |
— | ||
|
6
|
6
1J3-25854-01-00 Diaphram, Reservoir．ダイヤフラム，リザーバ; |
1J3-25854-01-00 |
from US $44.68 |
||
|
7
|
7
1J3-25867-00-00
Bracket, Master Cylinder (341-2
|
1J3-25867-00-00 |
— | ||
|
8
|
8
97326-06025-00 Bolt |
97326-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
9
|
9
929-06061-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-06100-00 Washer, Springワツシヤ，スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
10
|
10
1T5-26372-00-00 Cover, Handle Lever 1カバー，ハンドルレバー; |
1T5-26372-00-00 |
from US $14.29 |
||
|
11
|
11
3F9-25872-00-00
Hose, Brake 1
ホース，ブレーキ １; |
3F9-25872-00-00 |
— | ||
|
12
|
12
306-25862-00-00 Boot, Master Cylinderブーツ，マスタシリンダ; |
306-25862-00-00 |
from US $24.37 |
||
|
13
|
13
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
13
|
13
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
14
|
14
902-01101-18-00 Washer, Plateワツシヤ，プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
14
|
14
90201-108J9-00 Washer, Plateワツシヤ，プレート; |
90201-108J9-00 |
US $1.39 |
||
|
15
|
15
2L0-25875-00-00
Holder, Brke Hose 1
ホルダ，ブレーキホース １; |
2L0-25875-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
ホルダ，ブレーキホース １; |
999-99999-99-00 |
— | ||
|
16
|
16
97321-06012-00 Bolt |
97321-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
16
|
16
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
16
|
16
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
17
|
17
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
17
|
17
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
1L9-25876-00-00
Holder, Brke Hose 2
ホルダ，ブレーキホース ２; |
1L9-25876-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
ホルダ，ブレーキホース ２; |
999-99999-99-00 |
— | ||
|
19
|
19
97301-06025-00 Bolt |
97301-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
19
|
19
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
20
|
20
92901-06100-00 Washer, Springワツシヤ，スプリング; |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
20
|
20
929-95061-00-00 Washer, Springワツシヤ，スプリング; |
929-95061-00-00 |
from US $0.97 |
||
