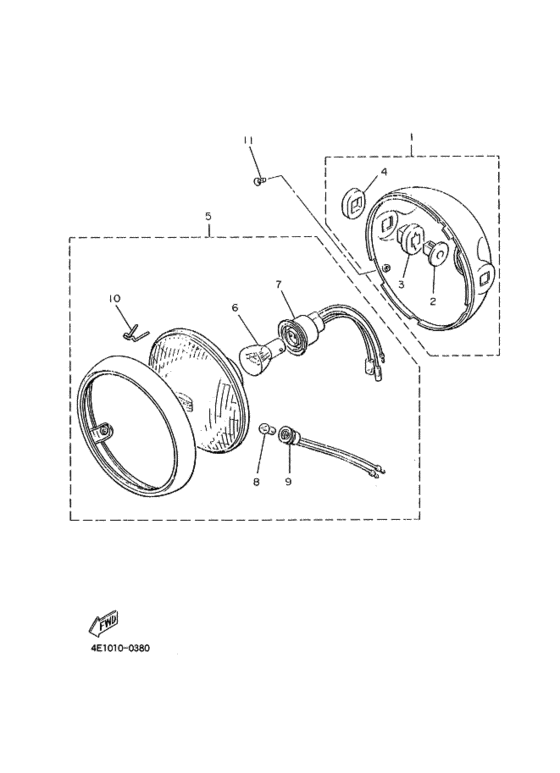

Headlight Diagram Yamaha XS250
- Year
- 1980
- Colour
- New Midnight Blue (NMB; 00J9)
- Model code
- 4E1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Note
- ; スポークホイール
- Model
- XS250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1A0-84330-60-93
Body Assembly
クロムメツキ |
1A0-84330-60-93 |
— | ||
|
2
|
2
498-84145-60-00 Collar, Body Fitting．カラ−，ボデ−フイツテイング; |
498-84145-60-00 |
from US $3.51 |
||
|
3
|
3
498-84163-60-00 Damper．ダンパ; |
498-84163-60-00 |
from US $4.14 |
||
|
4
|
4
498-84164-60-00 Damper．ダンパ; |
498-84164-60-00 |
from US $4.64 |
||
|
5
|
5
3W5-84310-70-00
Headlight Unit Assy
|
3W5-84310-70-00 |
— | ||
|
6
|
6
1A0-84314-01-00 Bulb (12V-45/45W)．バルブ; １２Ｖ−４５／４５Ｗ |
1A0-84314-01-00 |
US $7.03 |
||
|
7
|
7
1R6-84112-30-00
Socket
．ソケツト; |
1R6-84112-30-00 |
— | ||
| replacement | |||||
|
7
|
7
1A0-84312-01-00
Socket Assy
．ソケツト; |
1A0-84312-01-00 |
— | ||
|
8
|
8
123-83516-21-00 Bulb (12V3.4W)．バルブ; １２Ｖ−３．４Ｗ |
123-83516-21-00 |
from US $3.14 |
||
| replacement | |||||
|
8
|
8
123-83516-21-XX Bulb (12V-3.4W)．バルブ; １２Ｖ−３．４Ｗ |
123-83516-21-XX |
US $63.70 |
||
|
9
|
9
1R6-84146-30-00
Socket Cord Assy
．ソケツトコ−ドアセンブリ; |
1R6-84146-30-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
．ソケツトコ−ドアセンブリ; |
999-99999-99-00 |
— | ||
|
10
|
10
290-84124-21-00 Spring, Set．スプリング，セツト; |
290-84124-21-00 |
from US $4.79 |
||
|
11
|
11
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.50 |
||
