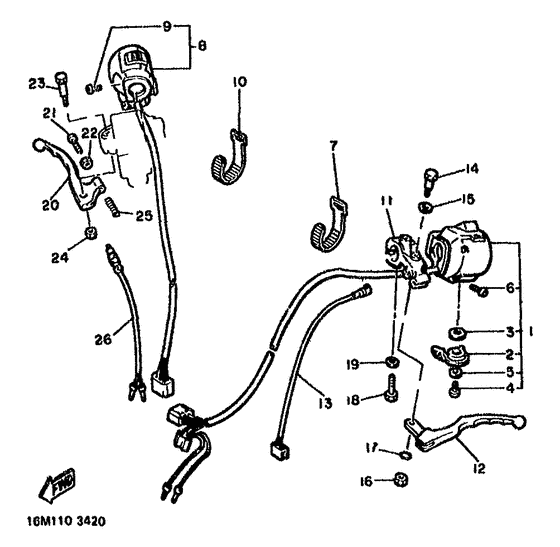

Handle switch & lever Diagram Yamaha XS400
- Year
- 1982
- Model code
- 12E
- Sales region
- Europe (General) (999)
- Engine Capacity
- 400
- Model
- XS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11U-83972-00-00
Switch, Handle 4
|
11U-83972-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
10M-83941-00-00 Lever, Starter |
10M-83941-00-00 |
from US $13.18 |
||
|
3
|
3
90209-10131-00 Washer |
90209-10131-00 |
from US $1.84 |
||
|
4
|
4
92501-06008-00 Screw, Pan Head |
92501-06008-00 |
US $1.56 |
||
| replacements | |||||
|
4
|
4
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
4
|
4
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
|
5
|
5
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
6
|
6
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
6
|
6
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
7
|
7
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
7
|
7
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
8
|
8
11U-83963-00-00
Switch, Handle 3
|
11U-83963-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
9
|
9
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
10
|
10
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
10
|
10
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
11
|
11
11U-82911-00-00 Holder, Lever 1 |
11U-82911-00-00 |
from US $53.74 |
||
|
12
|
12
11U-83912-00-00 Lever L |
11U-83912-00-00 |
from US $22.59 |
||
|
13
|
13
3Y6-82917-00-00 Front Stop Switch Assy |
3Y6-82917-00-00 |
US $23.80 |
||
| replacement | |||||
|
13
|
13
5H0-83980-09-00 Front Stop Switch Assy |
5H0-83980-09-00 |
from US $28.02 |
||
|
14
|
14
90109-06576-00 Bolt |
90109-06576-00 |
from US $4.11 |
||
| replacements | |||||
|
14
|
14
90109-06017-00 Bolt |
90109-06017-00 |
from US $4.11 |
||
|
14
|
14
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
15
|
15
90201-082A9-00 Washer, Plate |
90201-082A9-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
16
|
16
95606-06100-00 Nut, U |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
16
|
16
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
17
|
17
93210-11368-00 O-Ring (2H7) |
93210-11368-00 |
from US $3.54 |
||
|
18
|
18
97306-06022-00 Bolt |
97306-06022-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
97007-06022-00 Bolt |
97007-06022-00 |
from US $1.56 |
||
|
19
|
19
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
20
|
20
2J2-83922-00-00 Lever 2 |
2J2-83922-00-00 |
from US $23.09 |
||
| replacement | |||||
|
20
|
20
4L0-83922-00-00 Lever Rh |
4L0-83922-00-00 |
from US $23.09 |
||
|
21
|
21
90149-06131-00 Screw |
90149-06131-00 |
from US $2.08 |
||
|
22
|
22
90170-06010-00 Nut |
90170-06010-00 |
from US $2.35 |
||
|
23
|
23
90109-06465-00 Bolt |
90109-06465-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
24
|
24
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
24
|
24
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
25
|
25
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
26
|
26
1A0-83980-30-00
Front Stop Switch Assy
|
1A0-83980-30-00 |
— | ||
| replacement | |||||
|
26
|
26
26H-83980-00-00 Front Stop Switch Assy |
26H-83980-00-00 |
from US $64.66 |
||
