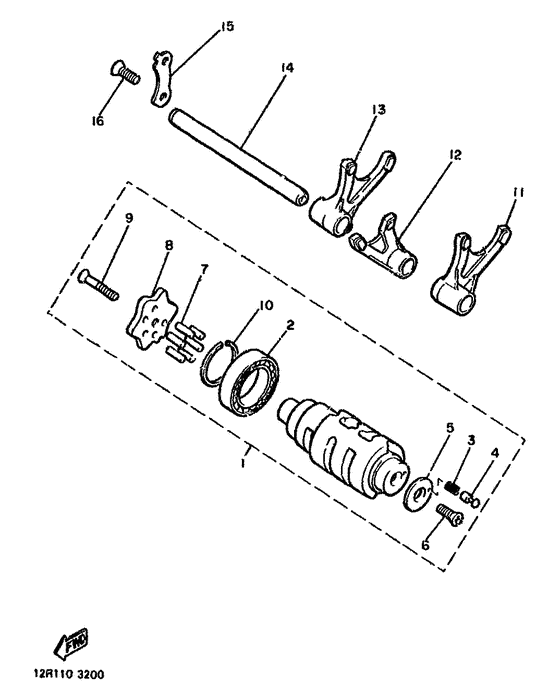

Shift Cam & Fork Diagram Yamaha XS400
- Year
- 1982
- Model code
- 12E
- Sales region
- Europe (General) (999)
- Engine Capacity
- 400
- Model
- XS400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16M-18540-00-00
Shift Cam Assembly
|
16M-18540-00-00 |
— | ||
|
2
|
2
93306-90602-00 Bearing |
93306-90602-00 |
from US $34.26 |
||
|
3
|
3
90501-06022-00 Spring, Compression |
90501-06022-00 |
from US $1.70 |
||
|
4
|
4
278-18542-00-00 Point, Neutral |
278-18542-00-00 |
from US $1.94 |
||
| replacement | |||||
|
4
|
4
4UN-18542-00-00 Point, Neutral |
4UN-18542-00-00 |
from US $1.94 |
||
|
5
|
5
278-18566-00-00
Plate, Side 2
|
278-18566-00-00 |
— | ||
|
6
|
6
98701-05016-00 Screw, Flat Head |
98701-05016-00 |
from US $1.42 |
||
| replacements | |||||
|
6
|
6
98707-05016-00 Screw, Flat Head |
98707-05016-00 |
from US $1.35 |
||
|
6
|
6
90151-05055-00 Screw, Countersunk(3Ac) |
90151-05055-00 |
from US $2.27 |
||
|
7
|
7
93604-22050-00 Pin, Dowel |
93604-22050-00 |
from US $1.84 |
||
|
8
|
8
12R-18185-00-00
Segment
|
12R-18185-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90151-06017-00
Screw, Countersunk
|
90151-06017-00 |
— | ||
|
10
|
10
93440-30077-00 Circlip |
93440-30077-00 |
from US $1.70 |
||
|
11
|
11
12R-18511-00-00
Fork, Shift 1
|
12R-18511-00-00 |
— | ||
|
12
|
12
12R-18512-00-00
Fork, Shift 2
|
12R-18512-00-00 |
— | ||
|
13
|
13
12R-18513-00-00
Fork, Shift 3
|
12R-18513-00-00 |
— | ||
|
14
|
14
12R-18531-00-00
Bar, Shif Frk Gde 1
|
12R-18531-00-00 |
— | ||
|
15
|
15
12R-18536-00-00
Stopper, Shift Bar
|
12R-18536-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
92701-06015-00 Screw, Flat Head |
92701-06015-00 |
from US $2.27 |
||
| replacements | |||||
|
16
|
16
98707-06014-00 Screw, Flat |
98707-06014-00 |
from US $2.27 |
||
|
16
|
16
98707-06016-00 Screw, Flat Head |
98707-06016-00 |
from US $1.56 |
||
