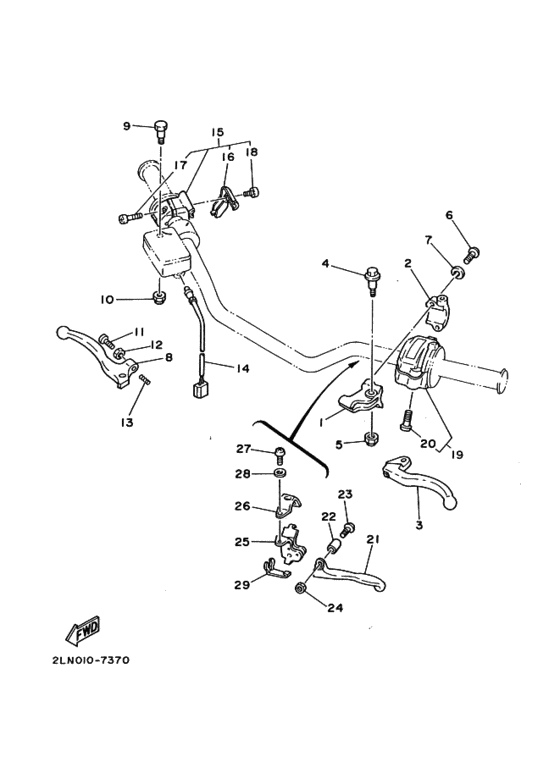

Handle switch & lever Diagram Yamaha XT225 Serow
- Year
- 1987
- Colour
- Forest Green (FGE; 00MU)
- Model code
- 2LN0
- Sales region
- Japan (010)
- Engine Capacity
- 225
- Color Variant
- A
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33G-82911-00-00 Holder, Lever 1ホルダ，レバー １; |
33G-82911-00-00 |
from US $33.44 |
||
| replacement | |||||
|
1
|
1
1LN-82911-00-00 Holder, Lever 1ホルダ，レバー １; |
1LN-82911-00-00 |
from US $36.90 |
||
|
2
|
2
33G-82913-00-00
Holder, Lever Lower 1
ホルダ，レバーロワ １; |
33G-82913-00-00 |
— | ||
| replacement | |||||
|
2
|
2
33G-82913-01-00 Holder, Lever Lower 1ホルダ，レバーロワ １; |
33G-82913-01-00 |
from US $18.03 |
||
|
3
|
3
1KH-83912-00-00 Lever 1レバー １; |
1KH-83912-00-00 |
US $21.68 |
||
| replacement | |||||
|
3
|
3
1NV-83912-02-00 Lever, Leftレバー １; |
1NV-83912-02-00 |
from US $17.48 |
||
|
4
|
4
90109-06798-00 Bolt |
90109-06798-00 |
from US $2.36 |
||
| replacement | |||||
|
4
|
4
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
5
|
5
95606-06100-00 Nut, Uナツト，Ｕ; |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
5
|
5
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
6
|
6
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
6
|
6
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
7
|
7
929-06051-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-06051-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
8
|
8
1KH-83922-01-00 Lever 2レバー ２; |
1KH-83922-01-00 |
from US $22.84 |
||
| replacement | |||||
|
8
|
8
3YR-83922-02-00 Lever, Rightレバー ２; |
3YR-83922-02-00 |
from US $18.80 |
||
|
9
|
9
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
10
|
10
95606-06100-00 Nut, Uナツト，Ｕ; |
95606-06100-00 |
US $1.21 |
||
| replacement | |||||
|
10
|
10
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
11
|
11
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
12
|
12
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
13
|
13
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
14
|
14
34X-83980-01-00 Stop Switch Asy |
34X-83980-01-00 |
from US $32.94 |
||
| replacement | |||||
|
14
|
14
3YF-83980-00-00 Front Stop Switch Assy |
3YF-83980-00-00 |
from US $41.45 |
||
|
15
|
15
47J-83976-00-00
Switch, Handle 1
|
47J-83976-00-00 |
— | ||
| replacement | |||||
|
15
|
15
47J-83976-01-00
Switch, Handle 1
|
47J-83976-01-00 |
— | ||
|
16
|
16
33G-83956-00-00
Cap 1
．キヤツプ １; |
33G-83956-00-00 |
— | ||
| replacement | |||||
|
16
|
16
33G-83956-01-00
Cap 1
．キヤツプ １; |
33G-83956-01-00 |
— | ||
|
17
|
17
98506-05020-00 Screw, Pan Head．スクリユ，パンヘツド; |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
17
|
17
98517-05020-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05020-00 |
from US $1.70 |
||
|
18
|
18
98906-04008-00 Screw, Bind．スクリユ，バインド; |
98906-04008-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
98907-04008-00 Screw, Binding．スクリユ，バインド; |
98907-04008-00 |
from US $1.56 |
||
|
19
|
19
1KH-83972-01-00
Switch, Handle 4
|
1KH-83972-01-00 |
— | ||
|
20
|
20
985-06050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-06050-30-00 |
— | ||
| replacement | |||||
|
20
|
20
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
21
|
21
583-83981-00-00 Lever, Decompressionレバー，デコンプ; |
583-83981-00-00 |
from US $18.99 |
||
|
22
|
22
583-83913-00-00 Collar, Lever 1カラー，デコンプレツシヨンレバー; |
583-83913-00-00 |
from US $2.83 |
||
| replacement | |||||
|
22
|
22
5BE-83913-00-00 Collar, Lever 1カラー，デコンプレツシヨンレバー; |
5BE-83913-00-00 |
from US $2.83 |
||
|
23
|
23
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
23
|
23
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
23
|
23
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
24
|
24
95601-05100-00 Nut, Uナツト，Ｕ; |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
24
|
24
95617-05100-00 Nut, Uナツト，Ｕ; |
95617-05100-00 |
from US $2.22 |
||
|
25
|
25
1KH-82912-00-00 Holder, Lever Upper 1ホルダ，レバーアツパ １; |
1KH-82912-00-00 |
US $42.79 |
||
| replacement | |||||
|
25
|
25
1NL-82912-00-00 Holder, Lever Upper 1ホルダ，レバーアツパ １; |
1NL-82912-00-00 |
from US $12.94 |
||
|
26
|
26
1KH-82913-00-00
Holder, Lever Lower 1
ホルダ，レバーロワ １; |
1KH-82913-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
ホルダ，レバーロワ １; |
999-99999-99-00 |
— | ||
|
27
|
27
92506-06010-00 Screw |
92506-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
27
|
27
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
|
28
|
28
929-06066-00-00
Washer
ワツシヤ，プレート; |
929-06066-00-00 |
— | ||
| replacement | |||||
|
28
|
28
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
29
|
29
1KH-26257-00-00
Stopper
|
1KH-26257-00-00 |
— | ||
