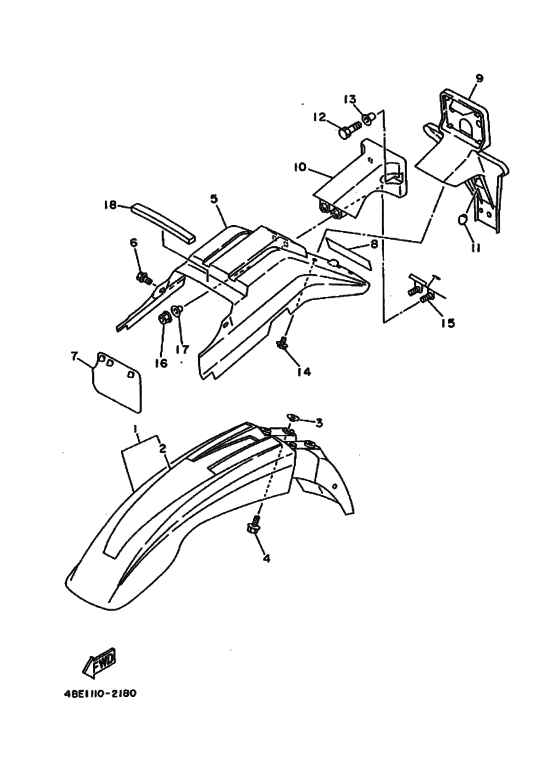

Fender Diagram Yamaha XT225 XT225
- Year
- 1992
- Colour
- White (WW; 0036)
- Model code
- 4BE3
- Sales region
- Europe (010)
- Engine Capacity
- 225
- Color Variant
- A
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3RW-Y2151-20-00 Front Fender CompFRENCH BLUE |
3RW-Y2151-20-00 |
US $58.10 |
||
| replacement | |||||
|
1
|
1
3RW-21511-30-00
Fender, Frt
FRENCH BLUE |
3RW-21511-30-00 |
— | ||
|
2
|
2
3RW-21570-20-00
Grphc Set, Frt Fndr Front Fe
|
3RW-21570-20-00 |
— | ||
|
3
|
3
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
3
|
3
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
4
|
4
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
5
|
5
3RW-21611-00-00
Fender,rear
|
3RW-21611-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99032-83-00
SEAL 3
|
999-99032-83-00 |
— | ||
|
6
|
6
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
6
|
6
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
6
|
6
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
7
|
7
34X-21691-00-00 Flap |
34X-21691-00-00 |
from US $17.57 |
||
|
8
|
8
3LT-24786-11-00 Emblem, Yamaha |
3LT-24786-11-00 |
from US $7.65 |
||
| replacements | |||||
|
8
|
8
3WF-2153E-10-00 Emblem, Yamaha |
3WF-2153E-10-00 |
from US $7.65 |
||
|
8
|
8
3WF-2153E-11-00 |
3WF-2153E-11-00 |
from US $7.65 |
||
|
9
|
9
4BE-84551-00-00 Bracket, License |
4BE-84551-00-00 |
from US $119.21 |
||
|
10
|
10
4BE-84527-00-00 Damper |
4BE-84527-00-00 |
from US $48.05 |
||
|
11
|
11
42U-21639-00-00 Damper 2 |
42U-21639-00-00 |
from US $2.98 |
||
|
12
|
12
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
12
|
12
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
13
|
13
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
14
|
14
95811-06016-00 Bolt, Flange |
95811-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
15
|
15
4BE-21637-00-00 Clamp, Wire |
4BE-21637-00-00 |
from US $27.49 |
||
|
16
|
16
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
17
|
17
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
17
|
17
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
18
|
18
3RW-21639-00-00 Damper 2 |
3RW-21639-00-00 |
US $9.76 |
||
