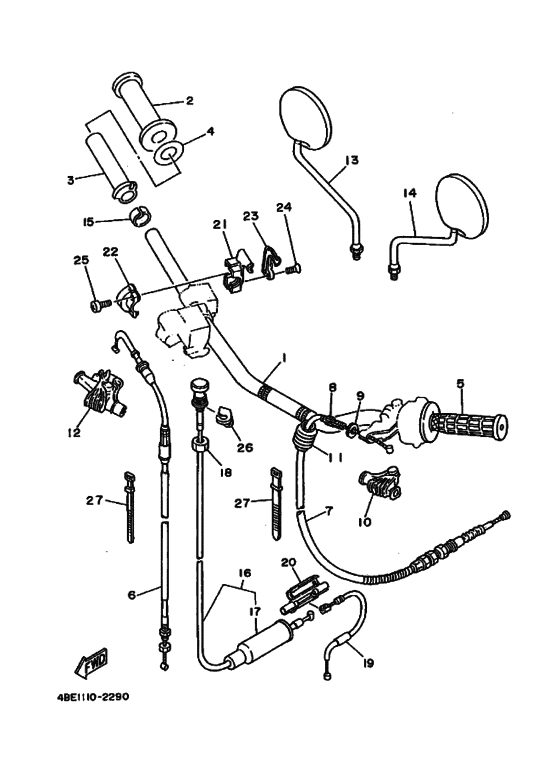

Steering handle & cable Diagram Yamaha XT225 XT225
- Year
- 1992
- Colour
- White (WW; 0036)
- Model code
- 4BE3
- Sales region
- Europe (010)
- Engine Capacity
- 225
- Color Variant
- A
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BE-26111-00-00 Handlebar |
4BE-26111-00-00 |
from US $69.35 |
||
| replacement | |||||
|
1
|
1
4BE-26111-01-00 Handlebar |
4BE-26111-01-00 |
from US $99.89 |
||
|
2
|
2
33G-26242-00-00 Grip (Right) |
33G-26242-00-00 |
from US $14.88 |
||
| replacement | |||||
|
2
|
2
33G-26242-01-00 Grip (Right) |
33G-26242-01-00 |
from US $14.09 |
||
|
3
|
3
434-26243-12-00 Tube, Throttle Guide |
434-26243-12-00 |
from US $12.62 |
||
|
4
|
4
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
5
|
5
33G-26241-00-00 Grip (Left) |
33G-26241-00-00 |
from US $21.05 |
||
| replacement | |||||
|
5
|
5
33G-26241-01-00 Grip (Left) |
33G-26241-01-00 |
from US $19.94 |
||
|
6
|
6
3RW-26311-01-00 Cable, Throttle 1 |
3RW-26311-01-00 |
from US $54.59 |
||
| replacement | |||||
|
6
|
6
3RW-26311-10-00 Cable, Throttle 1 |
3RW-26311-10-00 |
from US $58.86 |
||
|
7
|
7
3RW-26335-00-00 Cable, clutch |
3RW-26335-00-00 |
from US $30.18 |
||
| replacement | |||||
|
7
|
7
5EK-26335-00-00 Cable, clutch |
5EK-26335-00-00 |
from US $30.18 |
||
|
8
|
8
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
8
|
8
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
9
|
9
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
9
|
9
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
10
|
10
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
11
|
11
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
12
|
12
1T5-26372-00-00 Cover, Handle Lever 1 |
1T5-26372-00-00 |
from US $14.29 |
||
|
13
|
13
3Y1-26290-00-00 Back Mirror Assy (R.h) |
3Y1-26290-00-00 |
from US $17.18 |
||
|
14
|
14
5Y1-26290-10-00 Back Mirror Assy (L.h) |
5Y1-26290-10-00 |
from US $35.99 |
||
| replacement | |||||
|
14
|
14
5Y1-26290-11-00 MIRROR ASSY., 2 |
5Y1-26290-11-00 |
from US $35.99 |
||
|
15
|
15
90387-22660-00 Collar |
90387-22660-00 |
from US $1.84 |
||
|
16
|
16
1VJ-26331-01-00 Starter Cable Assy |
1VJ-26331-01-00 |
from US $53.39 |
||
| replacements | |||||
|
16
|
16
2TY-F6330-00-00
Starter Cable Assy
|
2TY-F6330-00-00 |
— | ||
|
16
|
16
1VJ-26331-04-00
Cable, Starter 1
|
1VJ-26331-04-00 |
— | ||
|
16
|
16
1VJ-26331-05-00 Cable, Starter 1 |
1VJ-26331-05-00 |
US $36.61 |
||
|
17
|
17
1YU-26329-00-00 Cap, Rubber |
1YU-26329-00-00 |
from US $9.28 |
||
|
18
|
18
1VJ-26333-00-00 Nut |
1VJ-26333-00-00 |
from US $3.47 |
||
|
19
|
19
3RW-26334-00-00 Cable, Starter 2 |
3RW-26334-00-00 |
from US $22.95 |
||
|
20
|
20
53L-26261-01-00 Connector, Cable |
53L-26261-01-00 |
from US $11.33 |
||
|
21
|
21
38V-26281-00-98 Cap, Grip UpperLOW GLOSS BLACK |
38V-26281-00-98 |
from US $29.04 |
||
|
22
|
22
493-26282-00-98 Cap, Grip UnderLOW GLOSS BLACK |
493-26282-00-98 |
from US $37.44 |
||
|
23
|
23
38V-2628H-00-00 Cap, Wire |
38V-2628H-00-00 |
from US $8.22 |
||
|
24
|
24
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
24
|
24
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
25
|
25
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
25
|
25
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
25
|
25
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
26
|
26
4BE-2637G-00-00 Holder, Wire |
4BE-2637G-00-00 |
from US $19.46 |
||
| replacement | |||||
|
26
|
26
4BE-2637G-10-00 Holder, Wire |
4BE-2637G-10-00 |
from US $21.11 |
||
|
27
|
27
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
