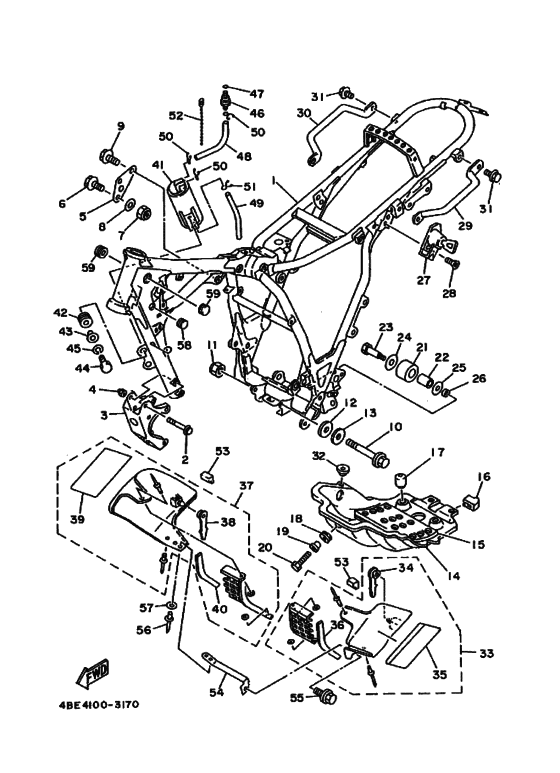

Frame Diagram Yamaha XT225 XT225
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BE6
- Sales region
- Europe (010)
- Engine Capacity
- 225
- Color Variant
- A
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BE-21110-10-UJ Frame CompUR RADICAL WHITE |
4BE-21110-10-UJ |
US $1,578.17 |
||
| replacements | |||||
|
1
|
1
999-99999-99-00
Not Available
UR RADICAL WHITE |
999-99999-99-00 |
— | ||
|
1
|
1
4FD-21110-00-UJ Frame CompUR RADICAL WHITE |
4FD-21110-00-UJ |
US $759.10 |
||
|
1
|
1
4BE-21110-00-UJ
Frame Comp. 1
UR RADICAL WHITE |
4BE-21110-00-UJ |
— | ||
|
2
|
2
91011-08065-00 Bolt, Flange |
91011-08065-00 |
US $3.54 |
||
| replacements | |||||
|
2
|
2
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $5.97 |
||
|
2
|
2
95814-08065-00 Bolt, Flange |
95814-08065-00 |
from US $3.89 |
||
|
3
|
3
4BE-21316-00-UJ
Stay, Engine
RADICAL WHITE |
4BE-21316-00-UJ |
— | ||
|
4
|
4
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
4
|
4
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
5
|
5
1KH-21315-00-00 Stay, Engine 1 |
1KH-21315-00-00 |
from US $10.63 |
||
| replacement | |||||
|
5
|
5
1KH-21315-01-00 Stay, Engine 1 |
1KH-21315-01-00 |
from US $10.63 |
||
|
6
|
6
95811-08050-00 Bolt, Flange (26H) |
95811-08050-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
95817-08050-00 Bolt, Flange |
95817-08050-00 |
from US $1.66 |
||
|
7
|
7
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
8
|
8
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
9
|
9
90105-08408-00 Bolt, Flange |
90105-08408-00 |
from US $3.68 |
||
| replacements | |||||
|
9
|
9
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
9
|
9
90105-08066-00 Bolt, Flange |
90105-08066-00 |
from US $3.68 |
||
|
10
|
10
90105-08024-00 Bolt, Flange |
90105-08024-00 |
from US $5.10 |
||
|
11
|
11
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
11
|
11
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
12
|
12
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
13
|
13
92901-08800-00 Washer, Wave |
92901-08800-00 |
from US $1.35 |
||
| replacement | |||||
|
13
|
13
92907-08800-00 Washer |
92907-08800-00 |
from US $1.40 |
||
|
14
|
14
3RW-21471-00-00
Protector, Engine
|
3RW-21471-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4VW-21471-00-00
Protector, Engine
|
4VW-21471-00-00 |
— | ||
|
15
|
15
1KH-21485-00-00 Damper, Rubber 1 |
1KH-21485-00-00 |
from US $56.92 |
||
|
16
|
16
36X-21485-00-00 Damper, Rubber 1 |
36X-21485-00-00 |
from US $8.74 |
||
|
17
|
17
34L-21485-00-00 Damper, Rubber 1 |
34L-21485-00-00 |
from US $8.78 |
||
|
18
|
18
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
19
|
19
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
20
|
20
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
20
|
20
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
21
|
21
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
22
|
22
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.60 |
||
|
23
|
23
90109-08705-00 Bolt |
90109-08705-00 |
from US $10.13 |
||
|
24
|
24
902-01134-09-00
Washer, Plate
|
902-01134-09-00 |
— | ||
| replacement | |||||
|
24
|
24
902-01133-P2-00 Washer, Plate(3Rr) |
902-01133-P2-00 |
from US $4.03 |
||
|
25
|
25
90201-08753-00 Washer, Plate |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
25
|
25
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $2.22 |
||
|
26
|
26
90387-085E1-00 Collar |
90387-085E1-00 |
from US $2.91 |
||
|
27
|
27
55E-21308-00-00 Helmet Hanger Assy |
55E-21308-00-00 |
from US $59.13 |
||
| replacement | |||||
|
27
|
27
5H0-21308-01-00 Helmet Hanger Assy |
5H0-21308-01-00 |
from US $59.13 |
||
|
28
|
28
90151-06025-00 Screw, Countersunk |
90151-06025-00 |
from US $1.98 |
||
|
29
|
29
4BE-21165-10-00 Handle, Standing |
4BE-21165-10-00 |
US $56.07 |
||
| replacement | |||||
|
29
|
29
4JG-21165-20-00 Handle, Standing |
4JG-21165-20-00 |
US $51.95 |
||
|
30
|
30
4BE-21275-10-00 Stay, Rear |
4BE-21275-10-00 |
US $75.98 |
||
|
31
|
31
91001-08016-00 Bolt, Flange |
91001-08016-00 |
from US $1.21 |
||
| replacements | |||||
|
31
|
31
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.39 |
||
|
31
|
31
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
32
|
32
2J5-21732-00-00 Seal 1 |
2J5-21732-00-00 |
from US $7.49 |
||
|
33
|
33
3RW-Y217W-A0-00
Scoop Comp, 1 Purpl
UR FOR U.S.A |
3RW-Y217W-A0-00 |
— | ||
|
33
|
33
3RW-Y217W-C0-00
Scoop Comp, Air 1
UR FOR CANADA |
3RW-Y217W-C0-00 |
— | ||
|
34
|
34
90480-14448-00 Grommet |
90480-14448-00 |
from US $12.04 |
||
|
35
|
35
3RW-24246-71-00 Graphic, Fuel Tank3UR FOR U.S.A |
3RW-24246-71-00 |
US $45.23 |
||
|
35
|
35
3RW-24246-91-00
Graphic 3
UR FOR CANADA |
3RW-24246-91-00 |
— | ||
|
36
|
36
3RW-2139U-00-00 Damper 2 |
3RW-2139U-00-00 |
US $3.38 |
||
|
37
|
37
4BE-Y217X-10-00
Scoop Comp, Air 2
UR FOR U.S.A |
4BE-Y217X-10-00 |
— | ||
|
37
|
37
4BE-Y217X-20-00
Scoop Comp., Air 2
UR FOR CANADA |
4BE-Y217X-20-00 |
— | ||
|
38
|
38
90480-14448-00 Grommet |
90480-14448-00 |
from US $12.04 |
||
|
39
|
39
3RW-24247-71-00
Graphic
UR FOR U.S.A |
3RW-24247-71-00 |
— | ||
|
39
|
39
3RW-24247-91-00
Graphic
UR FOR CANADA |
3RW-24247-91-00 |
— | ||
|
40
|
40
3RW-2139X-00-00
Damper
|
3RW-2139X-00-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
4BE-24170-00-00 Canister AssyFOR CALIF. |
4BE-24170-00-00 |
US $355.43 |
||
|
42
|
42
90480-15342-00 GrommetFOR CALIF. |
90480-15342-00 |
from US $1.07 |
||
|
43
|
43
90387-063G3-00 CollarFOR CALIF. |
90387-063G3-00 |
from US $6.52 |
||
|
44
|
44
970-11060-25-00
Bolt
FOR CALIF. |
970-11060-25-00 |
— | ||
| replacement | |||||
|
44
|
44
970-17060-25-00 BoltFOR CALIF. |
970-17060-25-00 |
from US $1.36 |
||
|
45
|
45
929-06061-00-00
Washer, Spring
FOR CALIF. |
929-06061-00-00 |
— | ||
| replacement | |||||
|
45
|
45
92907-06100-00 Washer, SpringFOR CALIF. |
92907-06100-00 |
from US $0.88 |
||
|
46
|
46
20K-24180-00-00 Roll Over Valve AssyFOR CALIF. |
20K-24180-00-00 |
from US $35.37 |
||
|
47
|
47
932-10101-66-00
O-Ring
FOR CALIF. |
932-10101-66-00 |
— | ||
| replacement | |||||
|
47
|
47
93210-11453-00 O-RingFOR CALIF. |
93210-11453-00 |
from US $1.84 |
||
|
48
|
48
90445-10638-00 Hose (L110)FOR CALIF. |
90445-10638-00 |
from US $3.68 |
||
| replacement | |||||
|
48
|
48
904-45107-52-00 Hose (L170)FOR CALIF. |
904-45107-52-00 |
from US $4.03 |
||
|
49
|
49
904-45110-F5-00 Hose (L210)FOR CALIF. |
904-45110-F5-00 |
from US $5.81 |
||
|
50
|
50
904-67090-06-00
Clip
FOR CALIF. |
904-67090-06-00 |
— | ||
| replacement | |||||
|
50
|
50
904-67090-A2-00 ClipFOR CALIF. |
904-67090-A2-00 |
from US $1.66 |
||
|
51
|
51
90467-11102-00 Clip, ScissorFOR CALIF. |
90467-11102-00 |
from US $1.28 |
||
| replacement | |||||
|
51
|
51
90467-11106-00 ClipFOR CALIF. |
90467-11106-00 |
from US $1.39 |
||
|
52
|
52
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
53
|
53
90480-16185-00 Grommet |
90480-16185-00 |
from US $3.12 |
||
|
54
|
54
4BE-2139T-00-00 Bracket, Cover |
4BE-2139T-00-00 |
from US $14.04 |
||
|
55
|
55
901-19060-43-00
Bolt, With Washer
|
901-19060-43-00 |
— | ||
| replacement | |||||
|
55
|
55
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
56
|
56
90267-40075-00 Rivet, Blind |
90267-40075-00 |
from US $1.42 |
||
| replacement | |||||
|
56
|
56
902-67400-80-00
Rivet, Blind (5H0)
|
902-67400-80-00 |
— | ||
|
57
|
57
90201-040P8-00 Washer, Plate |
90201-040P8-00 |
from US $1.80 |
||
| replacement | |||||
|
57
|
57
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
58
|
58
90338-15202-00 Plug (2Gh) |
90338-15202-00 |
from US $3.54 |
||
|
59
|
59
90338-24177-00 Plug |
90338-24177-00 |
from US $3.54 |
||
| replacement | |||||
|
59
|
59
90338-24260-00 Plug |
90338-24260-00 |
from US $3.54 |
||
