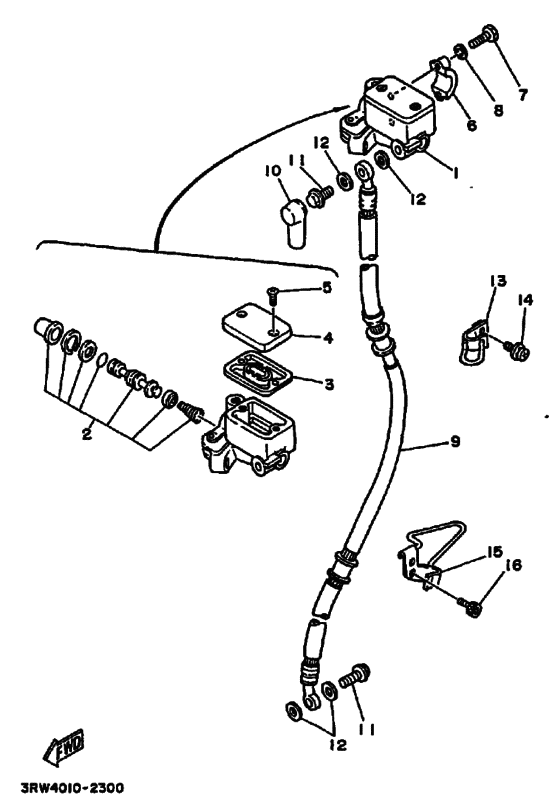

Front master cylinder Diagram Yamaha XT225 XT225
- Year
- 1993
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BE6
- Sales region
- Europe (010)
- Engine Capacity
- 225
- Color Variant
- A
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3RW-25870-01-00 Master Cylinder Sub Assy |
3RW-25870-01-00 |
from US $195.53 |
||
| replacement | |||||
|
1
|
1
4GY-25870-02-00 Master Cylinder Sub Assy |
4GY-25870-02-00 |
from US $216.91 |
||
|
2
|
2
3RW-W0041-02-00 Cylinder Kit, Master |
3RW-W0041-02-00 |
from US $44.22 |
||
| replacements | |||||
|
2
|
2
5CG-W0041-00-00 Cylinder Kit, Master |
5CG-W0041-00-00 |
from US $45.11 |
||
|
2
|
2
5RS-25807-03-00 Cylinder Kit, Master |
5RS-25807-03-00 |
from US $45.11 |
||
|
3
|
3
3RW-25854-00-00 Diaphragm, Reservoir |
3RW-25854-00-00 |
from US $11.29 |
||
|
4
|
4
3RW-25852-00-00 Cap, Reservoir |
3RW-25852-00-00 |
from US $21.39 |
||
| replacement | |||||
|
4
|
4
4GY-25852-01-00 Cap, Reservoir |
4GY-25852-01-00 |
from US $21.39 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
9
|
9
3RW-25872-01-00 Hose,brake 1 |
3RW-25872-01-00 |
from US $118.96 |
||
| replacement | |||||
|
9
|
9
999-99024-91-00 Brake Hose Set(3Rw) |
999-99024-91-00 |
from US $88.78 |
||
|
10
|
10
4L0-25862-00-00 Boot, Master Cylinder |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
10
|
10
4L0-25862-01-00 Boot, Master Cylinder |
4L0-25862-01-00 |
from US $10.34 |
||
|
11
|
11
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
11
|
11
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
12
|
12
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
12
|
12
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
13
|
13
3RW-25875-00-00 Holder, Brake Hose 1 |
3RW-25875-00-00 |
from US $16.43 |
||
|
14
|
14
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
14
|
14
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
15
|
15
34X-25876-00-00 Holder, Brake Hose 2 |
34X-25876-00-00 |
from US $12.61 |
||
|
16
|
16
913-16060-10-00
Bolt, Socket Head
|
913-16060-10-00 |
— | ||
| replacement | |||||
|
16
|
16
91317-06010-00 Bolt |
91317-06010-00 |
from US $1.07 |
||
