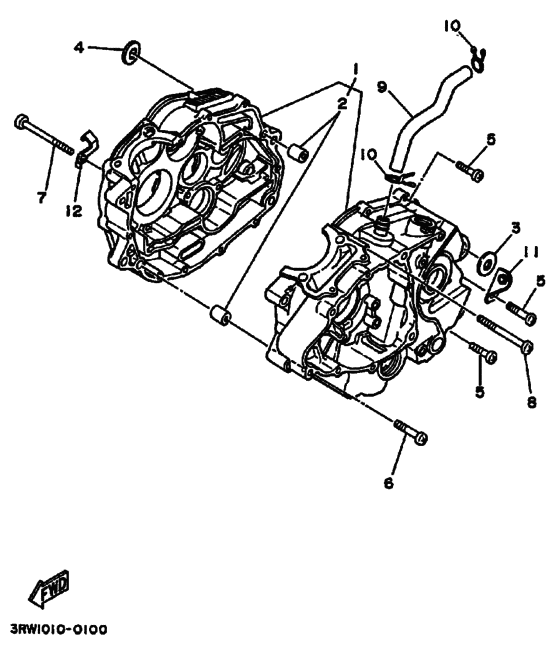

Crankcase Diagram Yamaha XT225 XT225
- Year
- 1994
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BE9
- Sales region
- Europe (010)
- Engine Capacity
- 225
- Color Variant
- A
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3RW-15100-00-00
Crankcase Asy
|
3RW-15100-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99030-13-00
Crankcase Assy
|
999-99030-13-00 |
— | ||
|
2
|
2
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
3
|
3
90387-125F1-00 Collar |
90387-125F1-00 |
from US $4.23 |
||
|
4
|
4
90387-125F1-00 Collar |
90387-125F1-00 |
from US $4.23 |
||
|
5
|
5
985-80060-30-00
Screw Pan Head
|
985-80060-30-00 |
— | ||
| replacement | |||||
|
5
|
5
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
6
|
6
98506-06040-00 Screw, Pan Head |
98506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
7
|
7
98506-06090-00 Screw, Pan Head |
98506-06090-00 |
from US $2.13 |
||
| replacement | |||||
|
7
|
7
98507-06090-00 Screw, Pan |
98507-06090-00 |
from US $2.04 |
||
|
8
|
8
98506-06085-00 Screw, Pan Head |
98506-06085-00 |
from US $3.97 |
||
| replacement | |||||
|
8
|
8
98507-06085-00 Screw, Pan Head |
98507-06085-00 |
from US $3.97 |
||
|
9
|
9
1KH-11166-01-00 Pipe, Breather 1 |
1KH-11166-01-00 |
from US $17.85 |
||
|
10
|
10
90467-14015-00 Clip |
90467-14015-00 |
from US $1.81 |
||
|
11
|
11
90465-08200-00 Clamp |
90465-08200-00 |
from US $3.83 |
||
|
12
|
12
90462-08193-00 Clamp |
90462-08193-00 |
from US $4.82 |
||
| replacement | |||||
|
12
|
12
90462-08224-00 Clamp |
90462-08224-00 |
from US $4.82 |
||
