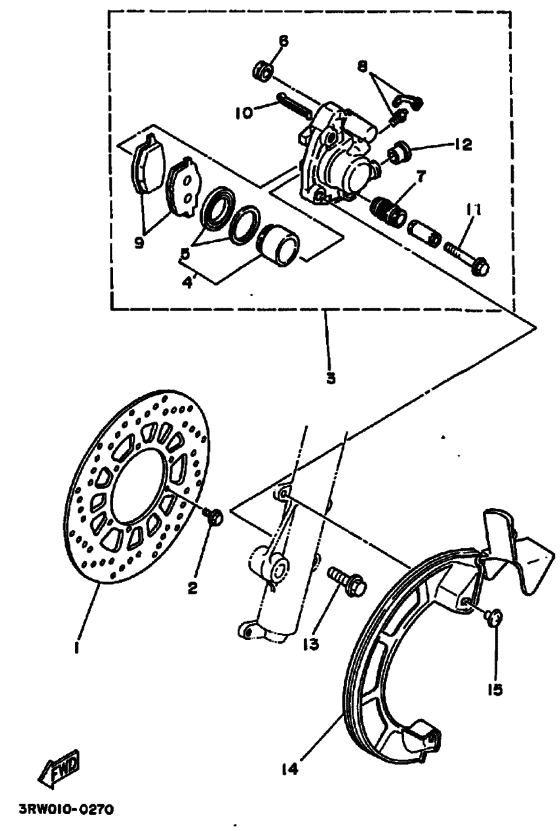

Front brake caliper Diagram Yamaha XT225 XT225
- Year
- 1994
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BE9
- Sales region
- Europe (010)
- Engine Capacity
- 225
- Color Variant
- A
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JG-2582T-00-00 Disc, Brake (Left) |
4JG-2582T-00-00 |
from US $71.82 |
||
| replacement | |||||
|
1
|
1
5XT-2582T-00-00 Disc, Brake (Left) |
5XT-2582T-00-00 |
from US $104.44 |
||
|
2
|
2
901-09067-57-00
Bolt
|
901-09067-57-00 |
— | ||
| replacements | |||||
|
2
|
2
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
2
|
2
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
3
|
3
1RH-2580T-01-00
Caliper Assembly
|
1RH-2580T-01-00 |
— | ||
|
4
|
4
34X-W0057-00-00 Piston Assy, Caliper |
34X-W0057-00-00 |
from US $94.23 |
||
|
5
|
5
34X-W0047-00-00 Caliper Seal Kit |
34X-W0047-00-00 |
from US $48.74 |
||
|
6
|
6
5R2-25937-00-00 Boot 2 |
5R2-25937-00-00 |
from US $21.50 |
||
|
7
|
7
34X-25937-00-00 Boot 2 |
34X-25937-00-00 |
from US $19.41 |
||
|
8
|
8
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
8
|
8
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $9.29 |
||
|
9
|
9
3BN-W0045-01-00
Brake Pad Kit
|
3BN-W0045-01-00 |
— | ||
| replacement | |||||
|
9
|
9
3BN-25805-02-00 Brake Pad Kit |
3BN-25805-02-00 |
from US $41.36 |
||
|
10
|
10
34X-25919-00-00 Support, Pad |
34X-25919-00-00 |
from US $36.20 |
||
|
11
|
11
2GV-25926-00-00 Bolt |
2GV-25926-00-00 |
from US $6.10 |
||
| replacement | |||||
|
11
|
11
5KN-25926-01-00 Bolt |
5KN-25926-01-00 |
from US $8.78 |
||
|
12
|
12
34X-25845-00-00 Cap, Indicator |
34X-25845-00-00 |
from US $7.23 |
||
|
13
|
13
901-05106-38-00 Bolt, Flange |
901-05106-38-00 |
from US $2.35 |
||
|
14
|
14
3RW-25715-20-00 Cover 1 |
3RW-25715-20-00 |
from US $29.61 |
||
|
15
|
15
90149-06194-00 Screw |
90149-06194-00 |
from US $3.14 |
||
| replacement | |||||
|
15
|
15
90111-06806-00
Bolt
|
90111-06806-00 |
— | ||
