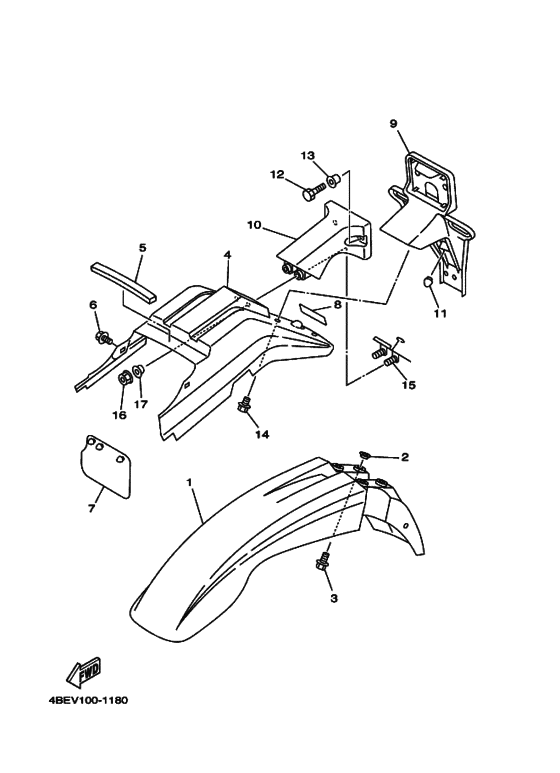

Fender Diagram Yamaha XT225 XT225
- Year
- 2001
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4BEX
- Sales region
- Europe (010)
- Engine Capacity
- 225
- Color Variant
- A
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BE-21511-00-00 Fender, Front |
4BE-21511-00-00 |
from US $73.17 |
||
|
2
|
2
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
2
|
2
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
3
|
3
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
4
|
4
3RW-21611-10-00
Fender,rear
|
3RW-21611-10-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99032-84-00
Fender, Rear
|
999-99032-84-00 |
— | ||
|
5
|
5
3RW-21639-00-00 Damper 2 |
3RW-21639-00-00 |
US $9.76 |
||
|
6
|
6
901-19060-56-00
Bolt, With Washer
|
901-19060-56-00 |
— | ||
| replacements | |||||
|
6
|
6
90119-06152-00 Bolt, With Washer |
90119-06152-00 |
from US $1.52 |
||
|
6
|
6
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
7
|
7
34X-21691-00-00 Flap |
34X-21691-00-00 |
from US $17.57 |
||
|
8
|
8
3WF-2153E-70-00 Emblem, Yamaha |
3WF-2153E-70-00 |
from US $6.19 |
||
| replacement | |||||
|
8
|
8
3WF-2153E-71-00 Emblem, Yamaha |
3WF-2153E-71-00 |
from US $6.82 |
||
|
9
|
9
4BE-84551-00-00 Bracket, License |
4BE-84551-00-00 |
from US $119.21 |
||
|
10
|
10
4BE-84527-00-00 Damper |
4BE-84527-00-00 |
from US $48.05 |
||
|
11
|
11
42U-21639-00-00 Damper 2 |
42U-21639-00-00 |
from US $2.98 |
||
|
12
|
12
97007-06025-00 Bolt |
97007-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
12
|
12
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
13
|
13
90387-065G0-00 Collar |
90387-065G0-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
14
|
14
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.07 |
||
| replacement | |||||
|
14
|
14
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
15
|
15
4BE-21637-00-00 Clamp, Wire |
4BE-21637-00-00 |
from US $27.49 |
||
|
16
|
16
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
17
|
17
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
17
|
17
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
