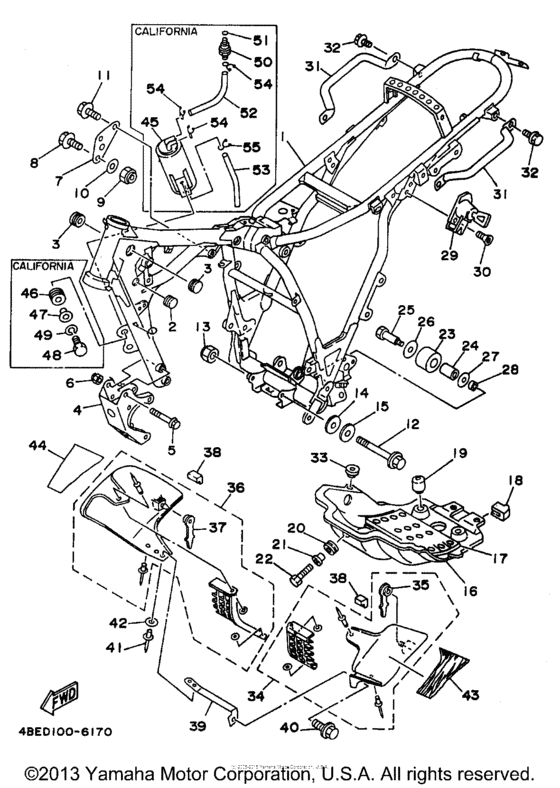

Frame Diagram Yamaha XT225 Serow
- Year
- 1998
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4FD-21110-11-35 Frame CompSL |
4FD-21110-11-35 |
US $1,929.74 |
||
| replacements | |||||
|
1
|
1
4FD-21110-12-P1
Frame Comp
SL |
4FD-21110-12-P1 |
— | ||
|
1
|
1
4FD-21110-12-35 Frame CompSL |
4FD-21110-12-35 |
US $1,929.74 |
||
|
1
|
1
4BE-21110-21-35 Frame CompSL |
4BE-21110-21-35 |
US $1,929.74 |
||
| replacement | |||||
|
1
|
1
4BE-21110-22-35 Frame Comp.SL |
4BE-21110-22-35 |
US $1,929.74 |
||
|
2
|
2
90338-15202-00 Plug (2Gh) |
90338-15202-00 |
from US $3.54 |
||
|
3
|
3
90338-24177-00 Plug |
90338-24177-00 |
from US $3.54 |
||
| replacement | |||||
|
3
|
3
90338-24260-00 Plug |
90338-24260-00 |
from US $3.54 |
||
|
4
|
4
3RW-21316-01-35 Stay, Engine 2SL |
3RW-21316-01-35 |
US $58.05 |
||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
SL |
999-99999-99-00 |
— | ||
|
4
|
4
4BE-21316-00-35 Stay, Engine 3SL |
4BE-21316-00-35 |
US $56.09 |
||
|
5
|
5
90105-08721-00 Bolt, Washer Based(4Jg) |
90105-08721-00 |
from US $5.97 |
||
|
6
|
6
956-17082-00-00
Nut, Self-Locking
|
956-17082-00-00 |
— | ||
| replacement | |||||
|
6
|
6
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
7
|
7
1KH-21315-01-00 Stay, Engine 1 |
1KH-21315-01-00 |
from US $10.63 |
||
|
8
|
8
95817-08050-00 Bolt, Flange |
95817-08050-00 |
from US $1.66 |
||
|
9
|
9
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
US $2.35 |
||
| replacement | |||||
|
9
|
9
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
10
|
10
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
11
|
11
90105-08408-00 Bolt, Flange |
90105-08408-00 |
from US $3.68 |
||
| replacements | |||||
|
11
|
11
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
11
|
11
90105-08066-00 Bolt, Flange |
90105-08066-00 |
from US $3.68 |
||
|
12
|
12
90105-08024-00 Bolt, Flange |
90105-08024-00 |
from US $5.10 |
||
|
13
|
13
95607-08200-00 Nut, Self-Locking |
95607-08200-00 |
US $2.35 |
||
| replacement | |||||
|
13
|
13
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
14
|
14
90201-08366-00 Washer, Plate |
90201-08366-00 |
from US $2.13 |
||
| replacement | |||||
|
14
|
14
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
15
|
15
92907-08800-00 Washer |
92907-08800-00 |
from US $1.40 |
||
|
16
|
16
3RW-21471-00-00
Protector, Engine
|
3RW-21471-00-00 |
— | ||
| replacement | |||||
|
16
|
16
4VW-21471-00-00
Protector, Engine
|
4VW-21471-00-00 |
— | ||
|
17
|
17
1KH-21485-00-00 Damper, Rubber 1 |
1KH-21485-00-00 |
from US $56.92 |
||
|
18
|
18
36X-21485-00-00 Damper, Rubber 1 |
36X-21485-00-00 |
from US $8.74 |
||
|
19
|
19
34L-21485-00-00 Damper, Rubber 1 |
34L-21485-00-00 |
from US $8.78 |
||
|
20
|
20
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
21
|
21
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
22
|
22
97027-06025-00 Bolt, Hexagon |
97027-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
23
|
23
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
24
|
24
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.60 |
||
|
25
|
25
90109-08705-00 Bolt |
90109-08705-00 |
from US $10.13 |
||
|
26
|
26
902-01134-09-00
Washer, Plate
|
902-01134-09-00 |
— | ||
| replacement | |||||
|
26
|
26
902-01133-P2-00 Washer, Plate(3Rr) |
902-01133-P2-00 |
from US $4.03 |
||
|
27
|
27
90201-08753-00 Washer, Plate |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
27
|
27
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $2.22 |
||
|
28
|
28
90387-085E1-00 Collar |
90387-085E1-00 |
from US $2.91 |
||
|
29
|
29
5H0-21308-01-00 Helmet Hanger Assy |
5H0-21308-01-00 |
from US $59.13 |
||
|
30
|
30
90151-06025-00 Screw, Countersunk |
90151-06025-00 |
from US $1.98 |
||
|
31
|
31
4JG-21165-10-00 Handle, Standing |
4JG-21165-10-00 |
US $56.54 |
||
| replacement | |||||
|
31
|
31
4JG-21165-20-00 Handle, Standing |
4JG-21165-20-00 |
US $51.95 |
||
|
32
|
32
958-07080-16-00
Bolt, Flange
|
958-07080-16-00 |
— | ||
| replacements | |||||
|
32
|
32
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
32
|
32
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
33
|
33
2J5-21732-00-00 Seal 1 |
2J5-21732-00-00 |
from US $7.49 |
||
|
34
|
34
3RW-W2131-10-00 Scoop Comp. Air 1 |
3RW-W2131-10-00 |
from US $69.43 |
||
|
35
|
35
90480-14448-00 Grommet |
90480-14448-00 |
from US $12.04 |
||
|
36
|
36
4BE-W2132-00-00
Scoop Comp. Air 2
|
4BE-W2132-00-00 |
— | ||
|
37
|
37
90480-14448-00 Grommet |
90480-14448-00 |
from US $12.04 |
||
|
38
|
38
90480-16185-00 Grommet |
90480-16185-00 |
from US $3.12 |
||
|
39
|
39
4BE-2139T-00-00 Bracket, Cover |
4BE-2139T-00-00 |
from US $14.04 |
||
|
40
|
40
901-19060-94-00
Bolt, With Washer
|
901-19060-94-00 |
— | ||
| replacement | |||||
|
40
|
40
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.52 |
||
|
41
|
41
90267-40075-00 Rivet, Blind |
90267-40075-00 |
from US $1.42 |
||
| replacement | |||||
|
41
|
41
902-67400-80-00
Rivet, Blind (5H0)
|
902-67400-80-00 |
— | ||
|
42
|
42
90201-04018-00 Washer (4Fm) |
90201-04018-00 |
from US $1.80 |
||
| replacement | |||||
|
42
|
42
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
43
|
43
4BE-24244-40-00
Graphic, Fuel Tank 1
|
4BE-24244-40-00 |
— | ||
|
44
|
44
4BE-24245-40-00
Graphic, Fuel Tank 2
|
4BE-24245-40-00 |
— | ||
|
45
|
45
4BE-24170-00-00 Canister Assy |
4BE-24170-00-00 |
US $355.43 |
||
|
46
|
46
90480-15342-00 Grommet |
90480-15342-00 |
from US $1.07 |
||
|
47
|
47
90387-063G3-00 Collar |
90387-063G3-00 |
from US $6.52 |
||
|
48
|
48
97007-06025-00 Bolt |
97007-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
48
|
48
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
49
|
49
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
50
|
50
20K-24180-00-00 Roll Over Valve Assy |
20K-24180-00-00 |
from US $35.37 |
||
|
51
|
51
932-10101-66-00
O-Ring
|
932-10101-66-00 |
— | ||
| replacement | |||||
|
51
|
51
93210-11453-00 O-Ring |
93210-11453-00 |
from US $1.84 |
||
|
52
|
52
90445-10458-00 Hose (L110) |
90445-10458-00 |
from US $3.68 |
||
| replacement | |||||
|
52
|
52
904-45107-52-00 Hose (L170) |
904-45107-52-00 |
from US $4.03 |
||
|
53
|
53
904-45110-F5-00 Hose (L210) |
904-45110-F5-00 |
from US $5.81 |
||
|
54
|
54
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
54
|
54
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
|
55
|
55
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
