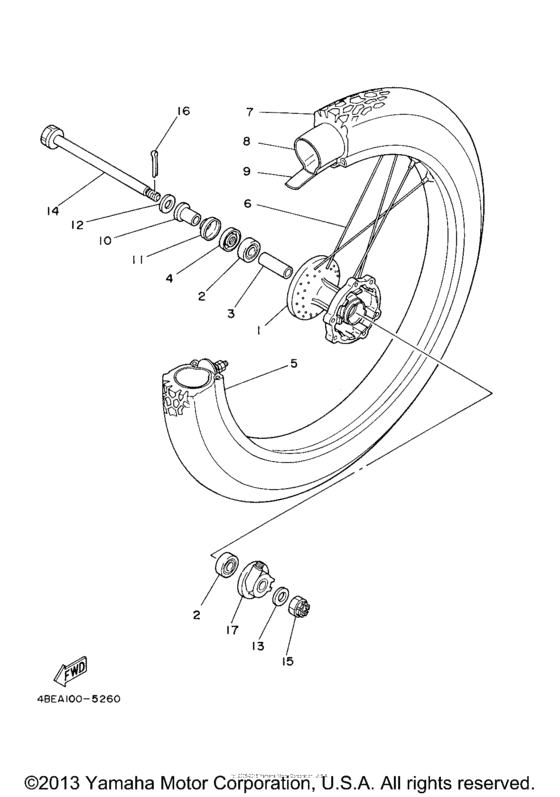

Front wheel Diagram Yamaha XT225 Serow
- Year
- 2000
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34X-25111-02-35 Hub, FrontSL |
34X-25111-02-35 |
from US $179.61 |
||
|
2
|
2
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
3
|
3
90560-15290-00 Spacer |
90560-15290-00 |
from US $7.37 |
||
|
4
|
4
93102-20281-00 Oil Seal20-35-5 |
93102-20281-00 |
from US $3.89 |
||
|
5
|
5
94416-21536-00 Rim (1.60-21)1.60-21 |
94416-21536-00 |
from US $266.65 |
||
|
6
|
6
1KH-25104-00-00 Spoke Set, Front |
1KH-25104-00-00 |
from US $84.42 |
||
|
7
|
7
941-27212-X0-00
Tire(Bs-Mcs2.75-21 4Pr Tw27)
2.75-21 4PR TW27 BRIDGESTONE |
941-27212-X0-00 |
— | ||
|
8
|
8
942-27211-23-00 Tube (Mcs 2.75/3.00-21 Tr6)2.75/3.00-21 TR6 BRIDGESTONE |
942-27211-23-00 |
US $54.59 |
||
|
9
|
9
94330-21084-00 Band, Rim (1.60-21)1.60-21 BRIDGESTONE |
94330-21084-00 |
from US $4.39 |
||
|
10
|
10
90387-15600-00 Collar |
90387-15600-00 |
from US $10.06 |
||
|
11
|
11
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
|
12
|
12
90201-163H8-00 Washer, Plate |
90201-163H8-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90201-164H4-00 Washer, Plate(33Y) |
90201-164H4-00 |
from US $1.70 |
||
|
13
|
13
90201-15785-00 Washer, Plate |
90201-15785-00 |
from US $2.27 |
||
|
14
|
14
34X-25181-00-00 Axle, Wheel |
34X-25181-00-00 |
from US $46.84 |
||
|
15
|
15
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
15
|
15
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
16
|
16
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
16
|
16
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
17
|
17
34X-25190-01-00 Gear Unit Assy |
34X-25190-01-00 |
from US $103.62 |
||
