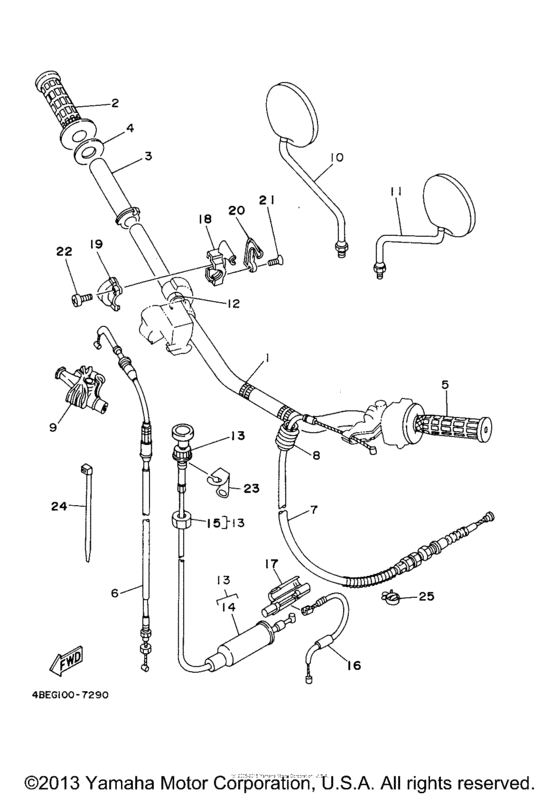

Steering handle & cable Diagram Yamaha XT225 Serow
- Year
- 2000
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BE-26111-01-00 Handlebar |
4BE-26111-01-00 |
from US $99.89 |
||
|
2
|
2
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $15.82 |
||
|
3
|
3
434-26243-12-00 Tube, Throttle Guide |
434-26243-12-00 |
from US $12.62 |
||
|
4
|
4
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
5
|
5
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $15.82 |
||
|
6
|
6
3RW-26311-10-00 Cable, Throttle 1 |
3RW-26311-10-00 |
from US $58.86 |
||
|
7
|
7
4JG-26335-01-00 Cable, clutch |
4JG-26335-01-00 |
from US $42.83 |
||
|
8
|
8
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
9
|
9
1T5-26372-00-00 Cover, Handle Lever 1 |
1T5-26372-00-00 |
from US $14.29 |
||
|
10
|
10
3Y1-26290-00-00 Back Mirror Assy (R.h) |
3Y1-26290-00-00 |
from US $17.18 |
||
|
11
|
11
3Y1-26290-10-00
Back Mirror Assy (L.h)
|
3Y1-26290-10-00 |
— | ||
| replacements | |||||
|
11
|
11
5Y1-26290-10-00 Back Mirror Assy (L.h) |
5Y1-26290-10-00 |
from US $35.99 |
||
|
11
|
11
5Y1-26290-11-00 MIRROR ASSY., 2 |
5Y1-26290-11-00 |
from US $35.99 |
||
|
12
|
12
90387-22660-00 Collar |
90387-22660-00 |
from US $1.84 |
||
|
13
|
13
1VJ-26331-03-00 Starter Cable Assy |
1VJ-26331-03-00 |
from US $53.48 |
||
| replacements | |||||
|
13
|
13
2TY-F6330-00-00
Starter Cable Assy
|
2TY-F6330-00-00 |
— | ||
|
13
|
13
1VJ-26331-04-00
Cable, Starter 1
|
1VJ-26331-04-00 |
— | ||
|
13
|
13
1VJ-26331-05-00 Cable, Starter 1 |
1VJ-26331-05-00 |
US $36.61 |
||
|
14
|
14
1YU-26329-00-00 Cap, Rubber |
1YU-26329-00-00 |
from US $9.28 |
||
|
15
|
15
1VJ-26333-00-00 Nut |
1VJ-26333-00-00 |
from US $3.47 |
||
|
16
|
16
3RW-26334-00-00 Cable, Starter 2 |
3RW-26334-00-00 |
from US $22.95 |
||
|
17
|
17
53L-26261-01-00 Connector, Cable |
53L-26261-01-00 |
from US $11.33 |
||
|
18
|
18
38V-26281-00-98 Cap, Grip Upper |
38V-26281-00-98 |
from US $29.04 |
||
|
19
|
19
493-26282-00-98 Cap, Grip Under |
493-26282-00-98 |
from US $37.44 |
||
|
20
|
20
38V-2628H-00-00 Cap, Wire |
38V-2628H-00-00 |
from US $8.22 |
||
|
21
|
21
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
22
|
22
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
23
|
23
4BE-2637G-00-00 Holder, Wire |
4BE-2637G-00-00 |
from US $19.46 |
||
| replacement | |||||
|
23
|
23
4BE-2637G-10-00 Holder, Wire |
4BE-2637G-10-00 |
from US $21.11 |
||
|
24
|
24
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
24
|
24
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
25
|
25
90464-10193-00 Clamp |
90464-10193-00 |
from US $2.54 |
||
