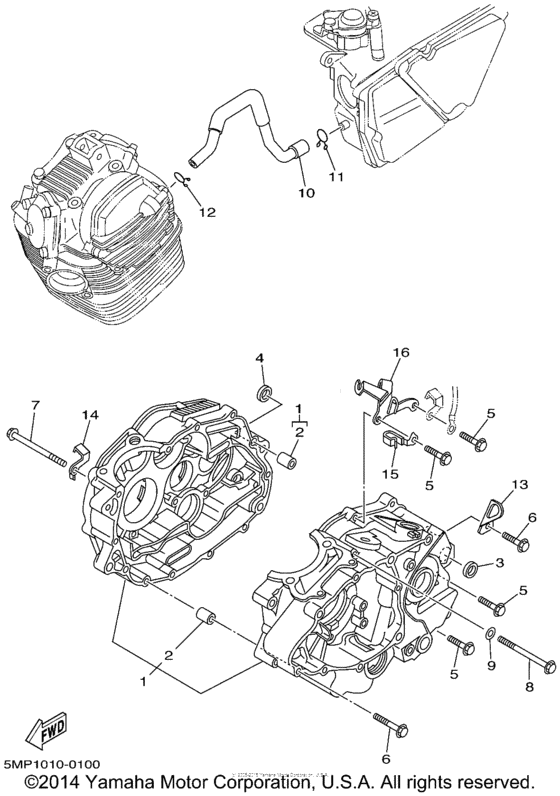

Crankcase Diagram Yamaha XT225 XT225
- Year
- 2002
- Model code
- 5RK1
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5MP-15100-02-00 Crankcase Assy |
5MP-15100-02-00 |
from US $711.23 |
||
|
2
|
2
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
3
|
3
90387-125F1-00 Collar |
90387-125F1-00 |
from US $4.23 |
||
|
4
|
4
90387-125F1-00 Collar |
90387-125F1-00 |
from US $4.23 |
||
|
5
|
5
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.52 |
||
|
6
|
6
95027-06040-00 Bolt, Flange |
95027-06040-00 |
from US $1.52 |
||
|
7
|
7
95027-06090-00 Bolt, Flange |
95027-06090-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
95022-06090-00 Bolt, Flange |
95022-06090-00 |
from US $1.52 |
||
|
8
|
8
95027-06085-00 Bolt, Flange |
95027-06085-00 |
from US $1.56 |
||
|
9
|
9
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
10
|
10
5MP-11166-00-00 Pipe, Breather 1 |
5MP-11166-00-00 |
from US $25.22 |
||
|
11
|
11
90467-14015-00 Clip |
90467-14015-00 |
from US $1.81 |
||
|
12
|
12
90467-13071-00 Clip |
90467-13071-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
90467-13133-00 Clip(3Yx) |
90467-13133-00 |
from US $1.52 |
||
|
13
|
13
90465-08020-00 Clamp |
90465-08020-00 |
from US $4.68 |
||
|
14
|
14
90462-08224-00 Clamp |
90462-08224-00 |
from US $4.82 |
||
|
15
|
15
90465-08127-00 Clamp |
90465-08127-00 |
from US $2.41 |
||
| replacement | |||||
|
15
|
15
90465-06376-00 Clamp |
90465-06376-00 |
from US $2.41 |
||
|
16
|
16
4JG-15441-02-00 Holder, Clutch Cable |
4JG-15441-02-00 |
from US $17.51 |
||
