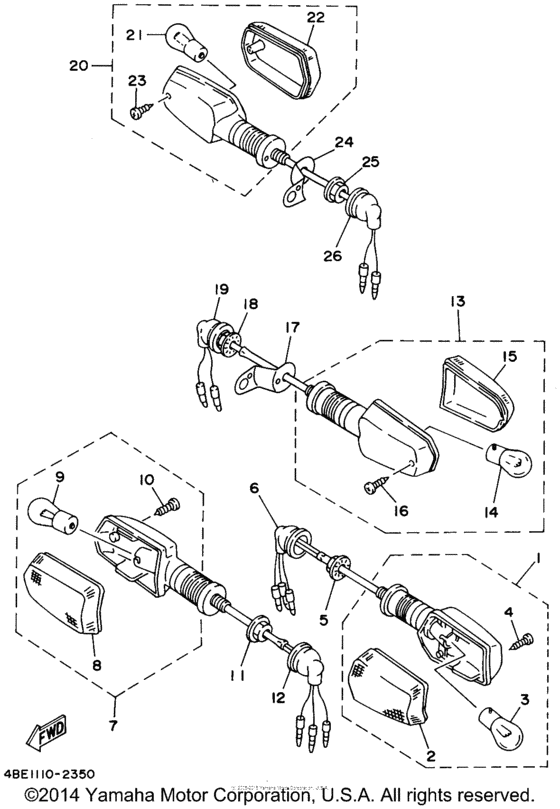

Flasher light Diagram Yamaha XT225 XT225
- Year
- 2002
- Model code
- 5RK1
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UF-83310-00-00 Front Flasher Light Assy 1 |
1UF-83310-00-00 |
from US $68.94 |
||
|
2
|
2
51L-83332-01-00 Lens, Flasher |
51L-83332-01-00 |
from US $10.51 |
||
|
3
|
3
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
3
|
3
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
3
|
3
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
4
|
4
97707-40620-00 Screw, Pan Tap.2 Slit |
97707-40620-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
5
|
5
95307-12700-00 Nut |
95307-12700-00 |
from US $2.35 |
||
| replacement | |||||
|
5
|
5
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.36 |
||
|
6
|
6
18G-83365-00-00 Cap |
18G-83365-00-00 |
from US $6.06 |
||
|
7
|
7
1UF-83320-00-00 Front Flasher Light Assy 2 |
1UF-83320-00-00 |
from US $68.94 |
||
|
8
|
8
51L-83342-01-00 Lens, Flasher 2 |
51L-83342-01-00 |
from US $11.36 |
||
|
9
|
9
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
9
|
9
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
9
|
9
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
10
|
10
97707-40620-00 Screw, Pan Tap.2 Slit |
97707-40620-00 |
from US $1.56 |
||
| replacement | |||||
|
10
|
10
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
11
|
11
95307-12700-00 Nut |
95307-12700-00 |
from US $2.35 |
||
| replacement | |||||
|
11
|
11
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.36 |
||
|
12
|
12
18G-83365-00-00 Cap |
18G-83365-00-00 |
from US $6.06 |
||
|
13
|
13
4BE-83330-00-00 Rear Flasher Light Assy 1 |
4BE-83330-00-00 |
US $69.71 |
||
|
14
|
14
256-83311-70-00 Bulb (12V-27W)12V-32CP |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
14
|
14
256-83311-70-XX
Bulb (12V-27W)
12V-32CP |
256-83311-70-XX |
— | ||
|
15
|
15
1LJ-83332-00-00 Lens, Flasher |
1LJ-83332-00-00 |
from US $9.40 |
||
| replacement | |||||
|
15
|
15
51L-83332-01-00 Lens, Flasher |
51L-83332-01-00 |
from US $10.51 |
||
|
16
|
16
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
17
|
17
4BE-83368-10-00 Stay, Flasher 1 |
4BE-83368-10-00 |
from US $13.37 |
||
|
18
|
18
95307-12700-00 Nut |
95307-12700-00 |
from US $2.35 |
||
| replacement | |||||
|
18
|
18
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.36 |
||
|
19
|
19
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
19
|
19
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
|
20
|
20
4BE-83340-00-00 Rear Flasher Light Assy 2 |
4BE-83340-00-00 |
from US $79.03 |
||
|
21
|
21
256-83311-70-00 Bulb (12V-27W)12V-32CP |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
21
|
21
256-83311-70-XX
Bulb (12V-27W)
12V-32CP |
256-83311-70-XX |
— | ||
|
22
|
22
1LJ-83342-00-00 Lens, Flasher 2 |
1LJ-83342-00-00 |
from US $9.40 |
||
| replacement | |||||
|
22
|
22
51L-83342-01-00 Lens, Flasher 2 |
51L-83342-01-00 |
from US $11.36 |
||
|
23
|
23
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
24
|
24
4BE-83369-10-00 Stay, Flasher 2 |
4BE-83369-10-00 |
from US $18.28 |
||
|
25
|
25
95307-12700-00 Nut |
95307-12700-00 |
from US $2.35 |
||
| replacement | |||||
|
25
|
25
95317-12700-00 Nut, Hexagon Small |
95317-12700-00 |
from US $2.36 |
||
|
26
|
26
10V-83365-00-00 Cap |
10V-83365-00-00 |
US $5.38 |
||
| replacement | |||||
|
26
|
26
10V-83365-01-00 Cap |
10V-83365-01-00 |
from US $4.27 |
||
