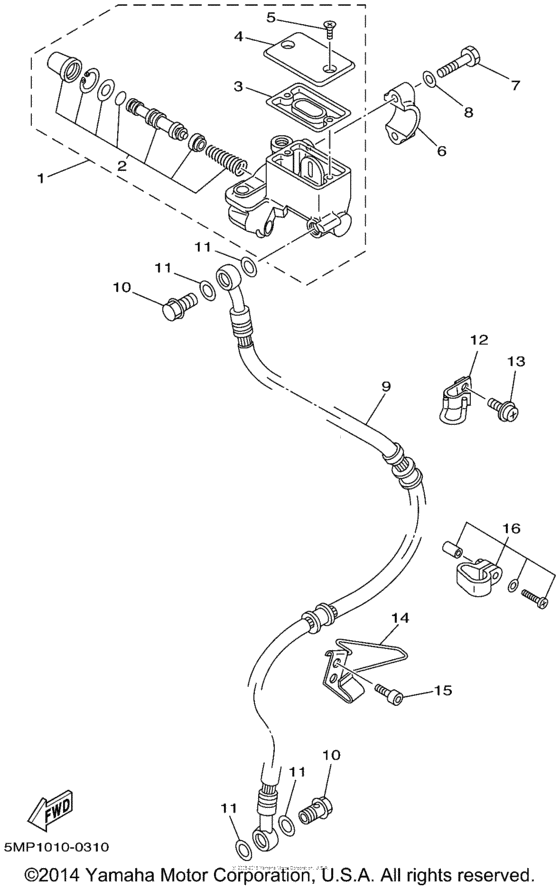

Front master cylinder Diagram Yamaha XT225 XT225
- Year
- 2002
- Model code
- 5RK1
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GY-25870-02-00 Master Cylinder Sub Assy |
4GY-25870-02-00 |
from US $216.91 |
||
|
2
|
2
5CG-W0041-00-00 Cylinder Kit, Master |
5CG-W0041-00-00 |
from US $45.11 |
||
| replacement | |||||
|
2
|
2
5RS-25807-03-00 Cylinder Kit, Master |
5RS-25807-03-00 |
from US $45.11 |
||
|
3
|
3
3RW-25854-00-00 Diaphragm, Reservoir |
3RW-25854-00-00 |
from US $11.29 |
||
|
4
|
4
4GY-25852-00-00 Cap, Reservoir |
4GY-25852-00-00 |
from US $21.39 |
||
| replacement | |||||
|
4
|
4
4GY-25852-01-00 Cap, Reservoir |
4GY-25852-01-00 |
from US $21.39 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
3RW-25867-00-00 Bracket, Master Cylinder |
3RW-25867-00-00 |
from US $13.46 |
||
| replacement | |||||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
97007-06025-00 Bolt |
97007-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
8
|
8
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
9
|
9
4JG-25872-10-00 Hose, Brake 1 |
4JG-25872-10-00 |
from US $92.32 |
||
|
10
|
10
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
11
|
11
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
12
|
12
3RW-25875-00-00 Holder, Brake Hose 1 |
3RW-25875-00-00 |
from US $16.43 |
||
|
13
|
13
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
13
|
13
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.39 |
||
|
14
|
14
34X-25876-00-00 Holder, Brake Hose 2 |
34X-25876-00-00 |
from US $12.61 |
||
|
15
|
15
91317-06010-00 Bolt |
91317-06010-00 |
from US $1.07 |
||
|
16
|
16
3TB-23466-01-00 Clamp |
3TB-23466-01-00 |
from US $10.56 |
||
| replacement | |||||
|
16
|
16
99999-02107-00 Clamp |
99999-02107-00 |
from US $10.56 |
||
