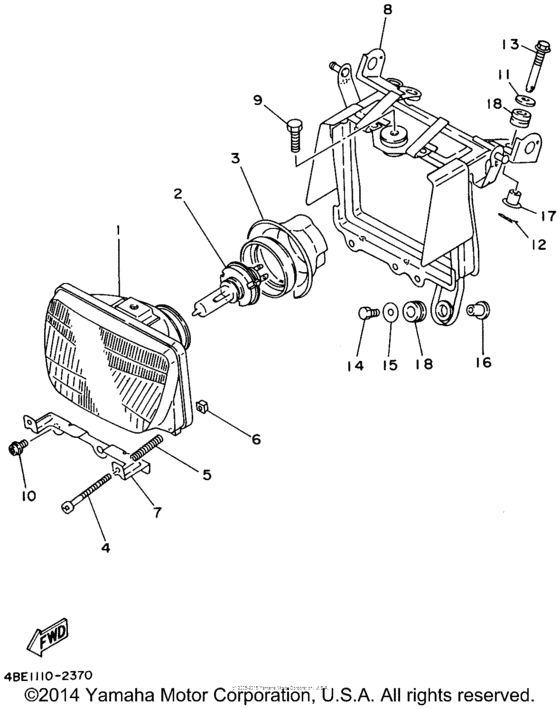

Headlight Diagram Yamaha XT225 XT225
- Year
- 2002
- Model code
- 5RK1
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4BE-84320-10-00
Lens Assy
|
4BE-84320-10-00 |
— | ||
|
2
|
2
2F9-84314-00-00 Bulb (12V 60/55W Halogen)12V-60/55W H4HALOGEN |
2F9-84314-00-00 |
from US $29.16 |
||
| replacements | |||||
|
2
|
2
5V2-84314-00-XX
Bulb (12V-60/55W)
12V-60/55W H4HALOGEN |
5V2-84314-00-XX |
— | ||
|
2
|
2
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
12V-60/55W H4HALOGEN |
YMC-00903-00-00 |
— | ||
|
2
|
2
5VK-H4314-00-00 Bulb, Headlight12V-60/55W H4HALOGEN |
5VK-H4314-00-00 |
US $45.92 |
||
|
2
|
2
8V0-84314-10-00 Bulb, Headlight12V-60/55W H4HALOGEN |
8V0-84314-10-00 |
from US $45.92 |
||
|
3
|
3
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
4
|
4
3TB-84325-00-00 Screw, Rim Fitting |
3TB-84325-00-00 |
from US $5.24 |
||
|
5
|
5
5G2-84332-60-00
Spring, Screw
|
5G2-84332-60-00 |
— | ||
| replacement | |||||
|
5
|
5
341-84332-60-00 Spring |
341-84332-60-00 |
from US $3.12 |
||
|
6
|
6
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
7
|
7
3TB-8431R-00-00 Stay, Setting |
3TB-8431R-00-00 |
from US $17.87 |
||
|
8
|
8
4BE-84311-00-00 Body, Headlight |
4BE-84311-00-00 |
US $153.02 |
||
|
9
|
9
3TB-84372-01-00 Bolt, Lamp Stay |
3TB-84372-01-00 |
from US $3.02 |
||
|
10
|
10
3TB-84329-00-00 Bolt, Wing 1 |
3TB-84329-00-00 |
from US $2.03 |
||
|
11
|
11
90202-06013-00 Washer, Plate |
90202-06013-00 |
US $2.29 |
||
|
12
|
12
90468-12120-00 Clip |
90468-12120-00 |
from US $1.70 |
||
|
13
|
13
3TB-84137-00-00 Bolt, Special |
3TB-84137-00-00 |
US $21.99 |
||
|
14
|
14
970-27060-20-00
Bolt
|
970-27060-20-00 |
— | ||
| replacement | |||||
|
14
|
14
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
15
|
15
90201-06557-00 Washer, Plate |
90201-06557-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
16
|
16
903-87063-E6-00
Collar
|
903-87063-E6-00 |
— | ||
| replacement | |||||
|
16
|
16
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
17
|
17
903-87073-91-00 Collar |
903-87073-91-00 |
from US $2.08 |
||
|
18
|
18
904-80141-02-00
Grommet
|
904-80141-02-00 |
— | ||
| replacement | |||||
|
18
|
18
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
