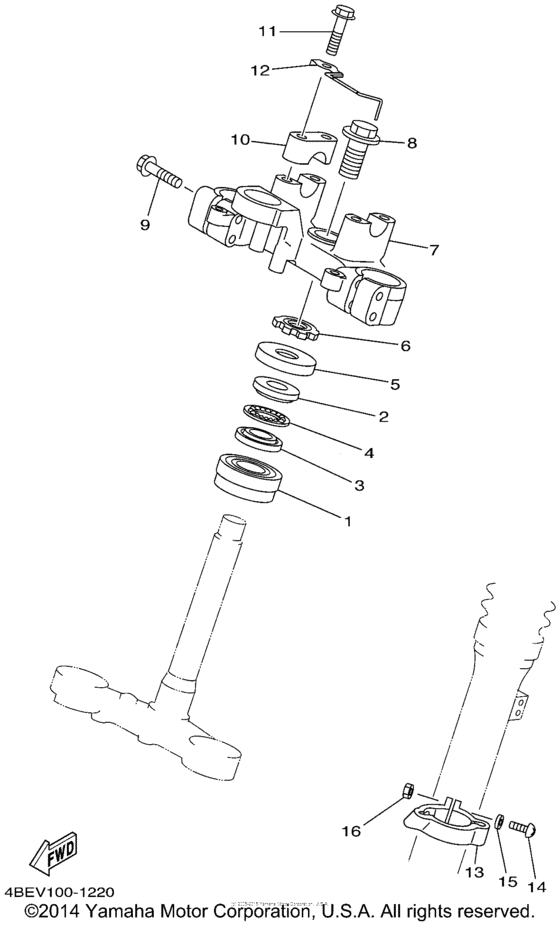

Steering Diagram Yamaha XT225 XT225
- Year
- 2002
- Model code
- 5RK1
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.15 |
||
|
2
|
2
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
2
|
2
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
3
|
3
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
3
|
3
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
4
|
4
22F-2341E-00-00 Retainer, Ball Bearing |
22F-2341E-00-00 |
from US $14.14 |
||
| replacement | |||||
|
4
|
4
BP2-2341E-00-00 Retainer, Ball Bearing |
BP2-2341E-00-00 |
from US $14.14 |
||
|
5
|
5
10V-23416-01-00 Cover Ball Race |
10V-23416-01-00 |
from US $14.88 |
||
|
6
|
6
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
6
|
6
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
6
|
6
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
7
|
7
4BE-23435-10-00 Crown, Handle |
4BE-23435-10-00 |
US $316.48 |
||
|
8
|
8
90105-14329-00 Bolt, Flange |
90105-14329-00 |
from US $9.92 |
||
|
9
|
9
95027-08040-00 Bolt, Flange |
95027-08040-00 |
from US $1.42 |
||
|
10
|
10
1E6-23441-10-35 Holder, Handle UpperSL |
1E6-23441-10-35 |
from US $17.85 |
||
|
11
|
11
95827-08035-00 Bolt, Flange |
95827-08035-00 |
from US $1.18 |
||
| replacement | |||||
|
11
|
11
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
12
|
12
4BE-23389-00-00 Guide, Cable |
4BE-23389-00-00 |
US $33.77 |
||
|
13
|
13
34X-23317-00-00 Holder, Cable |
34X-23317-00-00 |
from US $6.52 |
||
|
14
|
14
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
15
|
15
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
16
|
16
95307-05600-00 Nut(N28) |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
16
|
16
95317-05600-00 Nut |
95317-05600-00 |
from US $1.36 |
||
