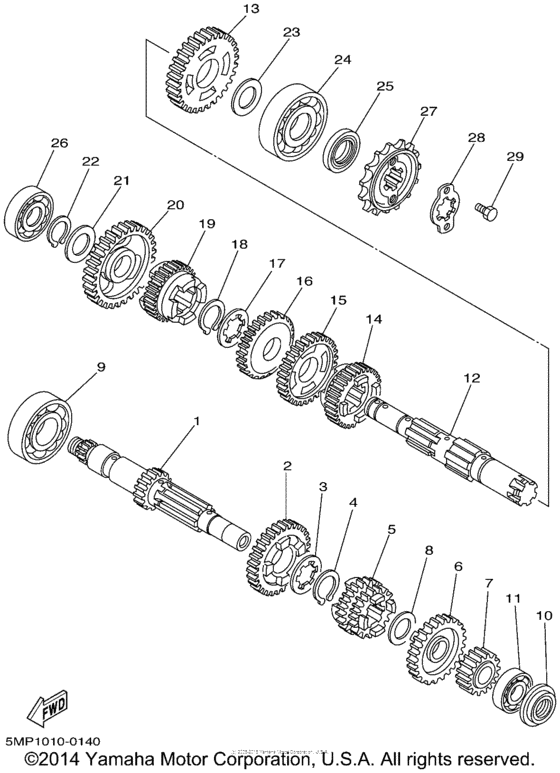

Transmission Diagram Yamaha XT225 XT225
- Year
- 2002
- Model code
- 5RK1
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4JG-17411-00-00 Axle, Main (11T)11T |
4JG-17411-00-00 |
from US $196.19 |
||
|
2
|
2
5MP-17161-00-00 Gear, 6Th Pinion (29T)6TH PINION 29T |
5MP-17161-00-00 |
from US $57.47 |
||
|
3
|
3
90209-17285-00 Washer |
90209-17285-00 |
from US $3.54 |
||
|
4
|
4
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.94 |
||
|
5
|
5
1KH-17131-01-00 Gear, 3Rd Pinion3RD/4TH PINION 21T/24T |
1KH-17131-01-00 |
from US $101.82 |
||
|
6
|
6
5MP-17151-00-00 Gear, 5Th Pinion (27T)5TH PINION 27T |
5MP-17151-00-00 |
from US $83.45 |
||
|
7
|
7
1KH-17121-00-00 Gear, 2Nd Pinion (15T)2ND PINION 15T |
1KH-17121-00-00 |
from US $35.75 |
||
|
8
|
8
90201-164K2-00 Washer, Plate |
90201-164K2-00 |
from US $1.98 |
||
|
9
|
9
93306-20401-00 Bearing |
93306-20401-00 |
from US $15.53 |
||
| replacements | |||||
|
9
|
9
93306-20461-00 Bearing |
93306-20461-00 |
from US $15.53 |
||
|
9
|
9
93306-204Y7-00
Bearing
|
93306-204Y7-00 |
— | ||
|
10
|
10
93101-15101-00 Oil Seal |
93101-15101-00 |
from US $5.81 |
||
|
11
|
11
93306-20201-00 Bearing |
93306-20201-00 |
from US $19.13 |
||
| replacement | |||||
|
11
|
11
93306-20211-00 Bearing (B6202) |
93306-20211-00 |
from US $19.13 |
||
|
12
|
12
17T-17402-00-00 Drive Axle Assy |
17T-17402-00-00 |
from US $190.66 |
||
|
13
|
13
1KH-17221-01-00 Gear, 2Nd Wheel (30T)2ND WHEEL 30T |
1KH-17221-01-00 |
from US $50.15 |
||
|
14
|
14
5MP-17251-00-00 Gear, 5Th Wheel (25T)5TH WHEEL 25T |
5MP-17251-00-00 |
from US $84.42 |
||
|
15
|
15
1KH-17231-01-00 Gear, 3Rd Wheel (30T)3RD WHEEL 30T |
1KH-17231-01-00 |
from US $65.98 |
||
|
16
|
16
17T-17241-03-00 Gear, 4Th Wheel4TH WHEEL 27T |
17T-17241-03-00 |
from US $74.21 |
||
|
17
|
17
90209-18208-00 Washer |
90209-18208-00 |
from US $1.84 |
||
|
18
|
18
93410-22039-00 Circlip |
93410-22039-00 |
from US $1.94 |
||
|
19
|
19
5MP-17261-00-00 Gear, 6Th Wheel (23T)6TH WHEEL 23T |
5MP-17261-00-00 |
from US $65.63 |
||
|
20
|
20
1KH-17211-00-00 Gear, 1St Wheel (34T)1ST WHEEL 34T |
1KH-17211-00-00 |
from US $57.87 |
||
|
21
|
21
90201-17257-00 Washer, Plate |
90201-17257-00 |
from US $1.84 |
||
|
22
|
22
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.50 |
||
|
23
|
23
90201-203E7-00 Washer, Plate |
90201-203E7-00 |
from US $1.70 |
||
|
24
|
24
93306-30424-00 Bearing |
93306-30424-00 |
from US $26.78 |
||
| replacement | |||||
|
24
|
24
933-06304-43-00 Bearing (B6304A3) |
933-06304-43-00 |
from US $21.22 |
||
|
25
|
25
93102-20242-00 Oil Seal |
93102-20242-00 |
from US $8.21 |
||
| replacement | |||||
|
25
|
25
93102-20004-00 Oil Seal |
93102-20004-00 |
from US $9.35 |
||
|
26
|
26
93306-20332-00 Bearing |
93306-20332-00 |
from US $19.42 |
||
|
27
|
27
1KH-17460-00-00 Sprocket, Drive (15T)15T |
1KH-17460-00-00 |
from US $41.18 |
||
|
28
|
28
5H0-17456-00-00 Holder, Sprocket |
5H0-17456-00-00 |
from US $6.94 |
||
|
29
|
29
97027-06010-00 Bolt, Hexagon |
97027-06010-00 |
from US $1.56 |
||
| replacement | |||||
|
29
|
29
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.66 |
||
