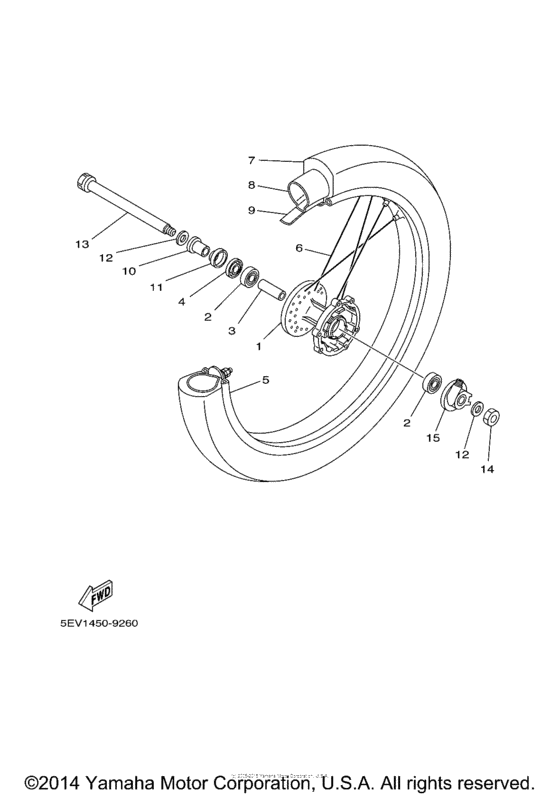

Front wheel Diagram Yamaha XT225 XT225
- Year
- 2005
- Model code
- 5RKA
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34X-25111-02-35 Hub, FrontSL |
34X-25111-02-35 |
from US $179.61 |
||
|
2
|
2
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
3
|
3
90560-15290-00 Spacer |
90560-15290-00 |
from US $7.37 |
||
|
4
|
4
93102-20281-00 Oil Seal20-35-5 |
93102-20281-00 |
from US $3.89 |
||
|
5
|
5
94416-21008-00 Rim (1.60-21)1.60-21 |
94416-21008-00 |
from US $390.10 |
||
|
6
|
6
1KH-25104-00-00 Spoke Set, Front |
1KH-25104-00-00 |
from US $84.42 |
||
|
7
|
7
941-27212-X0-00
Tire(Bs-Mcs2.75-21 4Pr Tw27)
2.75-21 4PR TW27 BRIDGESTONE |
941-27212-X0-00 |
— | ||
|
8
|
8
942-27211-23-00 Tube (Mcs 2.75/3.00-21 Tr6)2.75/3.00-21 TR6 BRIDGESTONE |
942-27211-23-00 |
US $54.59 |
||
|
9
|
9
94330-21084-00 Band, Rim (1.60-21)1.60-21 BRIDGESTONE |
94330-21084-00 |
from US $4.39 |
||
|
10
|
10
90387-15600-00 Collar |
90387-15600-00 |
from US $10.06 |
||
|
11
|
11
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
|
12
|
12
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $2.08 |
||
|
13
|
13
4JG-25181-00-00 Axle, Wheel |
4JG-25181-00-00 |
from US $42.61 |
||
| replacement | |||||
|
13
|
13
34X-25181-00-00 Axle, Wheel |
34X-25181-00-00 |
from US $46.84 |
||
|
14
|
14
95607-14100-00 Nut, U (Jn5) |
95607-14100-00 |
from US $7.92 |
||
| replacement | |||||
|
14
|
14
95617-14100-00 Nut, U |
95617-14100-00 |
from US $10.98 |
||
|
15
|
15
34X-25190-01-00 Gear Unit Assy |
34X-25190-01-00 |
from US $103.62 |
||
