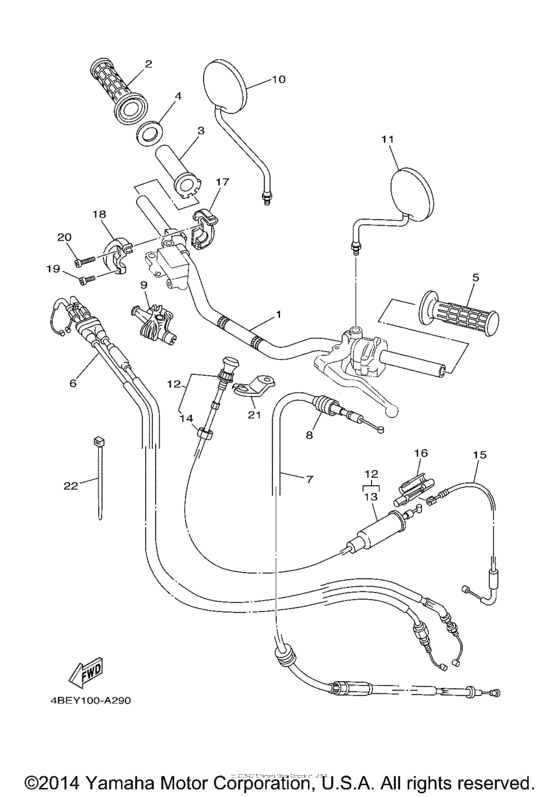

Steering handle & cable Diagram Yamaha XT225 XT225
- Year
- 2006
- Model code
- 5RKD
- Sales region
- USA
- Engine Capacity
- 225
- Model
- XT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5MP-26111-00-00 Handlebar |
5MP-26111-00-00 |
from US $65.90 |
||
|
2
|
2
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $14.06 |
||
|
3
|
3
5BE-26243-00-00 Tube, Throttle Guide |
5BE-26243-00-00 |
from US $7.78 |
||
|
4
|
4
3Y1-26249-00-00 Ring, Leaf |
3Y1-26249-00-00 |
from US $2.84 |
||
|
5
|
5
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $14.06 |
||
|
6
|
6
4BE-26302-00-00 Throttle Cable Assy |
4BE-26302-00-00 |
US $57.04 |
||
|
7
|
7
4JG-26335-20-00 Cable, clutch |
4JG-26335-20-00 |
US $32.01 |
||
|
8
|
8
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $13.91 |
||
|
9
|
9
1T5-26372-00-00 Cover, Handle Lever 1 |
1T5-26372-00-00 |
from US $12.57 |
||
|
10
|
10
3Y1-26290-00-00 Back Mirror Assy (R.h) |
3Y1-26290-00-00 |
from US $18.16 |
||
|
11
|
11
3Y1-26290-10-00 Back Mirror Assy (L.h) |
3Y1-26290-10-00 |
from US $32.16 |
||
| replacement | |||||
|
11
|
11
5Y1-26290-10-00 Back Mirror Assy (L.h) |
5Y1-26290-10-00 |
from US $33.51 |
||
|
12
|
12
1VJ-26331-04-00 Cable, Starter 1 |
1VJ-26331-04-00 |
from US $41.33 |
||
| replacement | |||||
|
12
|
12
1VJ-26331-05-00 |
1VJ-26331-05-00 |
US $30.58 |
||
|
13
|
13
1YU-26329-00-00 Cap, Rubber |
1YU-26329-00-00 |
from US $3.73 |
||
|
14
|
14
1VJ-26333-00-00 Nut |
1VJ-26333-00-00 |
from US $2.07 |
||
|
15
|
15
4BE-26334-00-00 Cable, Starter 2 |
4BE-26334-00-00 |
US $23.06 |
||
|
16
|
16
53L-26261-01-00 Connector, Cable |
53L-26261-01-00 |
from US $9.87 |
||
|
17
|
17
3LN-26281-01-00 Cap, Grip Upper |
3LN-26281-01-00 |
from US $28.27 |
||
|
18
|
18
3LN-26282-01-00 Cap, Grip Lower |
3LN-26282-01-00 |
from US $19.44 |
||
|
19
|
19
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
19
|
19
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.80 |
||
|
20
|
20
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.28 |
||
|
21
|
21
4BE-2637G-00-00 Holder, Wire |
4BE-2637G-00-00 |
from US $15.27 |
||
| replacement | |||||
|
21
|
21
4BE-2637G-10-00 Holder, Wire |
4BE-2637G-10-00 |
from US $15.27 |
||
|
22
|
22
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.13 |
||
