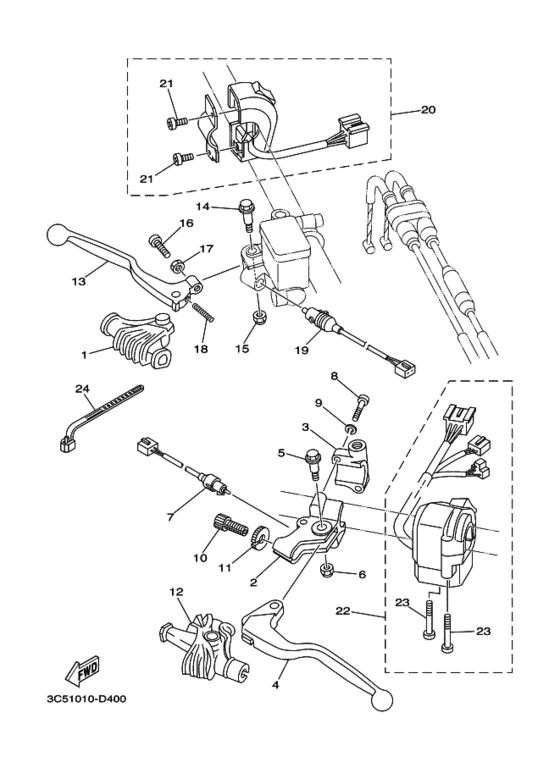

Handle switch & lever Diagram Yamaha XT250 Serow
- Year
- 2005
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3C51
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T5-26372-00-00 Cover, Handle Lever 1カバー，ハンドルレバー １; |
1T5-26372-00-00 |
from US $14.29 |
||
|
2
|
2
5XT-82911-00-00 Holder, Lever 1ホルダ，レバー １; |
5XT-82911-00-00 |
from US $16.84 |
||
|
3
|
3
33G-82913-01-00 Holder, Lever Lower 1ホルダ，レバーロワ １; |
33G-82913-01-00 |
from US $18.03 |
||
|
4
|
4
23X-83912-00-00
Lever 1
レバー １; |
23X-83912-00-00 |
— | ||
| replacement | |||||
|
4
|
4
23X-83912-02-00 Lever 1レバー １; |
23X-83912-02-00 |
from US $21.96 |
||
|
5
|
5
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
6
|
6
956-07061-00-00
Nut, U
ナツト，Ｕ; |
956-07061-00-00 |
— | ||
| replacement | |||||
|
6
|
6
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
7
|
7
3C5-82917-00-00 Switch |
3C5-82917-00-00 |
from US $32.60 |
||
|
8
|
8
985-07050-20-00
Screw, Pan Head(4My)
スクリユ，パンヘツド; |
985-07050-20-00 |
— | ||
| replacement | |||||
|
8
|
8
98517-05020-00 Screw, Pan Headスクリユ，パンヘツド; |
98517-05020-00 |
from US $1.70 |
||
|
9
|
9
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
10
|
10
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
10
|
10
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
11
|
11
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
11
|
11
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
12
|
12
1E6-26372-00-00 Cover, Handle Lever 1カバー，ハンドルレバー １; |
1E6-26372-00-00 |
from US $14.29 |
||
|
13
|
13
55Y-83922-00-00 Lever 2レバー ２; |
55Y-83922-00-00 |
from US $21.77 |
||
| replacement | |||||
|
13
|
13
55Y-83922-02-00 Lever 2レバー ２; |
55Y-83922-02-00 |
from US $21.77 |
||
|
14
|
14
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
15
|
15
956-07061-00-00
Nut, U
ナツト，Ｕ; |
956-07061-00-00 |
— | ||
| replacement | |||||
|
15
|
15
95617-06100-00 Nut, Uナツト，Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
16
|
16
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
17
|
17
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
18
|
18
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
19
|
19
3C5-83980-00-00 Front Stop Switch Assy |
3C5-83980-00-00 |
from US $20.69 |
||
|
20
|
20
3C5-83975-00-00 Switch, Handle 2 |
3C5-83975-00-00 |
from US $64.94 |
||
| replacements | |||||
|
20
|
20
3C5-83975-10-00 Switch, Handle 2 |
3C5-83975-10-00 |
from US $64.94 |
||
|
20
|
20
3C5-83975-11-00 Switch, Handle 2 |
3C5-83975-11-00 |
from US $62.96 |
||
|
21
|
21
98507-05018-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05018-00 |
from US $1.56 |
||
|
22
|
22
3C5-83972-00-00 Switch, Handle 4 |
3C5-83972-00-00 |
US $151.98 |
||
|
23
|
23
985-07050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-07050-30-00 |
— | ||
| replacement | |||||
|
23
|
23
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
24
|
24
90464-25004-00 Clamp |
90464-25004-00 |
from US $1.98 |
||
