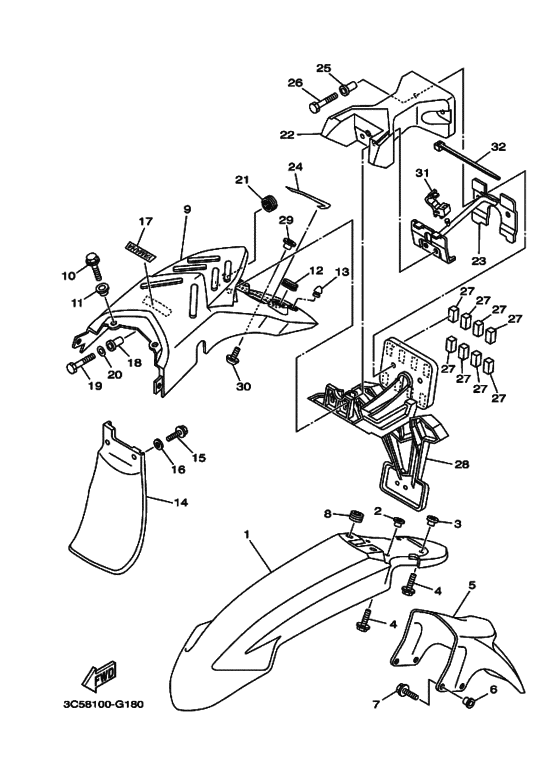

Fender Diagram Yamaha XT250 Serow
- Year
- 2008
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3C5A
- Sales region
- Canada (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3C5-21511-10-00 Fender, Front |
3C5-21511-10-00 |
from US $43.96 |
||
|
2
|
2
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
2
|
2
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
3
|
3
90387-06117-00 Collar |
90387-06117-00 |
from US $7.63 |
||
|
4
|
4
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
5
|
5
3C5-21556-00-00 Fender, Front 2 |
3C5-21556-00-00 |
from US $18.86 |
||
|
6
|
6
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
6
|
6
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
7
|
7
90119-06096-00 Bolt, With Washer |
90119-06096-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.81 |
||
|
8
|
8
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
8
|
8
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.50 |
||
|
9
|
9
3C5-21611-20-00 Fender, Rear |
3C5-21611-20-00 |
from US $56.50 |
||
|
10
|
10
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
11
|
11
903-87061-07-00 Collar |
903-87061-07-00 |
from US $4.43 |
||
|
12
|
12
3C5-2163A-00-00 Cover, Rear Fender 1 |
3C5-2163A-00-00 |
from US $1.56 |
||
|
13
|
13
4G0-21639-00-00 Damper 2 |
4G0-21639-00-00 |
from US $2.41 |
||
| replacement | |||||
|
13
|
13
903-38070-18-00 Plug |
903-38070-18-00 |
from US $4.82 |
||
|
14
|
14
5XT-21642-02-00 Guard, Flap |
5XT-21642-02-00 |
from US $8.30 |
||
|
15
|
15
95807-06016-00 Bolt, Flange |
95807-06016-00 |
US $1.07 |
||
| replacement | |||||
|
15
|
15
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
|
16
|
16
90201-06055-00 Washer, Plate |
90201-06055-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
90201-06049-00 Washer, Plate |
90201-06049-00 |
from US $1.70 |
||
|
17
|
17
5XC-2153E-10-00 Emblem, Yamaha |
5XC-2153E-10-00 |
from US $3.26 |
||
|
18
|
18
90387-0602Y-00 Collar |
90387-0602Y-00 |
from US $5.81 |
||
|
19
|
19
97007-06030-00 Bolt |
97007-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
20
|
20
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
21
|
21
4XV-83513-00-00 Damper |
4XV-83513-00-00 |
from US $2.08 |
||
|
22
|
22
3C5-84527-10-00 Damper |
3C5-84527-10-00 |
US $97.13 |
||
|
23
|
23
3C5-2161A-00-00 Bracket 3 |
3C5-2161A-00-00 |
US $158.63 |
||
|
24
|
24
3C5-21652-00-00 Protector |
3C5-21652-00-00 |
US $13.99 |
||
|
25
|
25
90387-06M21-00 Collar |
90387-06M21-00 |
from US $7.51 |
||
|
26
|
26
97007-06025-00 Bolt |
97007-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
26
|
26
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.52 |
||
|
27
|
27
4D9-28415-00-00 Damper 1 |
4D9-28415-00-00 |
from US $1.70 |
||
|
28
|
28
3C5-84551-00-00 Bracket, License |
3C5-84551-00-00 |
US $157 |
||
|
29
|
29
3C5-21634-00-00 Collar, 2 |
3C5-21634-00-00 |
US $10.69 |
||
|
30
|
30
901-11060-38-00 Bolt, Hex. Socket Button |
901-11060-38-00 |
from US $1.81 |
||
|
31
|
31
90464-05188-00 Clamp |
90464-05188-00 |
from US $1.81 |
||
|
32
|
32
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
