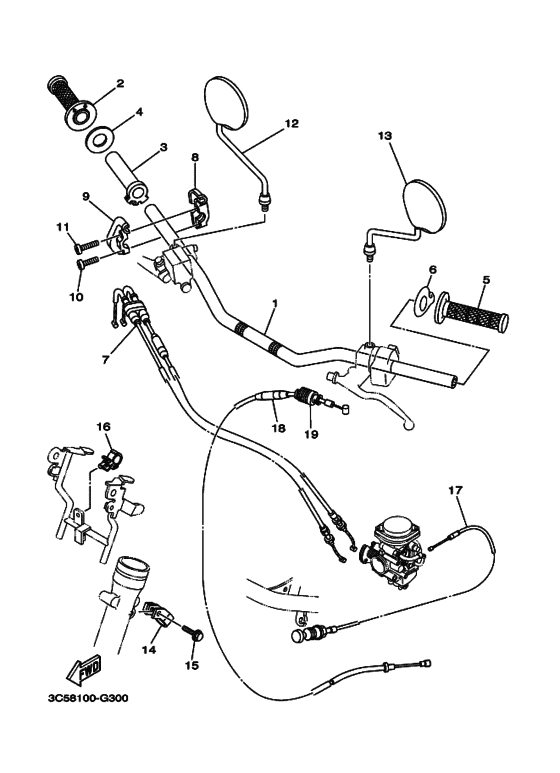

Steering handle & cable Diagram Yamaha XT250 Serow
- Year
- 2009
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 3C5F
- Sales region
- Canada (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- XT250
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
3C5-26111-00-00 Handlebar |
3C5-26111-00-00 |
from US $52.59 |
||
2
|
2
4GY-26242-00-00 Grip (Right) |
4GY-26242-00-00 |
from US $13.16 |
||
3
|
3
5BE-26243-00-00 Tube, Throttle Guide |
5BE-26243-00-00 |
from US $7.78 |
||
4
|
4
3Y1-26249-00-00 Ring, Leaf |
3Y1-26249-00-00 |
from US $2.84 |
||
5
|
5
4GY-26241-00-00 Grip |
4GY-26241-00-00 |
from US $13.16 |
||
6
|
6
4RR-26129-00-00 Washer |
4RR-26129-00-00 |
from US $6.77 |
||
7
|
7
3C5-26302-00-00 Throttle Cable Assy |
3C5-26302-00-00 |
from US $42.17 |
||
8
|
8
3LN-26281-01-00 Cap, Grip Upper |
3LN-26281-01-00 |
from US $28.27 |
||
9
|
9
3LN-26282-01-00 Cap, Grip Lower |
3LN-26282-01-00 |
from US $19.44 |
||
10
|
10
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
replacement | |||||
10
|
10
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.80 |
||
11
|
11
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.28 |
||
12
|
12
3Y1-26290-00-00 Back Mirror Assy (R.h) |
3Y1-26290-00-00 |
from US $18.16 |
||
13
|
13
3Y1-26290-10-00 Back Mirror Assy (L.h) |
3Y1-26290-10-00 |
from US $32.16 |
||
replacement | |||||
13
|
13
5Y1-26290-10-00 Back Mirror Assy (L.h) |
5Y1-26290-10-00 |
from US $33.51 |
||
14
|
14
3C5-25886-00-00 Holder, Brake Hose |
3C5-25886-00-00 |
from US $4.32 |
||
15
|
15
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.28 |
||
replacement | |||||
15
|
15
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $1.80 |
||
16
|
16
90464-16012-00 Clamp |
90464-16012-00 |
from US $1.65 |
||
17
|
17
5XT-26331-01-00 Cable, Starter 1 |
5XT-26331-01-00 |
from US $30.52 |
||
18
|
18
3C5-26335-00-00 Cable, clutch |
3C5-26335-00-00 |
from US $35.60 |
||
19
|
19
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $13.91 |
